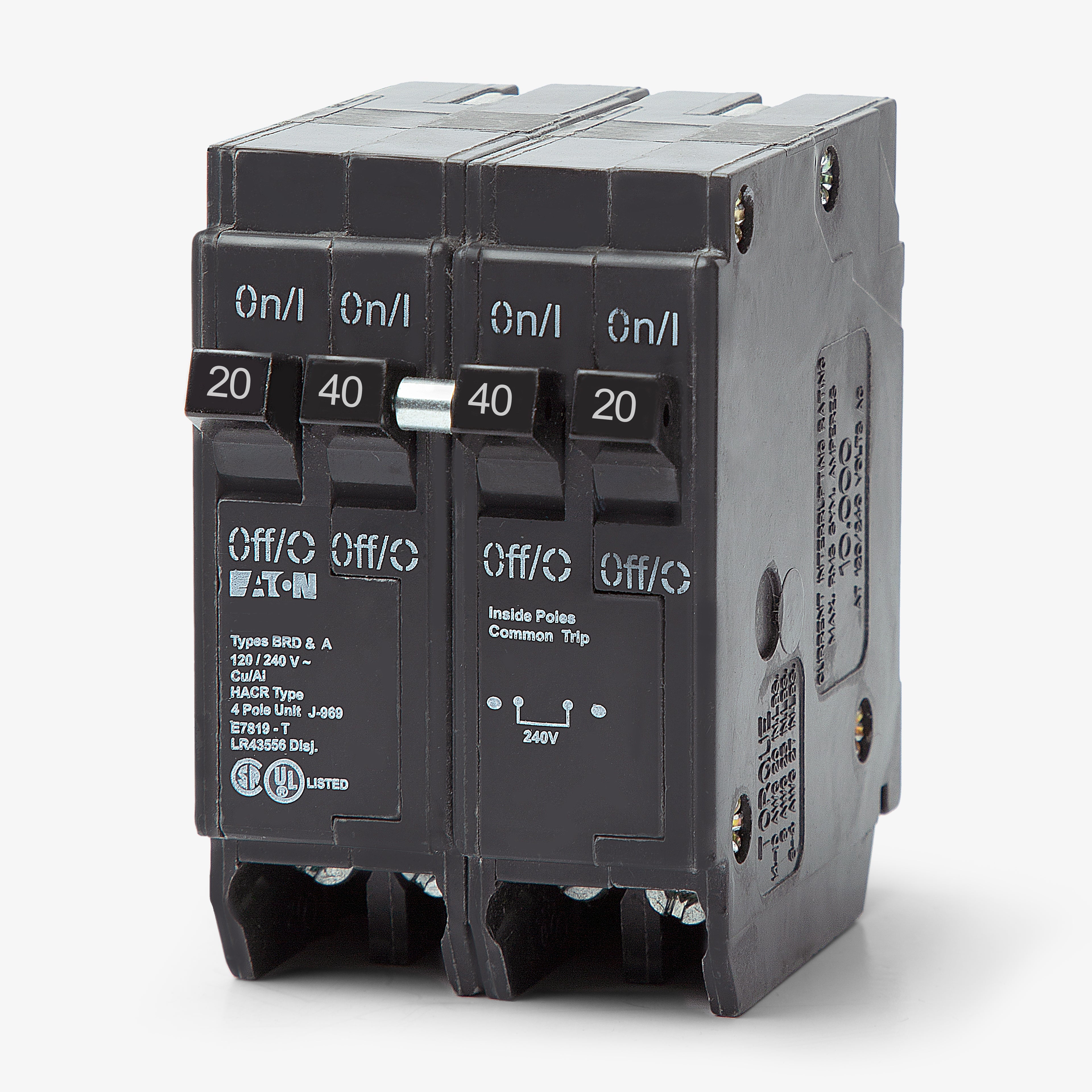

Eaton / Cutler-Hammer BQC220240 20/40A Quadplex Miniature Circuit Breaker
- 20/40A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC220240
20/40A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC220240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC220240 - 20/40A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC230240
30/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2402130
40/30/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC240230
30/40A Quadplex Miniature Circuit Breaker
Description
Built for residential and commercial applications, the Eaton BQC220240 is a thermal-magnetic quadplex breaker. It delivers one 20A and one 40A two-pole circuit, doubling the density of a standard installation. This plug-on unit installs into Eaton Type BR load centers, occupying only two standard one-inch panel spaces. Rated for 10 kAIC at 120/240VAC, it features common trip functionality for both circuits and includes a rejection tab (CTL) to ensure proper placement.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 20/40A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab (CTL) |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Rejection Tab, Common Trip |
Product FAQs
5 answersWhat type of load centers are compatible with the BQC220240?
This breaker is designed for use in Eaton Type BR load centers that accept CTL (Circuit Total Limiting) quadplex breakers. It requires two standard 1-inch panel spaces.
How are the 20A and 40A circuits configured on this quadplex breaker?
The BQC220240 provides two independent two-pole circuits. The 20A circuit is located on the outer poles, while the 40A circuit is located on the center poles.
Do the 20A and 40A circuits feature a common trip?
Yes, both the 20A outer circuit and the 40A center circuit feature a common trip mechanism. If an overload or short circuit occurs on one leg of either two-pole circuit, both legs of that specific circuit will trip simultaneously.
Does the BQC220240 include a rejection clip?
Yes, this is a CTL (Circuit Total Limiting) breaker and includes a rejection tab. It can only be installed in panel busbar slots specifically notched to accept tandem or quadplex breakers.
Can the BQC220240 be used in older Bryant or Westinghouse panels?
Yes, Eaton Type BR breakers are UL listed to replace older Bryant, Westinghouse, and Challenger breakers of the same physical style, provided the specific panel is rated to accept CTL quadplex breakers.
