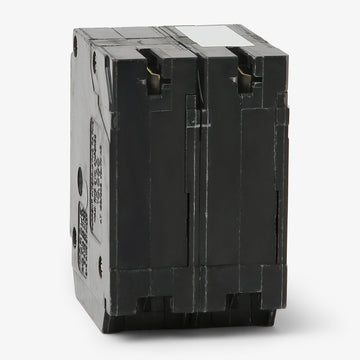

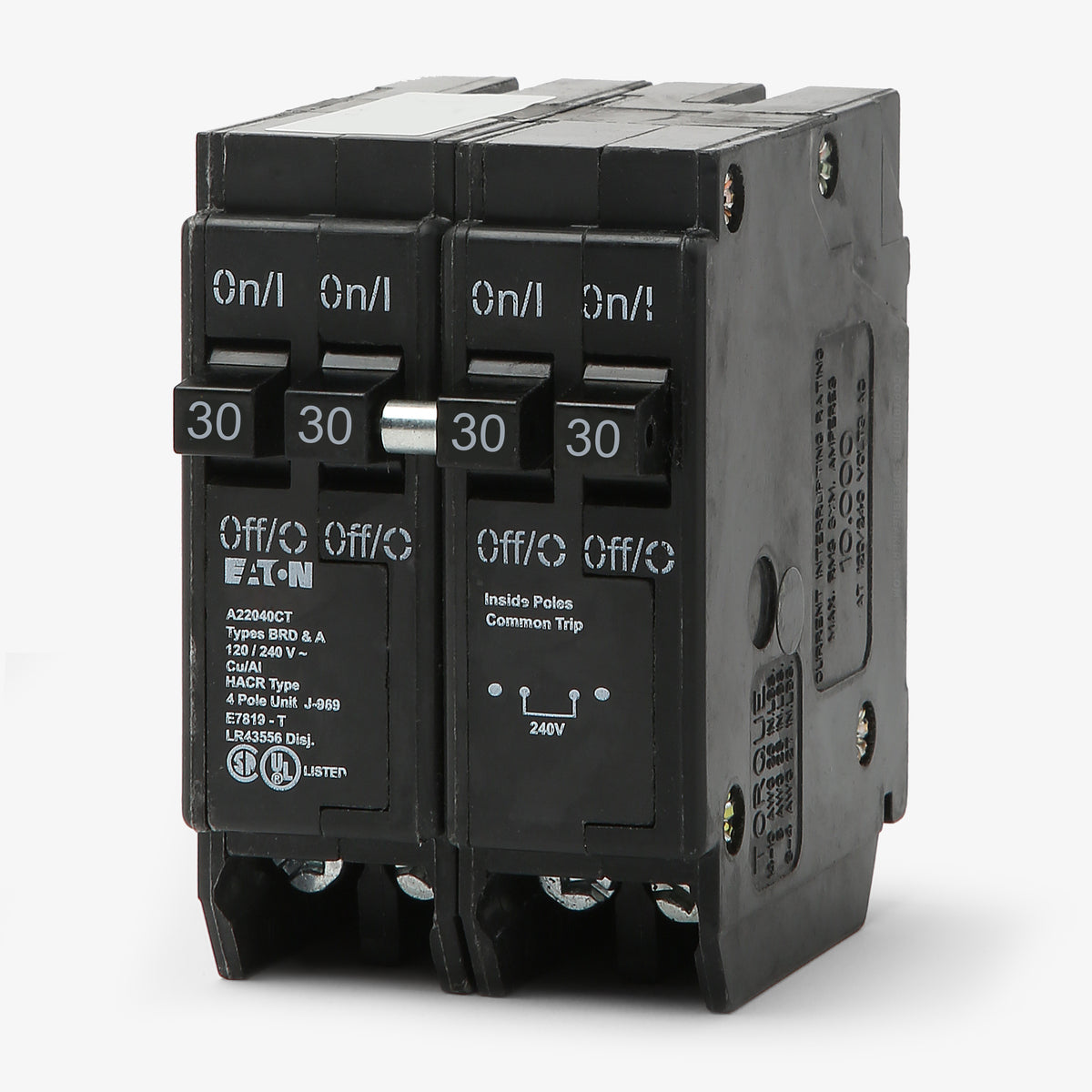

Eaton / Cutler-Hammer BQC2302130 30/30A Quadplex Miniature Circuit Breaker
- 30/30A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC2302130
30/30A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC2302130
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC2302130 - 30/30A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC2152130
15/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC215230
15/30A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC220230
20/30A Quadplex Miniature Circuit Breaker
Description
Part of Eaton's BR family, the BQC2302130 quadplex miniature circuit breaker maximizes capacity in residential and commercial applications. It delivers one 30A 2-pole circuit with a common trip and two 30A 1-pole circuits with independent trips, all within a compact two-inch footprint. Engineered for plug-on installation, this Class CTL breaker requires notched bus stabs and fits seamlessly into compatible Eaton Type BR load centers. Rated at 10 kAIC for 120/240V systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 30/30A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Rejection Tab |
Product FAQs
8 answersWhat panels are compatible with the BQC2302130?
This breaker is designed for use in Eaton Type BR load centers. It features a CTL (Circuit Total Limitation) rejection tab, meaning it can only be installed in notched bus stabs of compatible CTL panels. It is also an approved replacement for legacy Westinghouse, Challenger, and Bryant panels that accept Type BR breakers.
How many panel spaces does the BQC2302130 require?
As a quadplex breaker, it provides four poles of protection but only requires two standard 1-inch spaces in your load center. This allows you to add circuits to a crowded enclosure without upgrading the panel.
What is the difference between Eaton BQ and BQC quadplex breakers?
The BQ series features independent trip functions, meaning each pole trips independently. The BQC series, including the BQC2302130, features a common trip mechanism where the connected poles will trip synchronously if an overload or short circuit occurs.
What conductor materials and wire sizes are accepted by the BQC2302130?

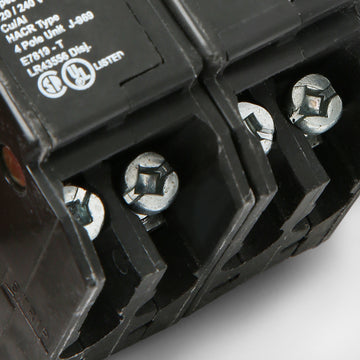

The box lug terminals on this breaker accept both copper and aluminum (Cu/Al) conductors, accommodating wire sizes from 14 AWG to 4 AWG.
Does this breaker include a CTL rejection tab?

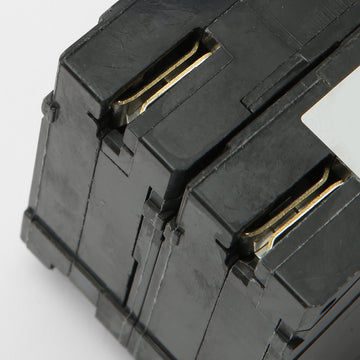

Yes, the BQC2302130 is a Class CTL breaker. It includes a built-in rejection tab on the bus connection side to prevent installation in non-CTL load centers or panel slots not designed for tandem or quadplex breakers.
Is the BQC2302130 HACR rated?
Yes, all Eaton Type BQ and BQC quadplex circuit breakers carry a listing for HACR (Heating, Air Conditioning, and Refrigeration) applications, making them suitable for HVAC equipment protection.
Can I use this breaker in a non-CTL load center?
No, CTL breakers like the BQC2302130 are not compatible with non-CTL load centers. The rejection tab prevents it from seating properly on a non-notched bus bar.
Are Eaton and Cutler-Hammer BQC2302130 breakers the same?
Yes. Eaton acquired Cutler-Hammer, and the BQC2302130 may be branded under either name. The physical breaker, specifications, and panel compatibility remain identical regardless of the brand printed on the label.
