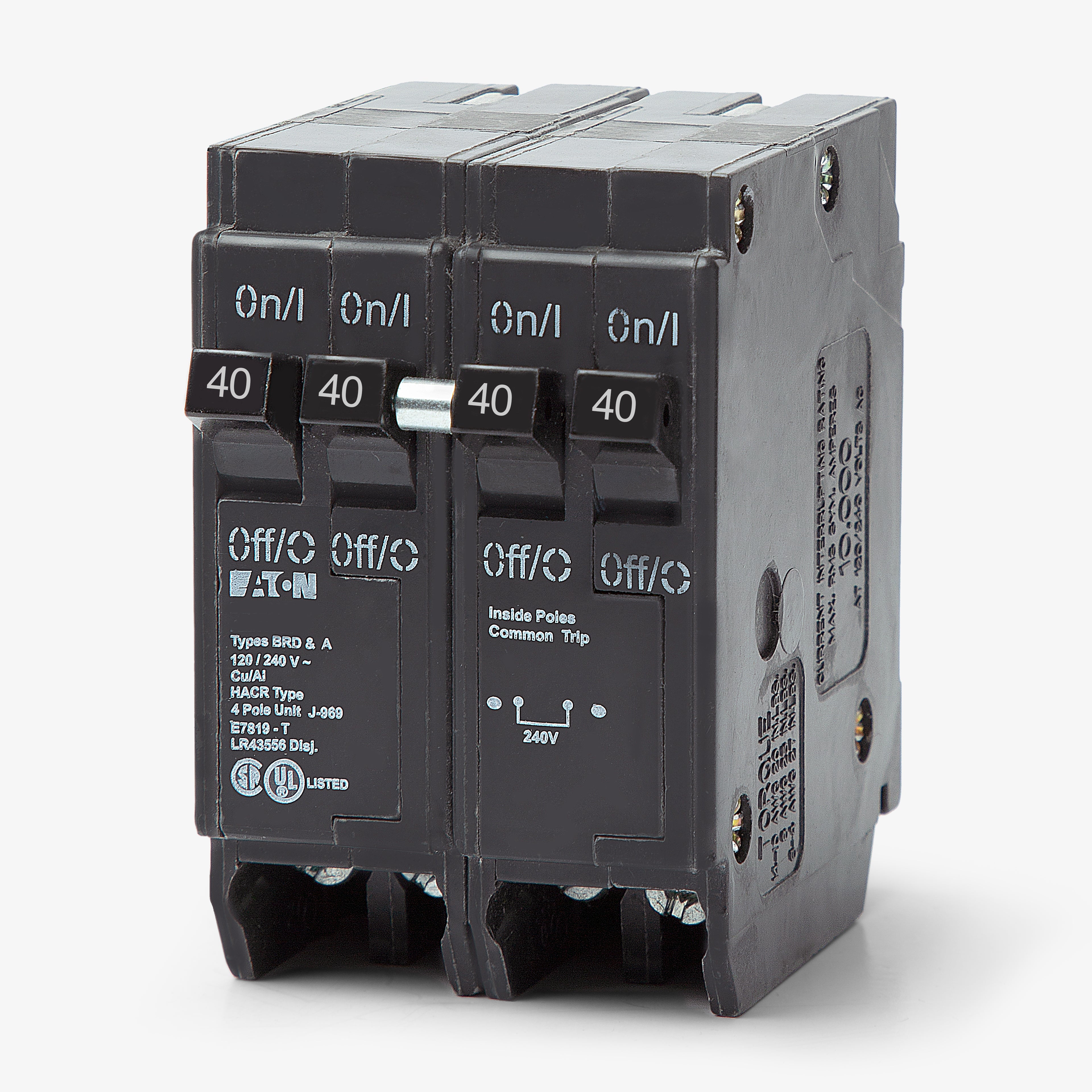

Eaton / Cutler-Hammer BQC240240 40/40A Quadplex Miniature Circuit Breaker
- 40/40A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BQC240240
40/40A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BQC240240
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BQC240240 - 40/40A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBQC220240
20/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC230240
30/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBQC2402130
40/30/30A Quadplex Miniature Circuit Breaker
Description
Supplying dual 40A 240V circuits, this four-pole quadplex breaker condenses multiple branch circuits into a two-pole footprint. The Eaton BQC240240 is built for residential power distribution. Designed for seamless integration, the unit mounts into Eaton Type BR load centers. The integrated CTL rejection tab restricts installation to appropriate panel slots. Featuring a 10kAIC interrupt rating, the breaker incorporates HACR-rated thermal-magnetic protection and common trip mechanisms.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BQC |
| Amperage | 40/40A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Frame Type | BR |
|---|---|

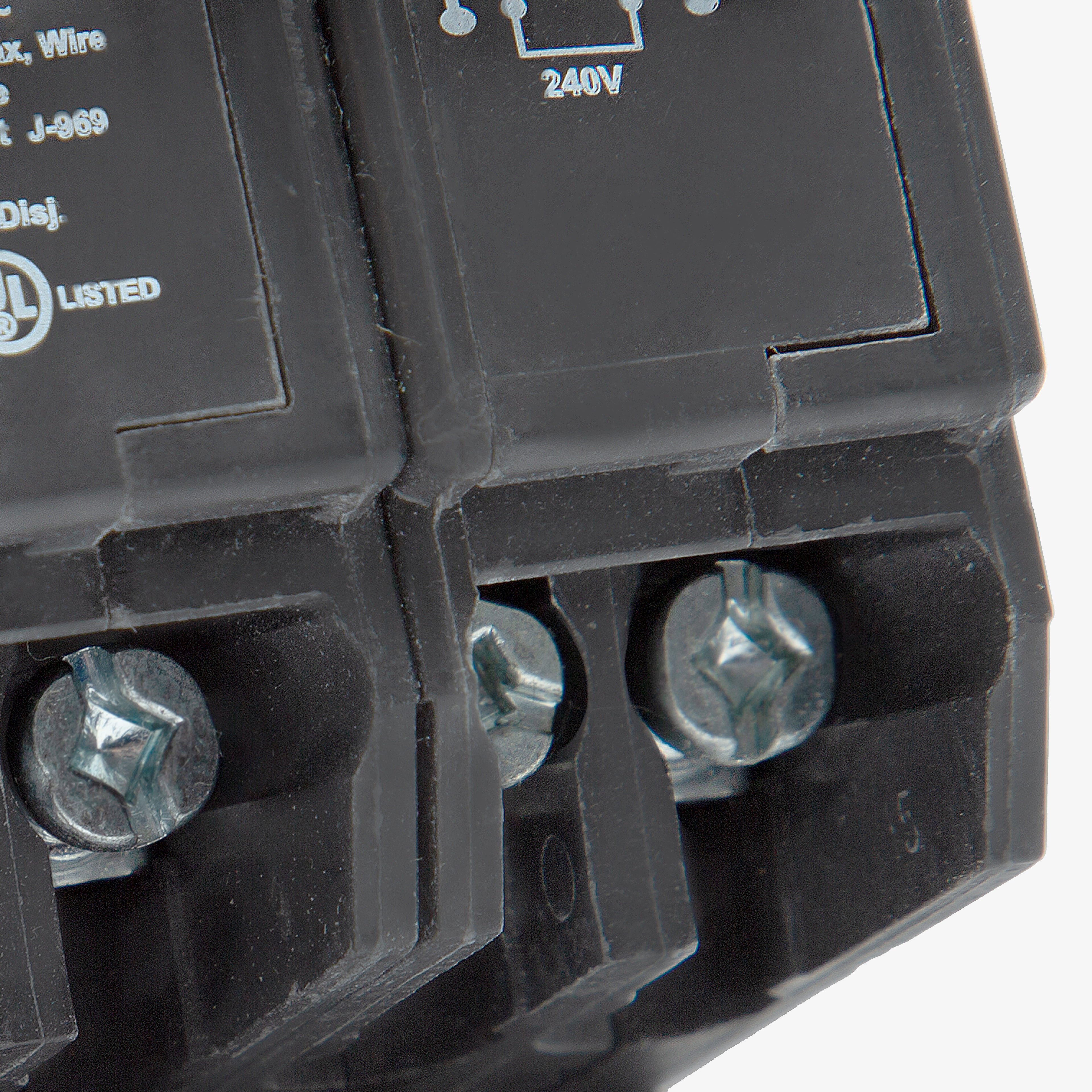

| Terminal Type | Box Lugs |
| For Use With | Eaton Type BR Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Rejection Tab |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | HACR, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Common Trip, HACR Rated, Rejection Tab |
Product FAQs
5 answersCan the BQC240240 be used to replace older Westinghouse or Bryant quad breakers?
Yes. Eaton acquired the electrical distribution businesses of Westinghouse, Challenger, and Bryant. The Eaton Type BR series is the official, UL-listed replacement for legacy panels that accept Type BR breakers.
Does the BQC240240 have a CTL rejection tab?

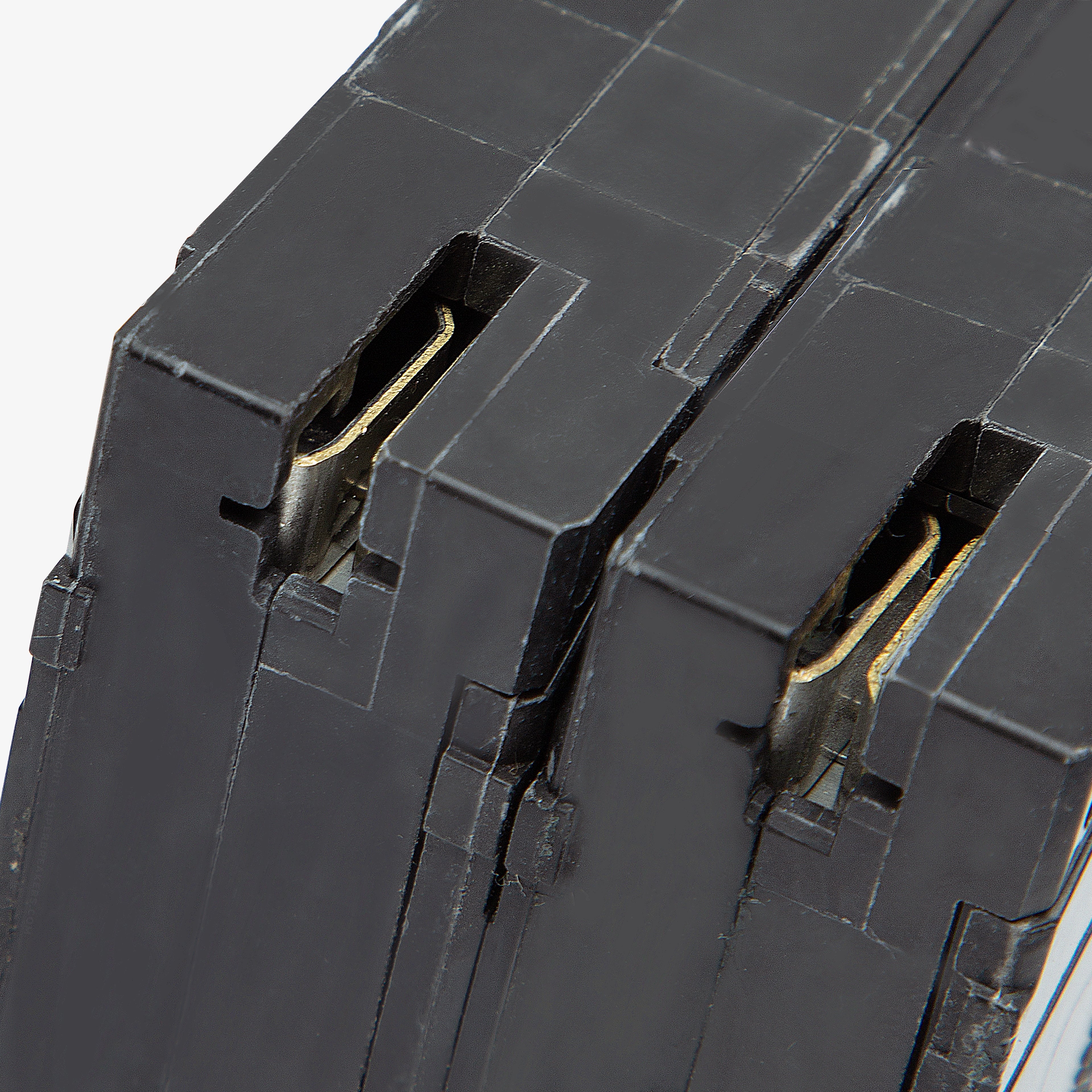

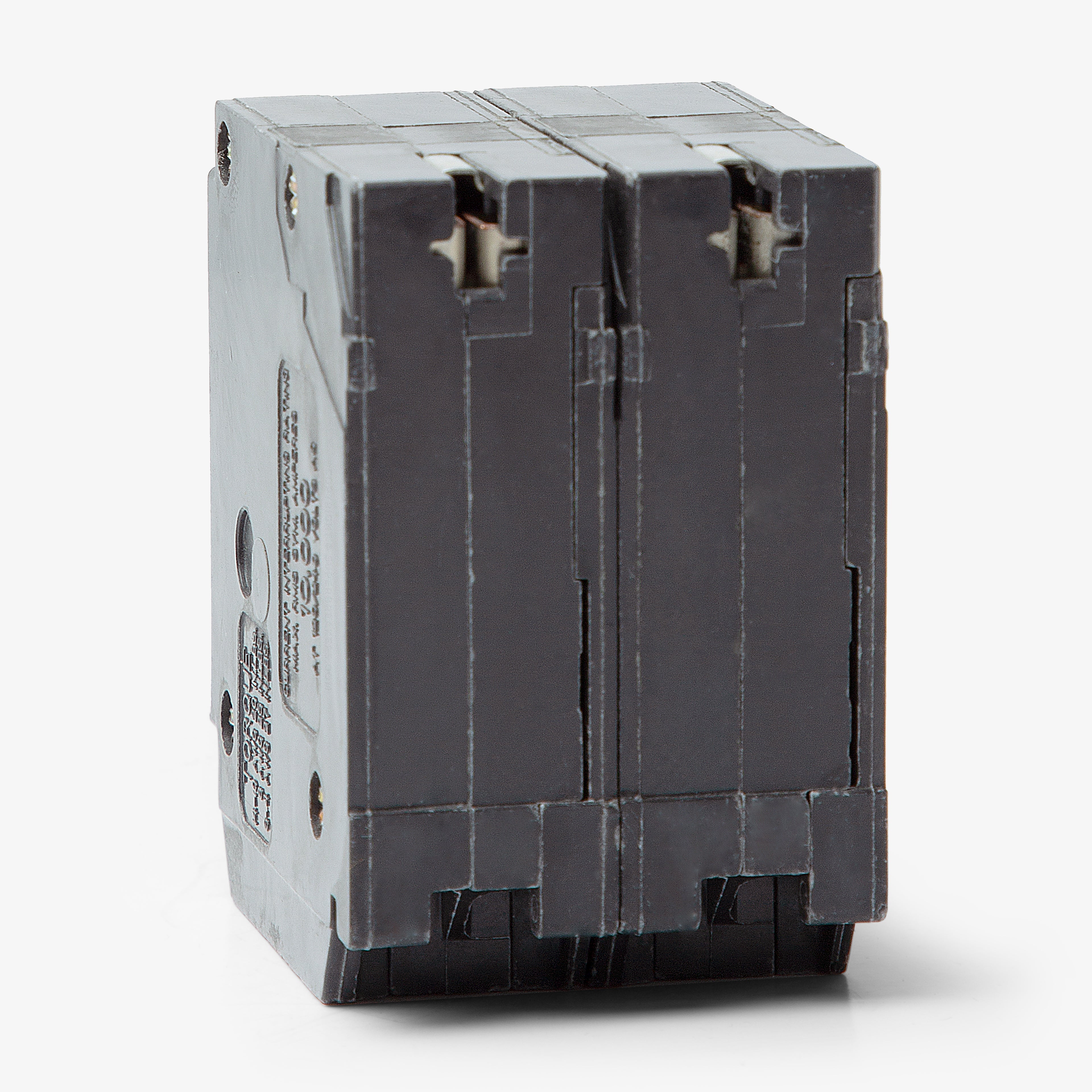

Yes. This is a Circuit Total Limitation (CTL) breaker equipped with a rejection tab on the bus connection side. It can only be installed in load centers with notched bus stabs designed to accept tandem or quadplex breakers.
Is the BQC240240 HACR rated?
Yes. All Eaton Type BQC quadplex circuit breakers are HACR rated, making them suitable for use with heating, air conditioning, and refrigeration equipment.
How do the trip mechanisms operate on the BQC240240?
The BQC series features a common trip design. The two inner poles are linked to trip together, and the two outer poles are linked to trip together. This provides two separate 240V circuits in a single breaker footprint.
Does this breaker provide GFCI or AFCI protection?
No. The BQC240240 is a standard thermal-magnetic circuit breaker. It does not include ground fault (GFCI) or arc fault (AFCI) protection circuitry.
