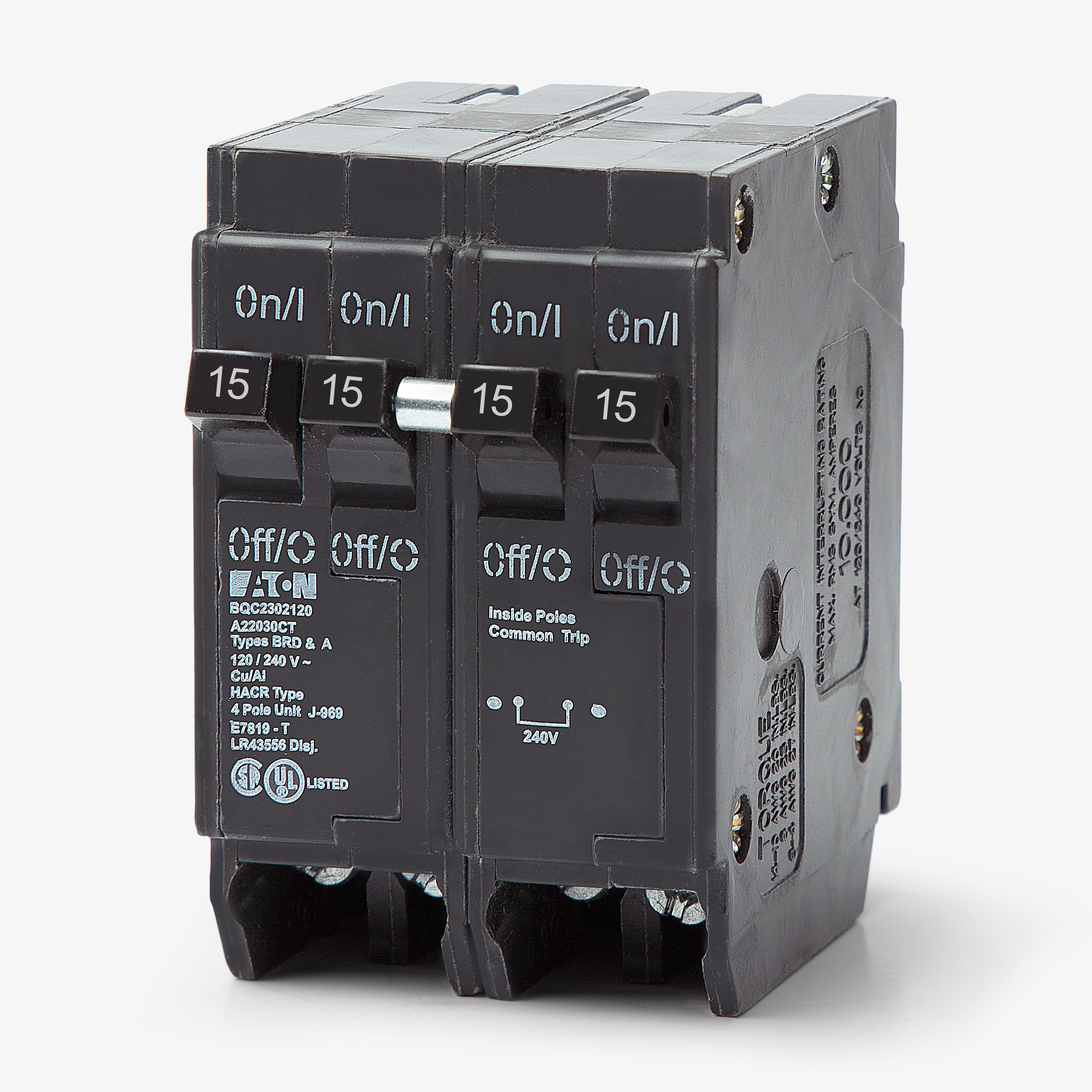

Eaton / Cutler-Hammer BRD2152115 15/15A Quadplex Miniature Circuit Breaker
- 15/15A
- 4 Pole
- Plug-On
Eaton / Cutler-Hammer
BRD2152115
15/15A Quadplex Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRD2152115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRD2152115 - 15/15A Quadplex Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBRD2302115
30/15A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBRD220240
20/40A Quadplex Miniature Circuit Breaker
Eaton / Cutler-HammerBRD230240
30/40A Quadplex Miniature Circuit Breaker
Description
Engineered to save space in crowded panels, the Eaton BRD2152115 is a 15A quadplex breaker that fits four poles into a standard two-pole footprint. It features an independent trip for the outer single-pole circuits and a common trip for the inner double-pole circuit. This non-CTL plug-on breaker is an excellent drop-in replacement for legacy DNPL151515 and BQ2152115 models. Rated for 10 kAIC at 120/240V, it mounts into Eaton, Cutler-Hammer, and Bryant Type BR load centers.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRD |
| Amperage | 15/15A |
| Poles | 4 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Type BR Load Centers |
| Wire Gauge | 14-4 AWG Cu/Al |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Special Classification | Quadplex |
|---|---|
| Available Options | Padlock Attachment |
| Standards | Federal Specification W-C375, UL 489 |
| Approval | UL |
| Temp Rating | 60 to 75C |
Product FAQs
4 answersWhat legacy circuit breakers can the BRD2152115 replace?
The Eaton BRD2152115 serves as a direct drop-in replacement for older Cutler-Hammer, Westinghouse, and Bryant quadplex breakers, specifically replacing legacy catalog numbers DNPL151515 and BQ2152115.
Which load centers accept this quadplex breaker?
It is engineered for Eaton Type BR load centers. It is also backward compatible with legacy Cutler-Hammer, Bryant, Westinghouse, Challenger, and Novaline panels that utilize Type BR plug-on breakers.
How are the 15A circuits configured on this quadplex breaker?
This quad breaker provides four 15A poles in a standard two-pole footprint. It features an independent trip for the two outer 1-pole circuits and a common trip for the inner 2-pole circuit.
Is the BRD2152115 a CTL or non-CTL breaker?
This is a non-CTL (Circuit Total Limiting) breaker. It does not include a rejection clip, making it suitable for older legacy load centers that require non-CTL breakers to add circuits.
