Eaton / Cutler-Hammer BRDC230230 - 30/30A Quadplex Miniature Circuit Breaker

New

$110.20 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

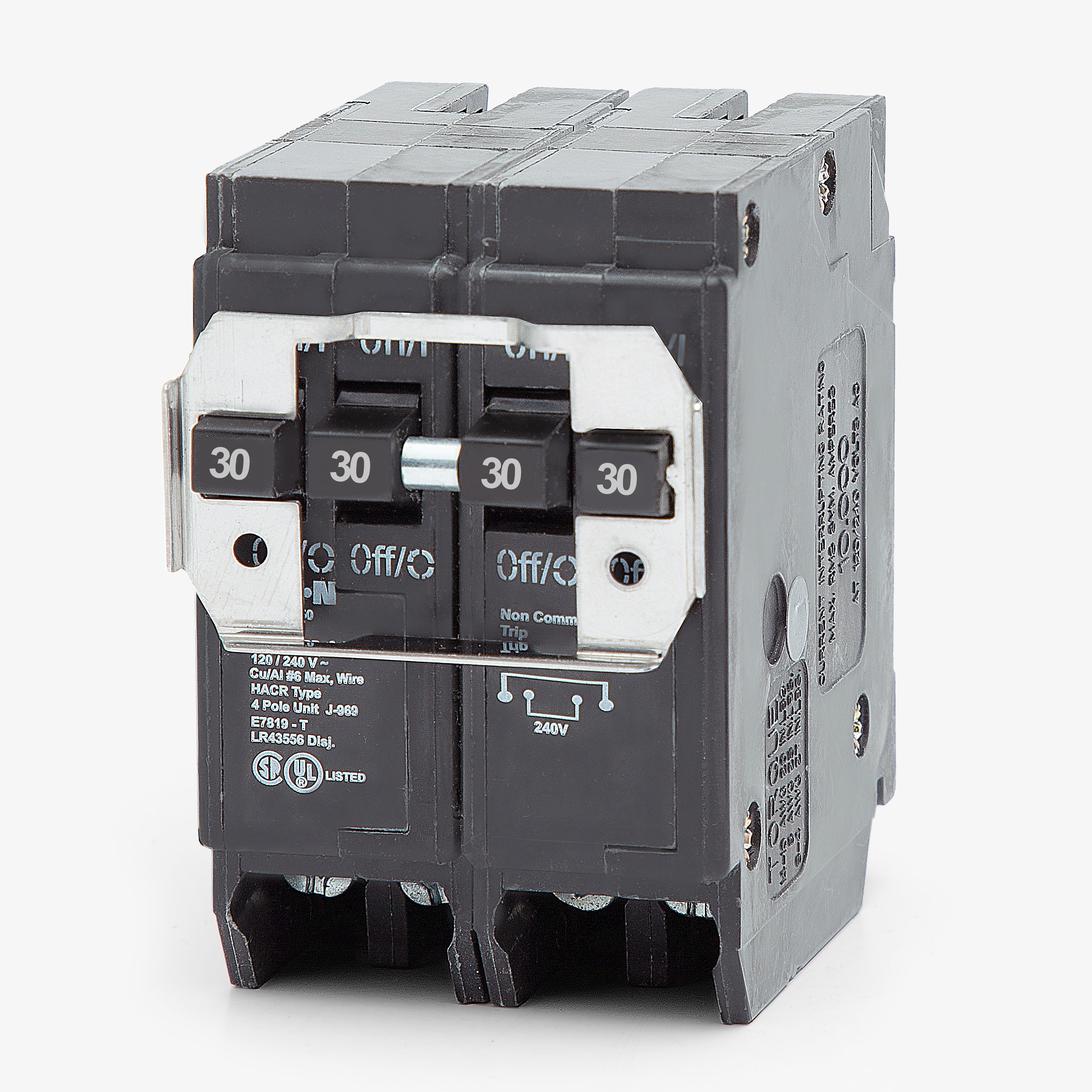

Part of Eaton's space-saving BR line, the BRDC230230 is a 30/30A quadplex breaker that supplies two independent 240V loads from a single two-pole footprint. This non-CTL model does not feature a rejection clip, making it compatible with older Eaton and Cutler-Hammer BR series load centers. It serves as the exact substitute for the obsolete DNPL230230. Equipped with thermal-magnetic trip technology, it provides a 10kAIC rating and utilizes common trip mechanisms on all pairs.

Specifications

Brand Eaton / Cutler-Hammer
Series BRDC
Amperage 30/30A
Voltage 120/240VAC
Poles 4
Phase 1
AIC Rating 10kA @ 120/240VAC
Special Classification Quadplex
Mounting Style Plug-On
Terminal Type Box Lugs
For Use With Eaton BR Load Centers
Trip Technology Thermal Magnetic
Trip Function Code LI
Trip Function Long-Time, Instantaneous
Trip Adjustability Fixed
Wire Gauge 14-4 AWG Cu/Al
Max Wire 4 AWG
Min Wire 14 AWG
Available Options Padlock Attachment
Standards Federal Specification W-C375, UL 489
Approval UL
Temp Rating 60 to 75C
Construction Features Common Trip, HACR Rated, Quick-Make/Quick-Break
