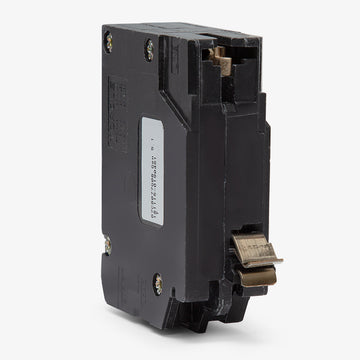

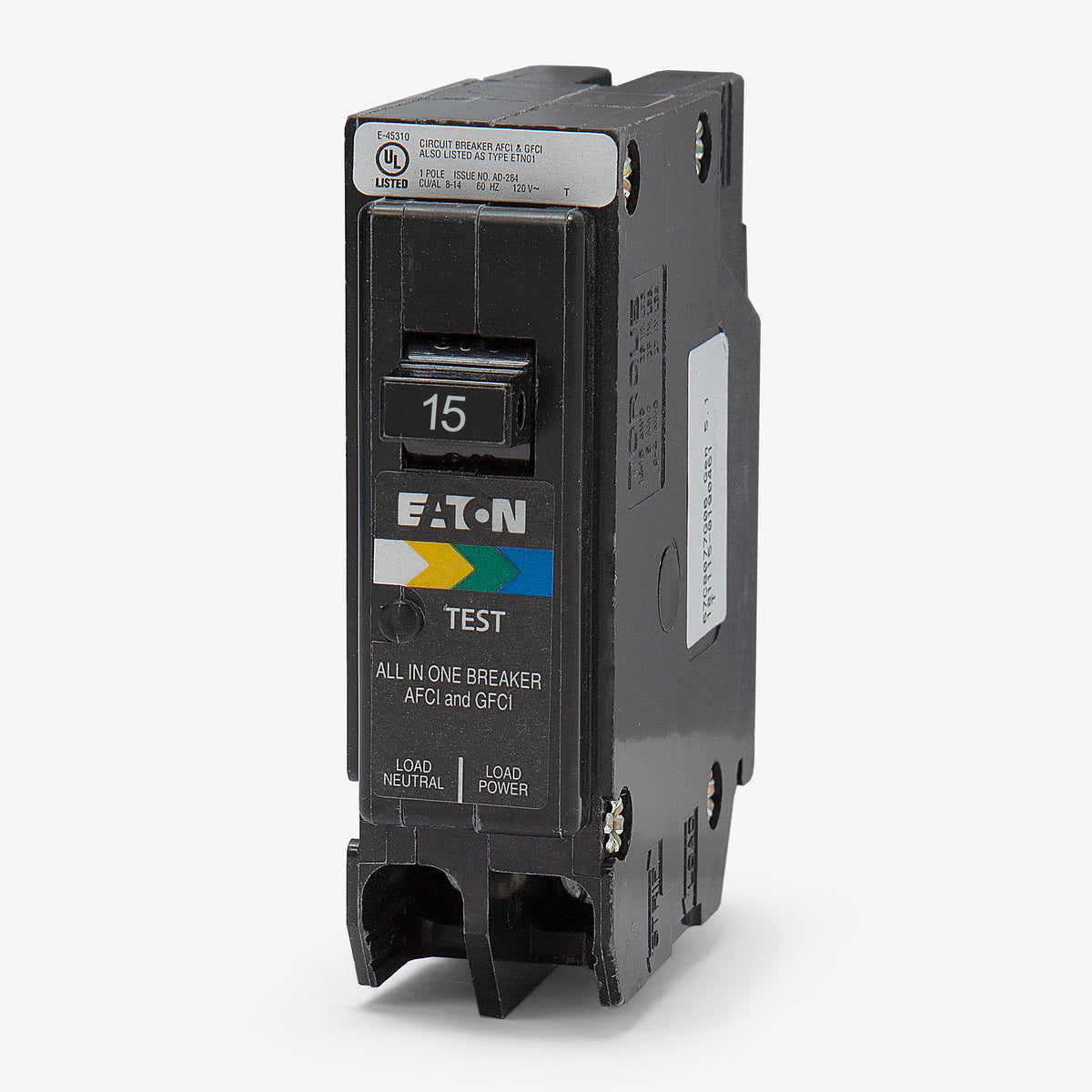

Eaton / Cutler-Hammer BRPAFGF115 Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRPAFGF115
Dual Function Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRPAFGF115
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRPAFGF115 - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBRN115A1CS
15A Dual Function Miniature Circuit Breaker
15A Dual Function Miniature Circuit Breaker
Description
The BRPAFGF115 is a dual-function miniature circuit breaker engineered for residential applications requiring both arc-fault and ground-fault protection. Rated at 15A and 120VAC, it provides comprehensive safety in compliance with modern NEC standards. Mounts into Eaton Type BR plug-on neutral load centers, eliminating the need for a pigtail connection. It serves as a predecessor to the BRP115DF model. Equipped with an LED trip indicator, this 10kAIC unit ensures reliable fault diagnostics.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | BRPAFGF115 |
| Series | BRPAFGF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Type BR Plug-on Neutral Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 1699, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
6 answersCan I install the BRPAFGF115 in an older Cutler-Hammer BR panel?
It depends on the panel. The BRPAFGF115 is a Plug-on Neutral breaker and requires a modern Eaton Type BR Plug-on Neutral load center. It cannot be installed in legacy panels that require a pigtail connection.
What is the difference between the BRPAFGF115 and the BRP115DF?
There is no functional difference. Eaton updated their catalog numbers, replacing the AFGF (Arc Fault/Ground Fault) designation with DF (Dual Function). The BRP115DF is the current catalog number for this 15A plug-on neutral breaker.
What type of protection does this dual function breaker provide?
It combines both Arc Fault Circuit Interrupter (AFCI) and Ground Fault Circuit Interrupter (GFCI) protection into one device. This satisfies NEC requirements for circuits needing both types of protection, such as those in kitchens and laundry areas.

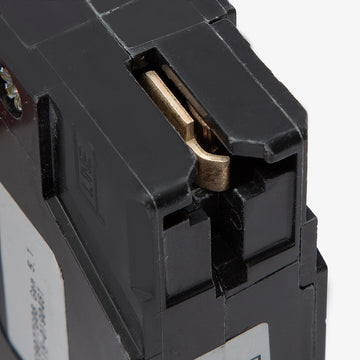

Does this breaker require a neutral pigtail connection?
No. The BRPAFGF115 features a plug-on neutral design. It clips directly onto the neutral bar of a compatible load center, which speeds up installation and eliminates the need to route a separate pigtail wire.
How do I troubleshoot a trip on the BRPAFGF115?
This breaker includes built-in LED trip indicators. When a fault occurs, the LED displays a specific trip code to help you determine if the circuit tripped due to an arc fault, a ground fault, or a standard overload.
What do the LIG trip functions stand for on this breaker?
The LIG designation means this thermal-magnetic breaker includes Long-Time (L) protection for mild overloads, Instantaneous (I) protection for severe short circuits, and Ground-Fault (G) protection.
