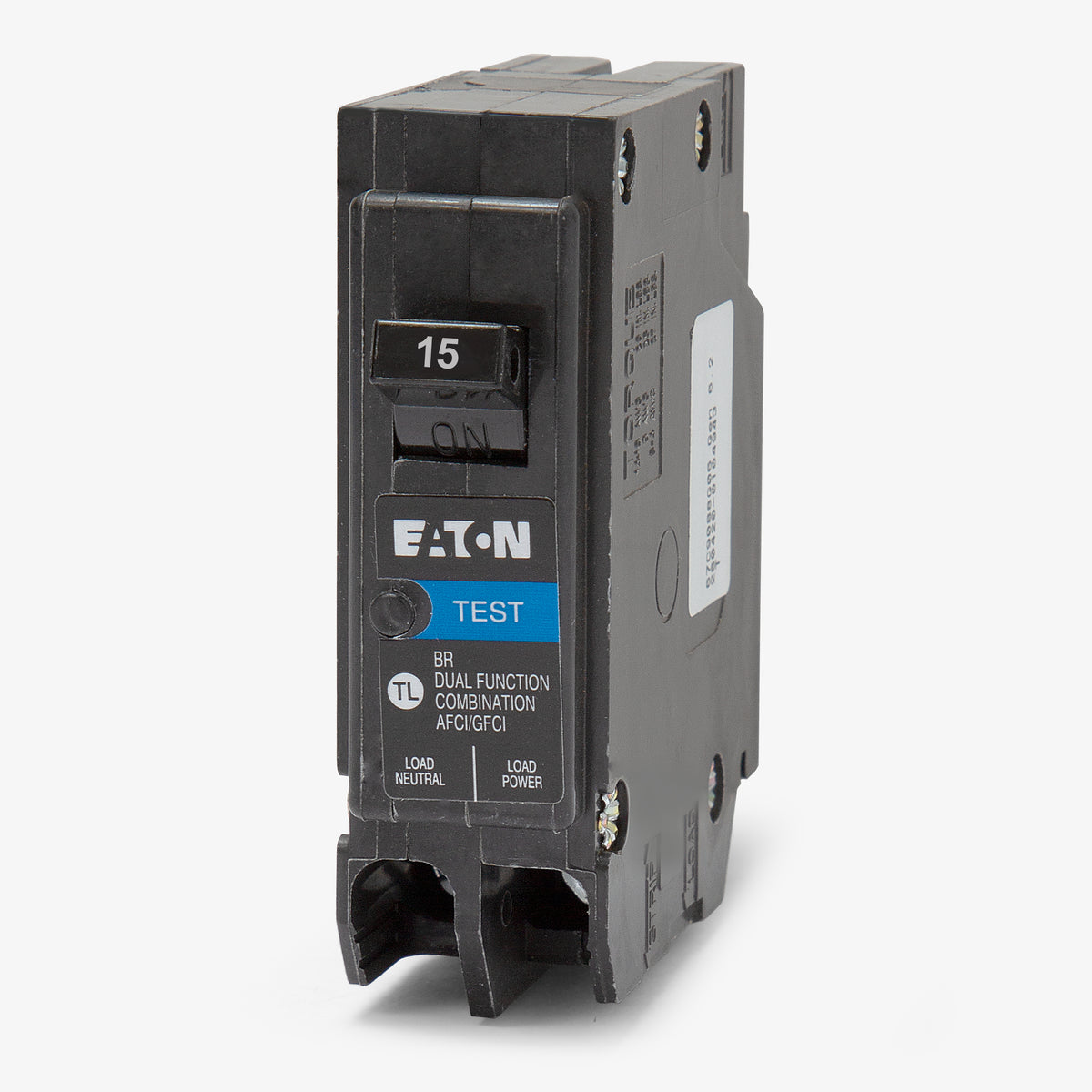

Eaton / Cutler-Hammer BRP115DF Dual Function Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
BRP115DF
Dual Function Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
BRP115DF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer BRP115DF - 15A Dual Function Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerBRPAFGF120
20A Dual Function Miniature Circuit Breaker
Eaton / Cutler-HammerBRN115A1CS
15A Dual Function Miniature Circuit Breaker
15A Dual Function Miniature Circuit Breaker
Description

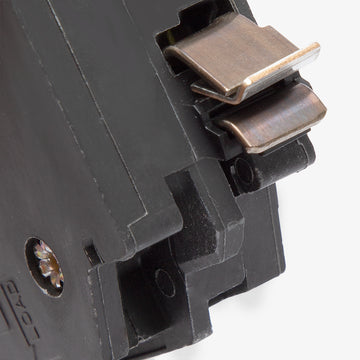

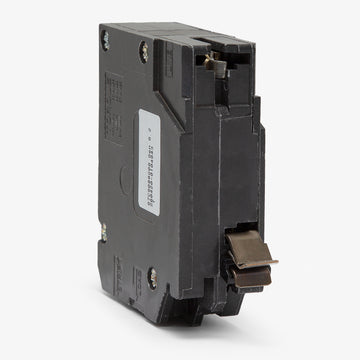

Engineered for residential applications, the BRP115DF delivers 15A of comprehensive circuit defense. It provides combination arc-fault and ground-fault protection to meet NEC requirements. This unit mounts into Eaton BR plug-on neutral load centers. The pigtail-free design reduces gutter clutter and speeds up installation in compatible panels. Rated at 10kAIC, it utilizes thermal-magnetic trip technology. Built-in LED diagnostics and a self-test function help identify trip causes.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | BRP |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Frame Type | BR |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton BR Plug-On Neutral Load Centers |
| Wire Gauge | 14-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | Dual Function (AFCI/GFCI) |
|---|---|
| Available Options | Padlock Attachment |
| Standards | UL 1699, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 40C |
Product FAQs
6 answersWill the BRP115DF work in any Eaton BR load center?
No. This breaker features a plug-on neutral design and does not have a neutral pigtail wire. It must be installed in an Eaton BR Plug-On Neutral load center.
What is the pigtail alternative to the BRP115DF?
If your panel does not support plug-on neutral breakers, you will need to use catalog number BRN115DF. The BRN115DF provides the same 15A dual function protection but includes a pigtail wire for connection to the neutral bar.
What is the difference between dual function and standard AFCI breakers?
A standard AFCI breaker only protects against arcing faults that can cause electrical fires. A dual function breaker, like the BRP115DF, includes both Combination Arc Fault Circuit Interrupter (CAFCI) and Ground Fault Circuit Interrupter (GFCI) protection, safeguarding against both electrical fires and shock hazards.
How do you identify the cause of a trip on this dual function breaker?
When the breaker is reset after a trip, the red diagnostic LED will blink a repeating pattern between 1 and 6 times to indicate the specific fault code. This sequence will repeat 30 times to help you troubleshoot the circuit.
Is a constantly illuminated red LED on the breaker a sign of failure?
No. A constantly illuminated red LED on Eaton dual function breakers is a known variation in the electronic firmware and is strictly cosmetic. The breaker will still function safely, and the diagnostic blink codes remain operational if a trip occurs.
Can this BR series breaker be installed in a Cutler-Hammer CH load center?
No. Eaton BR breakers have a 1 inch per pole footprint. They are not physically compatible with CH series load centers, which require 3/4 inch wide breakers.
