Eaton / Cutler-Hammer CCH3100 Molded Case Circuit Breaker
- 100A
- 3 Pole
- Bolt-On
Eaton / Cutler-Hammer
CCH3100
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CCH3100
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer CCH3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Quantity
Eaton / Cutler-Hammer CCH3100 - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CCH3100 |
| Series | CCH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, Commercial Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, High Interrupting Capacity, HACR Rated |
Quantity
Eaton / Cutler-Hammer CCH3100 - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CCH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, Commercial Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, High Interrupting Capacity, HACR Rated |
Similar Items

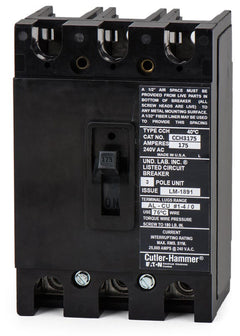

175A 3 Pole Molded Case Circuit Breaker

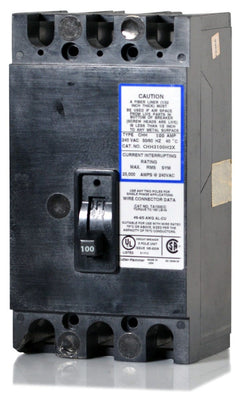

Eaton / Cutler-HammerCHH3100H2X
100A 3 Pole Molded Case Circuit Breaker

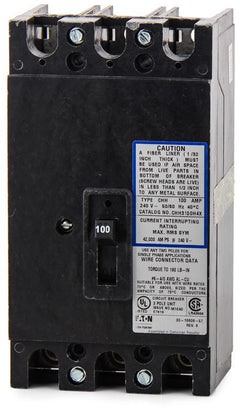

Eaton / Cutler-HammerCHH3100H4X
100A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial and residential power distribution, this 100A molded case circuit breaker offers reliable overcurrent protection. The 3-pole device utilizes fixed thermal-magnetic trip technology to safeguard electrical systems. Designed as a tenant main, the bolt-on breaker fits Type ECC unit enclosures and commercial meter stacks. It accommodates 2/0 AWG to 300 kcmil wire. Note that the CVH3100X serves as its replacement. Rated at 25kAIC at 240VAC, it is fully HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CCH |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Type ECC Unit Enclosures, Commercial Meter Stacks |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, High Interrupting Capacity, HACR Rated |
Product FAQs
6 answersWhat types of equipment are compatible with the CCH3100 breaker?
This CC-frame breaker is specifically designed for installation in Eaton Type ECC unit enclosures and commercial meter stacks. It is not intended for standard residential load centers.
What are the acceptable wire sizes for the terminals on this breaker?
The factory lugs on the CCH3100 accommodate copper or aluminum conductors ranging from 2/0 AWG up to 300 kcmil. Ensure proper torque specifications are followed during installation.
Can the CCH3100 be used in DC voltage systems?
No, this circuit breaker is strictly rated for alternating current (AC) systems up to 240V. It is not listed or rated for direct current (DC) applications.
Is the trip unit on the CCH3100 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous trip settings are factory calibrated and cannot be modified in the field.
Does this breaker include ground fault or arc fault protection?
No, the CCH3100 is a standard thermal-magnetic circuit breaker. It provides basic overload and short-circuit protection but does not feature GFCI or AFCI circuitry.
Will this replace an older Cutler-Hammer CCH3100 breaker?
Yes, Eaton acquired Cutler-Hammer, and their product lines are fully integrated. An Eaton CCH3100 is the exact direct replacement for a legacy Cutler-Hammer breaker with the same catalog number.
