Eaton / Cutler-Hammer CCVH2125 Molded Case Circuit Breaker
- 125A
- 2 Pole
- Unit Mount
Eaton / Cutler-Hammer
CCVH2125
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CCVH2125
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

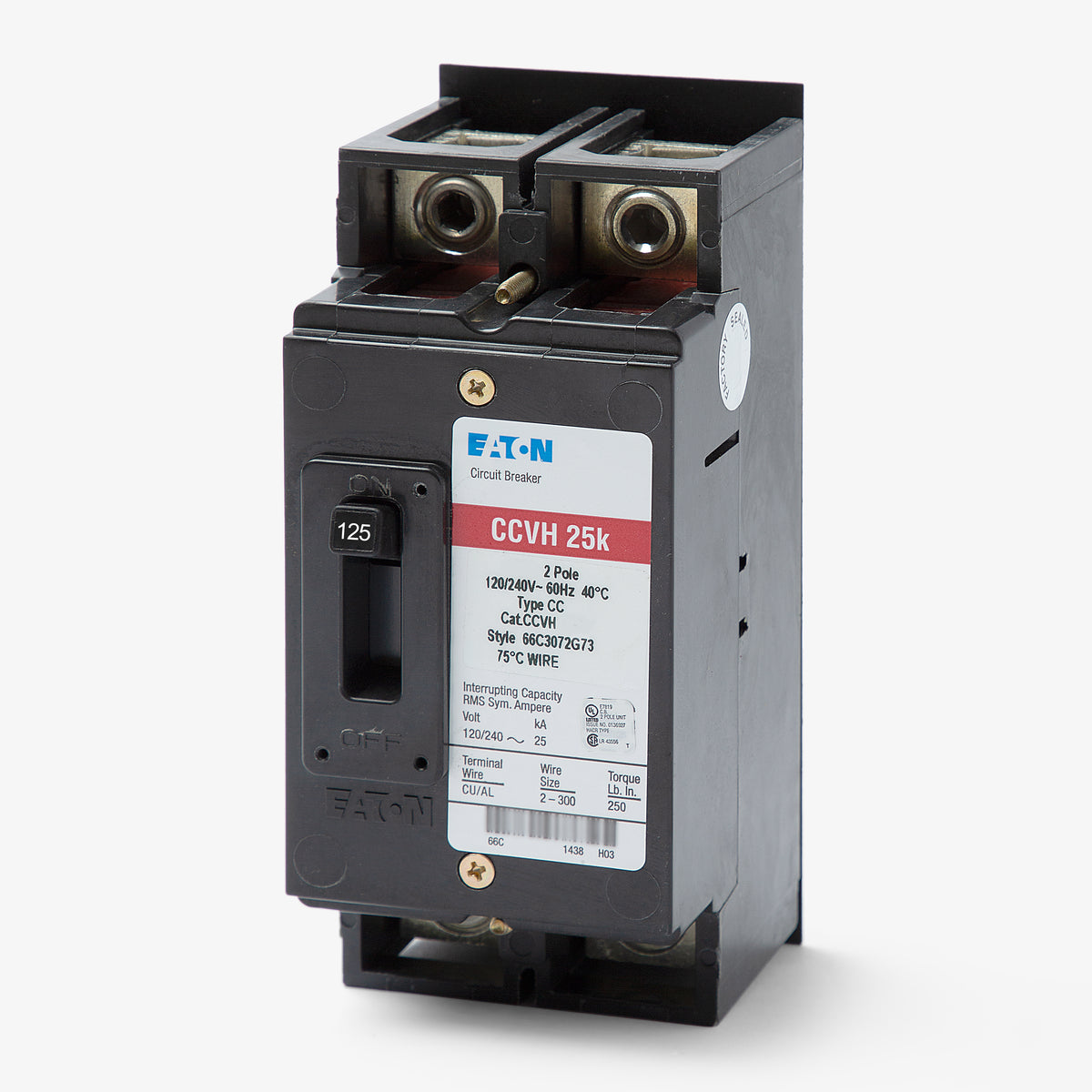

Eaton / Cutler-Hammer CCVH2125 - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
100A 2 Pole Molded Case Circuit Breaker
175A 2 Pole Molded Case Circuit Breaker
200A 2 Pole Molded Case Circuit Breaker
Description
Engineered for multi-tenant applications, the CCVH2125 is a 125A thermal-magnetic molded case circuit breaker with Long-Time and Instantaneous (LI) protection. It serves as a reliable tenant main disconnect. This unit-mount breaker integrates seamlessly with Eaton 1MP, 1MM, and 3MM group metering stacks, as well as Type ECC unit enclosures. It also replaces legacy CCH2125 models. Rated for 25 kAIC at 120/240VAC, this HACR-rated device features fixed trip settings and accepts 300 kcmil wire.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | CCVH |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | 2/0 AWG - 300 kcmil (Cu/Al) |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Product FAQs
5 answersWhat is the difference between the Eaton CCVH2125 and the CCV2125?
Both are 125A, 2-pole tenant main breakers with an identical physical footprint. The difference is their short-circuit interrupting capacity. The standard CCV2125 is rated at 10 kAIC, while the CCVH2125 is the high-interrupting version rated for 25 kAIC at 120/240V.
Which metering stacks and enclosures accept the CCVH2125?
This tenant main breaker is engineered for multi-family and commercial group metering. It installs directly into Eaton 1MP, 1MM, and 3MM modular metering stacks, as well as Type ECC unit enclosures used for service entrance equipment.
Can the CCVH2125 replace an older CCH2125 breaker?
Yes. The modern CCVH frame retains the exact same profile and footprint as the legacy CCH frame. This makes the CCVH2125 a direct, backward-compatible replacement for the obsolete CCH2125 in existing metering stacks.
What is the difference between the CCVH2125 and the CCVH2125X?
The standard CCVH2125 includes both line and load side lugs installed from the factory. A catalog number with an X suffix, such as CCVH2125X, indicates that the breaker is supplied with load side lugs only.

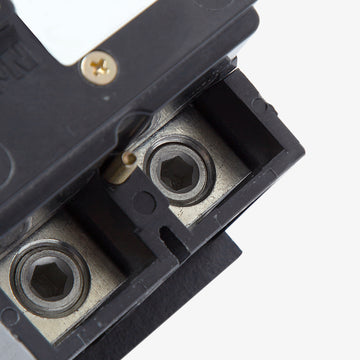

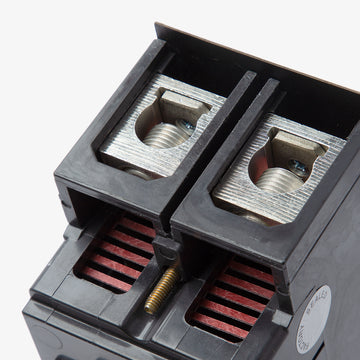

Are the lugs on this breaker rated for aluminum wire?
Yes, the factory-installed line and load lugs are dual-rated for both copper and aluminum conductors. They accept wire sizes ranging from 2/0 AWG to 300 kcmil.
