Eaton CCVH2225 Circuit Breaker
- 225
- 2 Pole
- Unit
Eaton
CCVH2225
Circuit Breaker
Brand
Eaton
SKU
CCVH2225
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

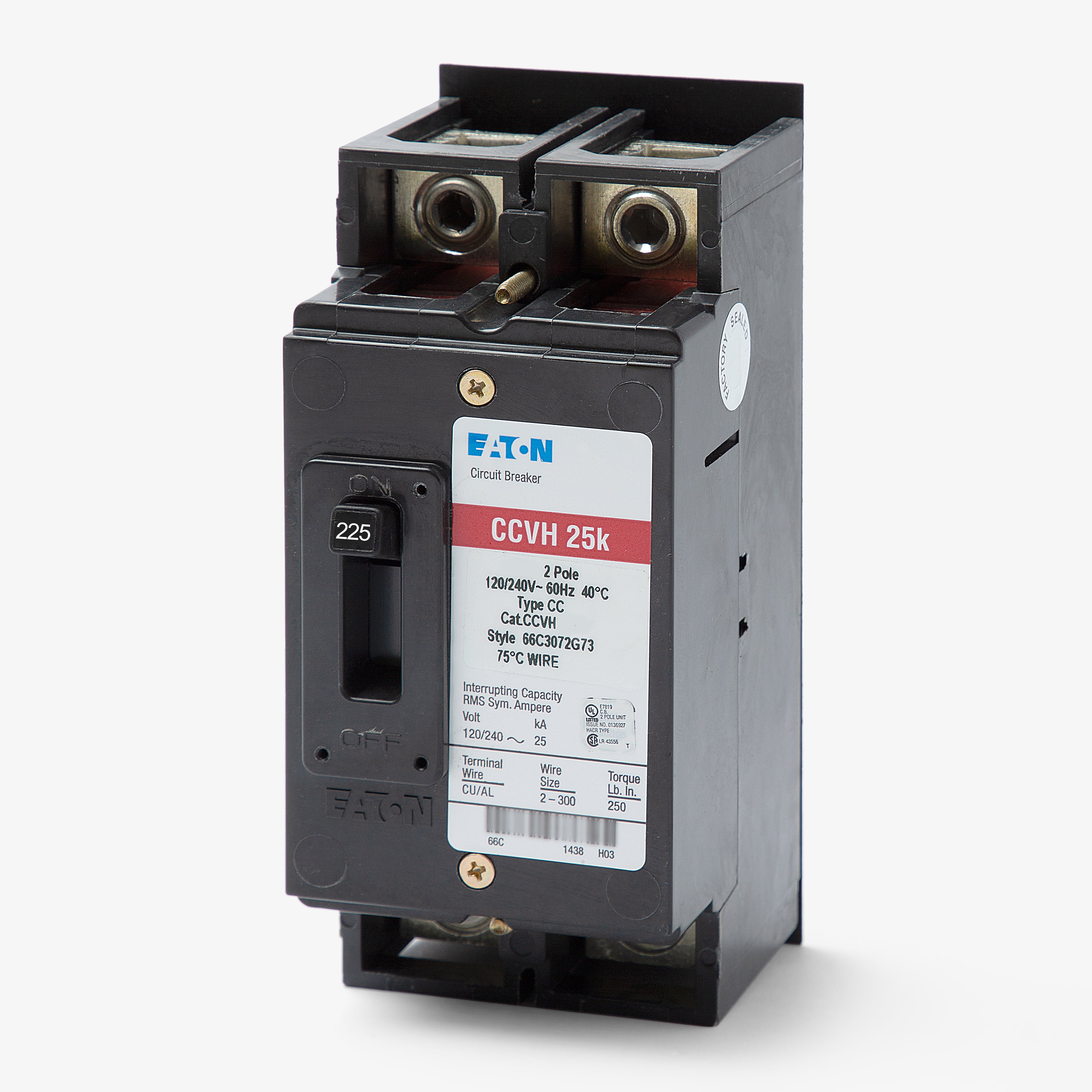

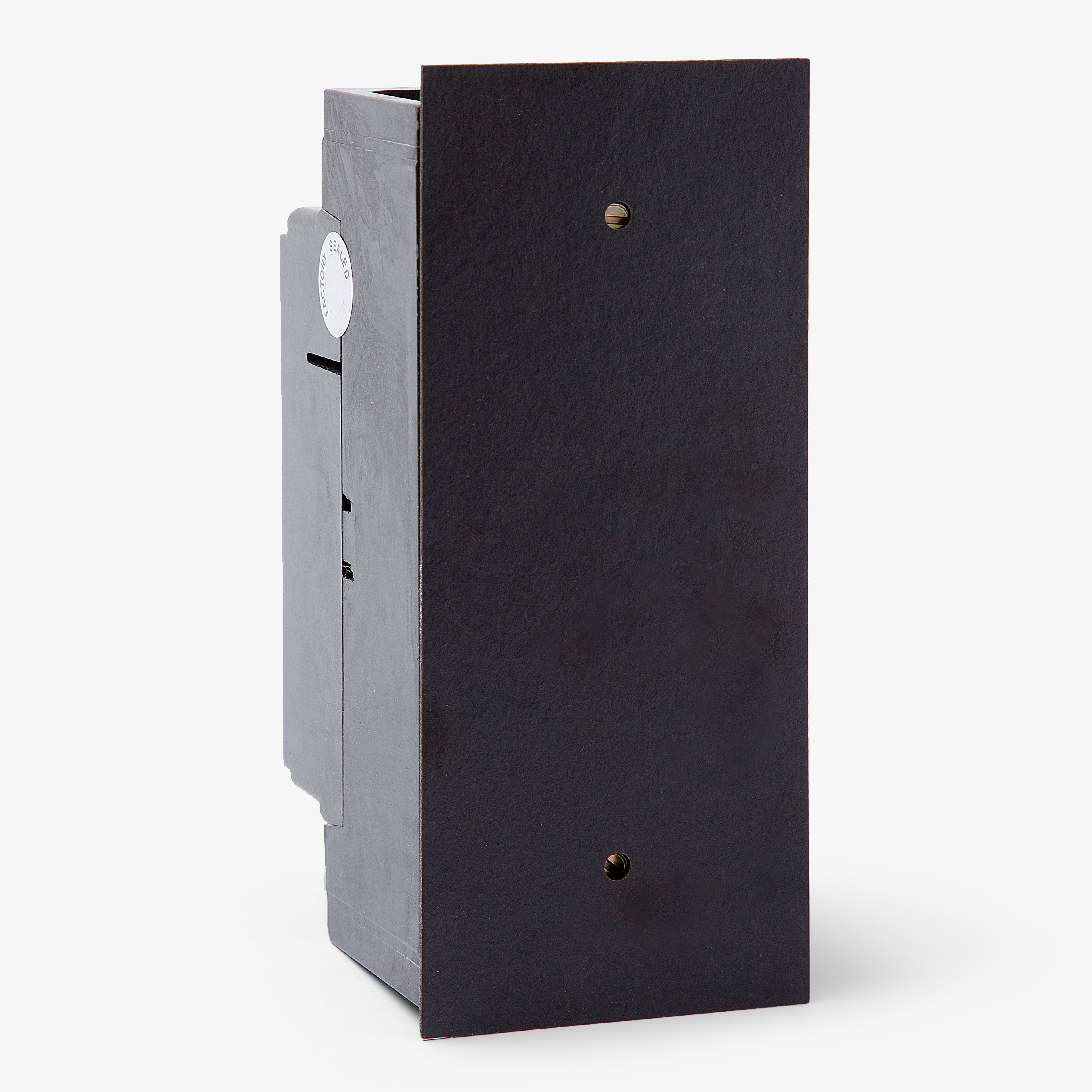

Eaton CCVH2225 2 Pole Circuit Breaker
New
Quantity
Quantity
Eaton CCVH2225 2 Pole Circuit Breaker
New
Quantity
| Brand | Eaton |
|---|---|
| Part Number | CCVH2225 |
| Series | CCVH |
| Amperage | 225 A |
| Poles | 2 |
| Mounting Style | Unit |
| Voltage | 120/240V |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | AWG 2/0 to 300KCmil, Cu/Al |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | CSA, UL |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Quantity
Eaton CCVH2225 2 Pole Circuit Breaker
Re-Certified
Quantity
| Brand | Eaton |
|---|---|
| Series | CCVH |
| Amperage | 225 A |
| Poles | 2 |
| Mounting Style | Unit |
| Voltage | 120/240V |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | AWG 2/0 to 300KCmil, Cu/Al |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | CSA, UL |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Similar Items
175A 2 Pole Molded Case Circuit Breaker
150A 2 Pole Molded Case Circuit Breaker
125A 2 Pole Molded Case Circuit Breaker
Description
Eaton CCVH2225 2 Pole Circuit Breaker
The Eaton CCVH2225 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 120/240V. It has an interrupting rating of 25kAIC at 240V. The CCVH2225 has a feed-thru connection type and includes long time and instantaneous trip functions.
Specifications
| Brand | Eaton |
|---|---|
| Part Number | CCVH2225 |
| Series | CCVH |
| Amperage | 225 A |
| Poles | 2 |
| Mounting Style | Unit |
| Voltage | 120/240V |
| Phase | 1 |
| AIC Rating | 25kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Group Metering Stacks (1MP, 1MM, 3MM), Type ECC Unit Enclosures |
| Wire Gauge | AWG 2/0 to 300KCmil, Cu/Al |
| Max Wire | 300 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch |
|---|---|
| Standards | CSA, UL |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Product FAQs
8 answersWhat enclosures and metering stacks are compatible with the CCVH2225?
This breaker is designed for use in Eaton Type ECC unit enclosures as well as Eaton group metering stacks, including the 1MP, 1MM, and 3MM series.
What is the difference between the Eaton CCV2225 and CCVH2225?
The CCVH2225 is the high-interrupting capacity version of the standard CCV2225. The CCVH model provides a 25 kAIC rating at 240V, whereas the standard CCV model is rated for 10 kAIC.

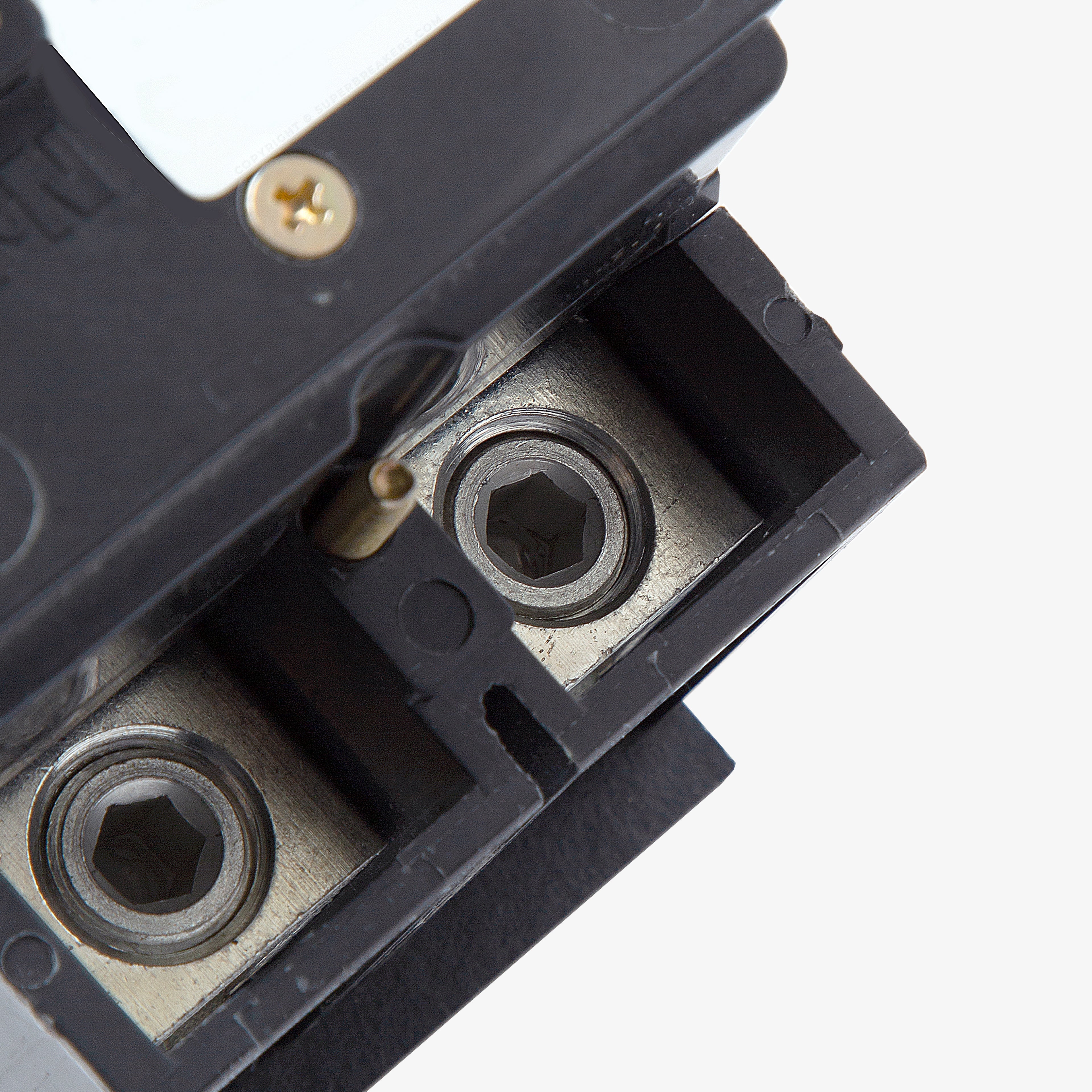

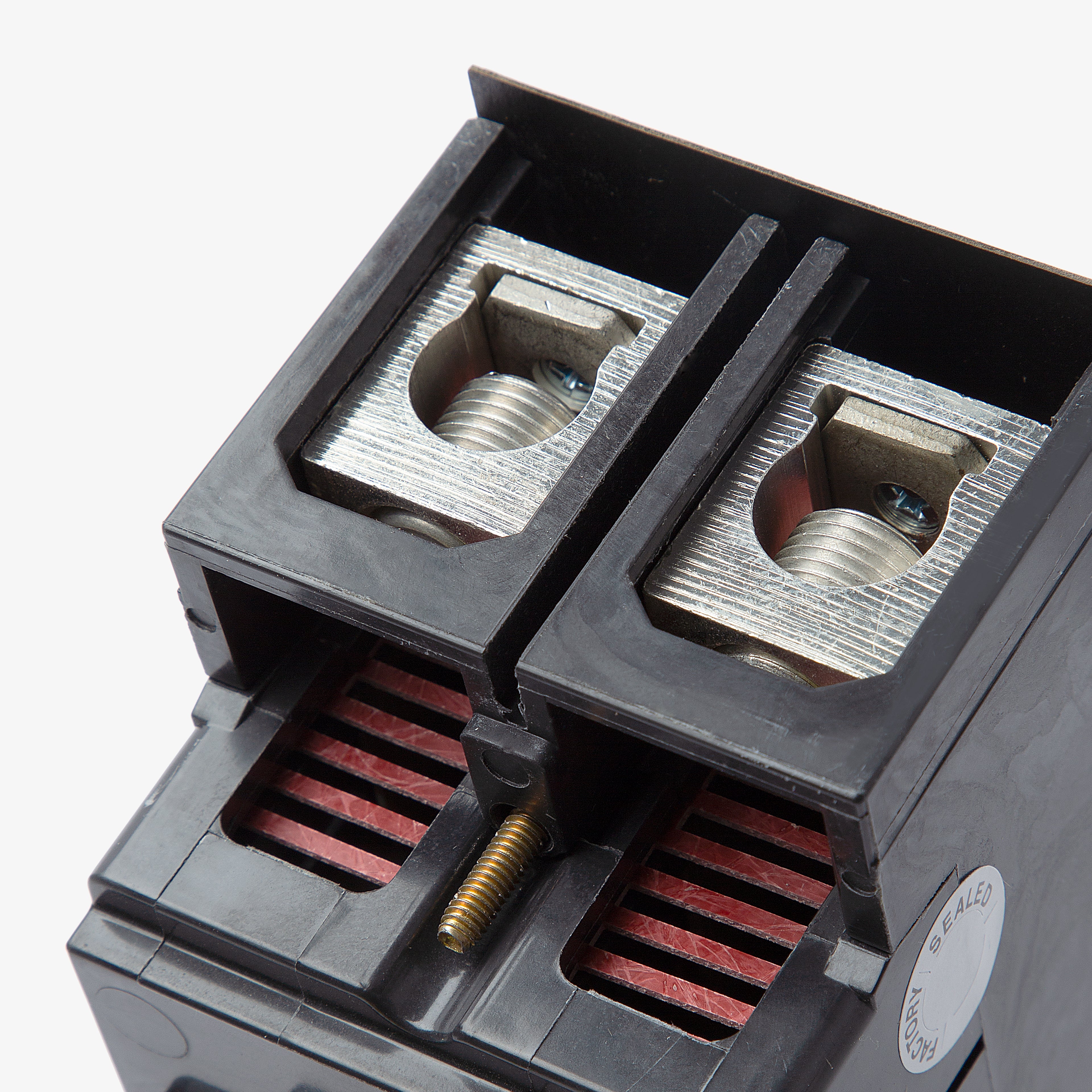

What wire sizes and materials are accepted by the terminals on this breaker?
The standard line and load side lugs are rated for both copper and aluminum conductors, accepting wire sizes from 2/0 AWG up to 300 kcmil.
What does the LI trip function indicate on the CCVH2225?
The LI code means the breaker features a thermal-magnetic trip unit with Long-Time (L) protection for gradual overloads and Instantaneous (I) protection for immediate short-circuit faults.
What is the temperature rating for the conductors used with this breaker?
The line and load side lugs are rated for use with 60 degrees Celsius or 75 degrees Celsius copper or aluminum wire.
Is this breaker approved for multi-family residential applications?
Yes, the CCV frame is specifically designed and UL 489 listed for use as a tenant main circuit breaker in multi-family residential and commercial group metering systems.
What is the standard UPC for the Eaton CCVH2225?
The standard UPC for this tenant main circuit breaker is 786685368672.
Can the CCVH2225 be used in a three-phase modular metering stack?
No, this is a two-pole breaker designed exclusively for single-phase 120/240V systems. Three-phase applications require a three-pole CCV or CCVH breaker.
