Eaton / Cutler-Hammer CVH2225XMM Molded Case Circuit Breaker
- 225A
- 2 Pole
- Bolt-On
Eaton / Cutler-Hammer
CVH2225XMM
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
CVH2225XMM
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

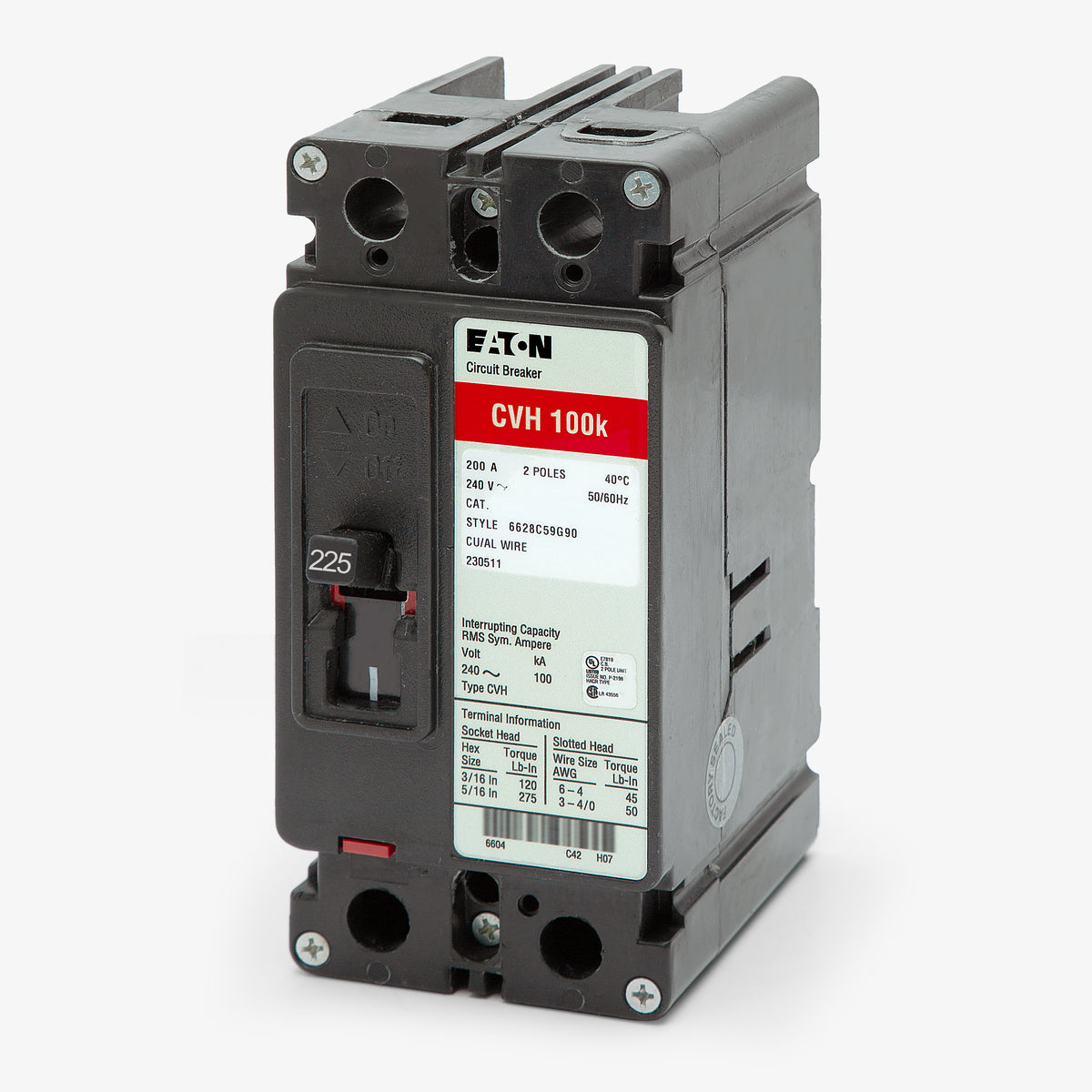

Eaton / Cutler-Hammer CVH2225XMM - 225A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerCVH2175XMM
175A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2150XMM
150A 2 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerCVH2125XMM
125A 2 Pole Molded Case Circuit Breaker
Description
Serving as a primary disconnect for tenant spaces, the CVH2225XMM handles 225-amp loads with a 100 kAIC interrupting rating. This two-pole breaker utilizes proven thermal-magnetic trip technology. Fitment covers Eaton 1MM, 3MM, and 1MP meter stacks, with the essential mounting kit provided. Facility managers can utilize this model to replace discontinued CHH2225 breakers. Lugs accept 6 AWG through 4/0 AWG wiring for flexible installation.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | CVH2225XMM |
| Series | CVH |
| Amperage | 225A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 120/240VAC |
| Frame Type | CC |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Meter Stacks (1MM, 3MM, 1MP) |
| Wire Gauge | 6 AWG - 4/0 AWG (Cu/Al) |
| Max Wire | 4/0 AWG |
| Min Wire | 6 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Mounting Kit (Suffix MM) |
| Standards | CSA C22.2 No. 5, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Tenant Main, HACR Rated, High Interrupting Capacity |
Product FAQs
3 answersWhich Eaton meter stacks are compatible with the CVH2225XMM?
This breaker is designed for use as a tenant main in Eaton 1MP, 1MM, and 3MM residential meter stacks. The MM suffix indicates that the required mounting kit for these enclosures is included with the breaker.
Can the CVH2225XMM be used to replace older Cutler-Hammer breakers?
Yes, this model serves as a direct replacement for discontinued Eaton and Cutler-Hammer CHH2225 circuit breakers used in group metering applications.
What wire sizes are compatible with the lugs on this breaker?
The factory-installed load lugs accept both copper and aluminum conductors ranging from 6 AWG to 4/0 AWG.
