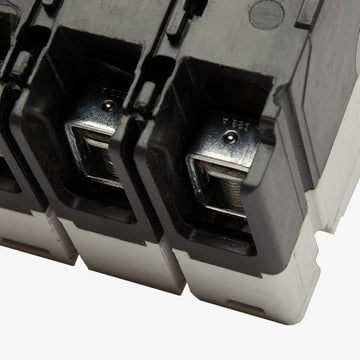

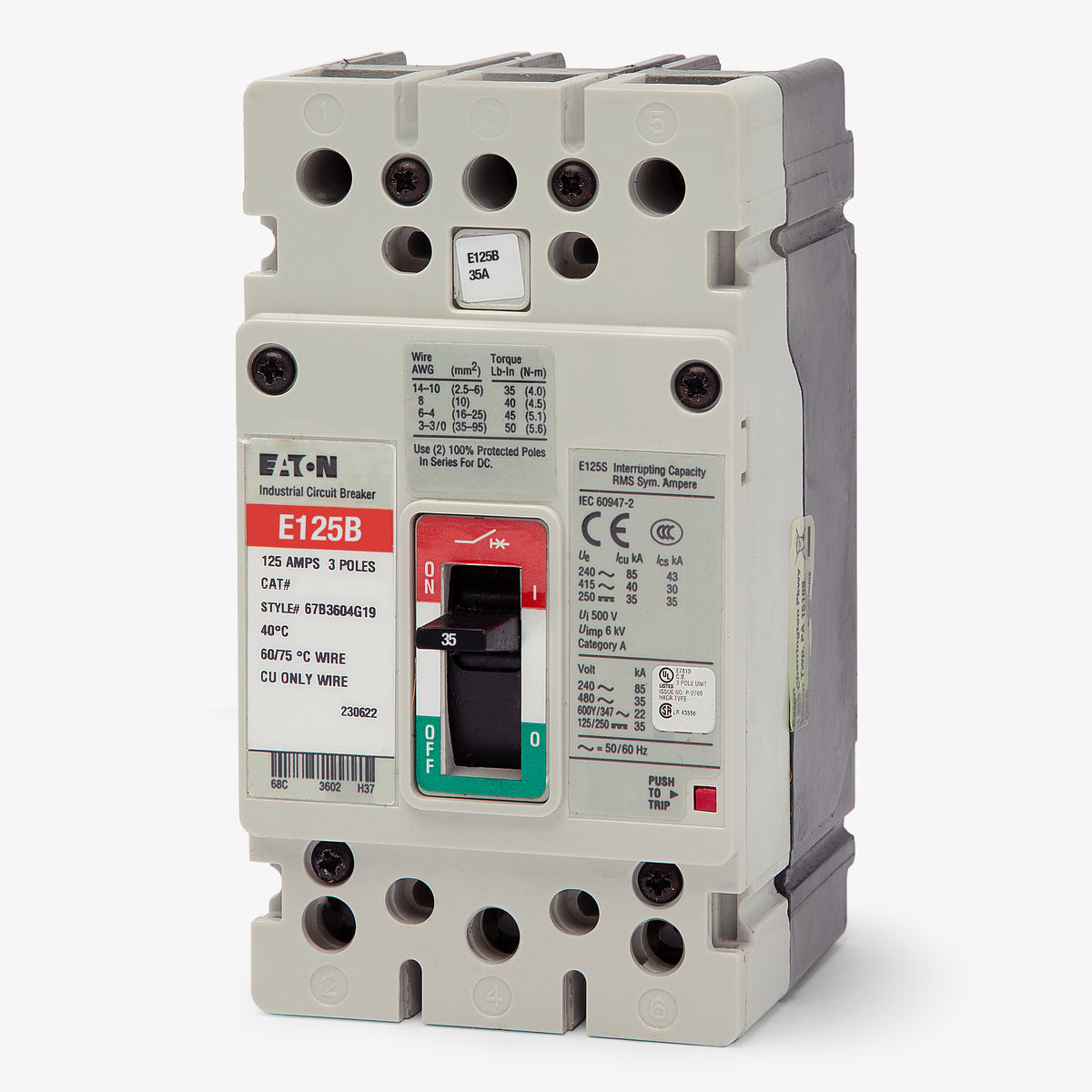

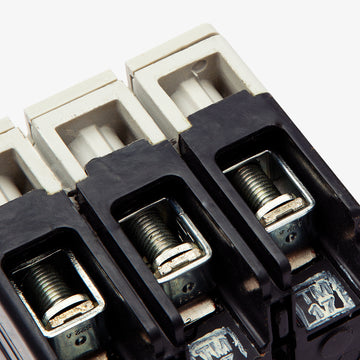

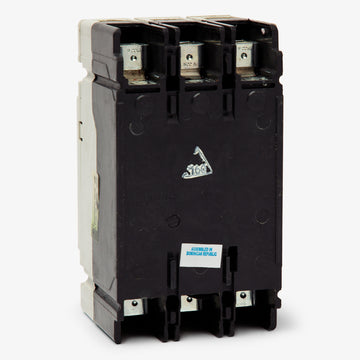

Eaton / Cutler-Hammer EGB3035FFG Molded Case Circuit Breaker
- 35A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
EGB3035FFG
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
EGB3035FFG
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer EGB3035FFG - 35A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerEGB3030FFG
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3045FFG
45A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerEGB3025FFG
25A 3 Pole Molded Case Circuit Breaker
Description
Delivering 18 kAIC at 480VAC, the EGB3035FFG is a 3-pole, 35A molded case circuit breaker designed for industrial power distribution. As part of the Eaton Series G EG-frame series, it utilizes fixed thermal and magnetic trip elements for dependable LI protection. This unit mount MCCB is compatible with Eaton Series G enclosures, motor control centers, and switchboards. It comes standard with line and load lugs, is HACR rated, and supports reverse feed applications.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | EGB3035FFG |
| Series | EGB |
| Amperage | 35A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | EG |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series G Enclosures, Switchboards, MCCs, Pow-R-Line Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Handle Lock, Multi-Wire Lugs |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed |
Product FAQs
6 answersCan the EGB3035FFG be mounted on a DIN rail?
Yes, this EG-frame breaker can be DIN rail mounted using the Eaton EGDIN adapter kit, which accommodates two, three, and four-pole Series G breakers.
What does the FFG suffix in the EGB3035FFG catalog number indicate?
The FFG designates that the breaker features a fixed thermal and fixed magnetic trip unit, and it comes standard with both line and load terminals included.
Which panelboards and enclosures are compatible with this breaker?
The EGB3035FFG is designed for use in Eaton Series G enclosures, motor control centers, switchboards, and Pow-R-Line panelboards.
Does this breaker provide ground fault or arc fault protection?
No, the EGB3035FFG is a standard thermal-magnetic circuit breaker. It does not include GFCI or AFCI protection features.
Can the EGB3035FFG be used in reverse feed applications?
Yes, this breaker supports reverse feed applications, allowing power to be supplied to either the line or load terminals.
Is the EGB3035FFG HACR rated?
Yes, this breaker is HACR rated, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
