Eaton / Cutler-Hammer FS360100A Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
Eaton / Cutler-Hammer
FS360100A
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
FS360100A
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

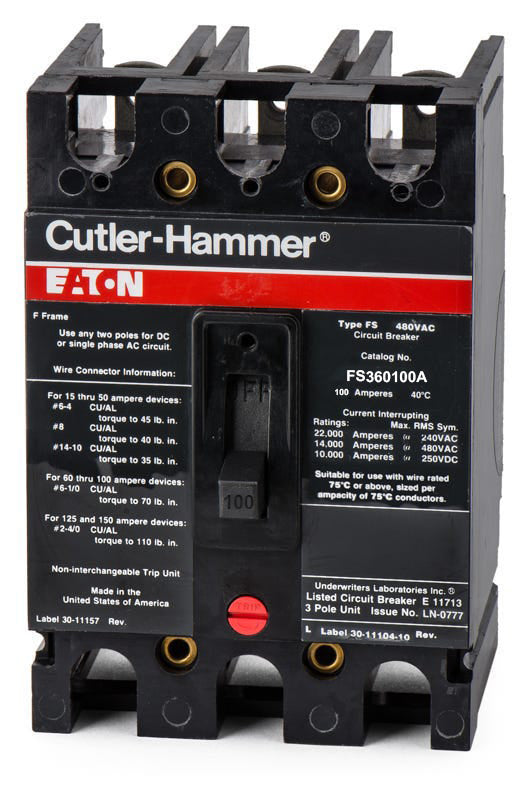

Eaton / Cutler-Hammer FS360100A - 100A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
Eaton / Cutler-HammerFS340070A
70A 3 Pole Molded Case Circuit Breaker
3 Pole Circuit Breaker
Eaton / Cutler-HammerFS320060A
60A 3 Pole Molded Case Circuit Breaker
Description
Providing essential overcurrent safety, the Eaton FS360100A is a 100A molded case circuit breaker designed for 600VAC systems. This Series C F-Frame device utilizes proven thermal-magnetic technology to safeguard industrial equipment. The unit mount configuration allows for straightforward integration into Eaton switchboards and panelboards. Facility managers can also use it to replace obsolete FDB3100 and FD3100 breakers. It delivers a 14kAIC interrupting capacity at 480VAC and is HACR rated.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | FS360100A |
| Series | FS |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 22kA @ 240VAC, 14kA @ 480VAC, 10kA @ 600VAC, 10kA @ 250VDC |
| Frame Type | FS |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards, Motor Control Centers |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated |
Product FAQs
6 answersWhat enclosures and distribution equipment accept the FS360100A?
This F-frame breaker is designed for installation in Eaton Series C panelboards, switchboards, and motor control centers.
Can the FS360100A be used to replace an obsolete FDB3100?
Yes, the FS360100A serves as a direct replacement for the legacy FDB3100. Both are 100A, 3-pole, F-frame breakers that provide a 14kAIC interrupting capacity at 480VAC.
Which lug kits are compatible with this 100A F-frame breaker?
The standard line and load terminal kit is the 3T100FB or 3TA100FB. These lugs accommodate copper or aluminum conductors ranging from 14 AWG to 1/0 AWG.
Is the FS360100A suitable for reverse feed applications?
Yes. Eaton Series C F-frame thermal magnetic circuit breakers do not have line and load restrictions, making them suitable for reverse feed installations.
Does this breaker carry an HACR rating for HVAC equipment?
Yes, all Eaton Series C F-frame circuit breakers are HACR rated, ensuring safe operation for heating, air conditioning, and refrigeration motor loads.
Can the trip settings on the FS360100A be adjusted in the field?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip thresholds are factory set and the trip unit is non-interchangeable.
