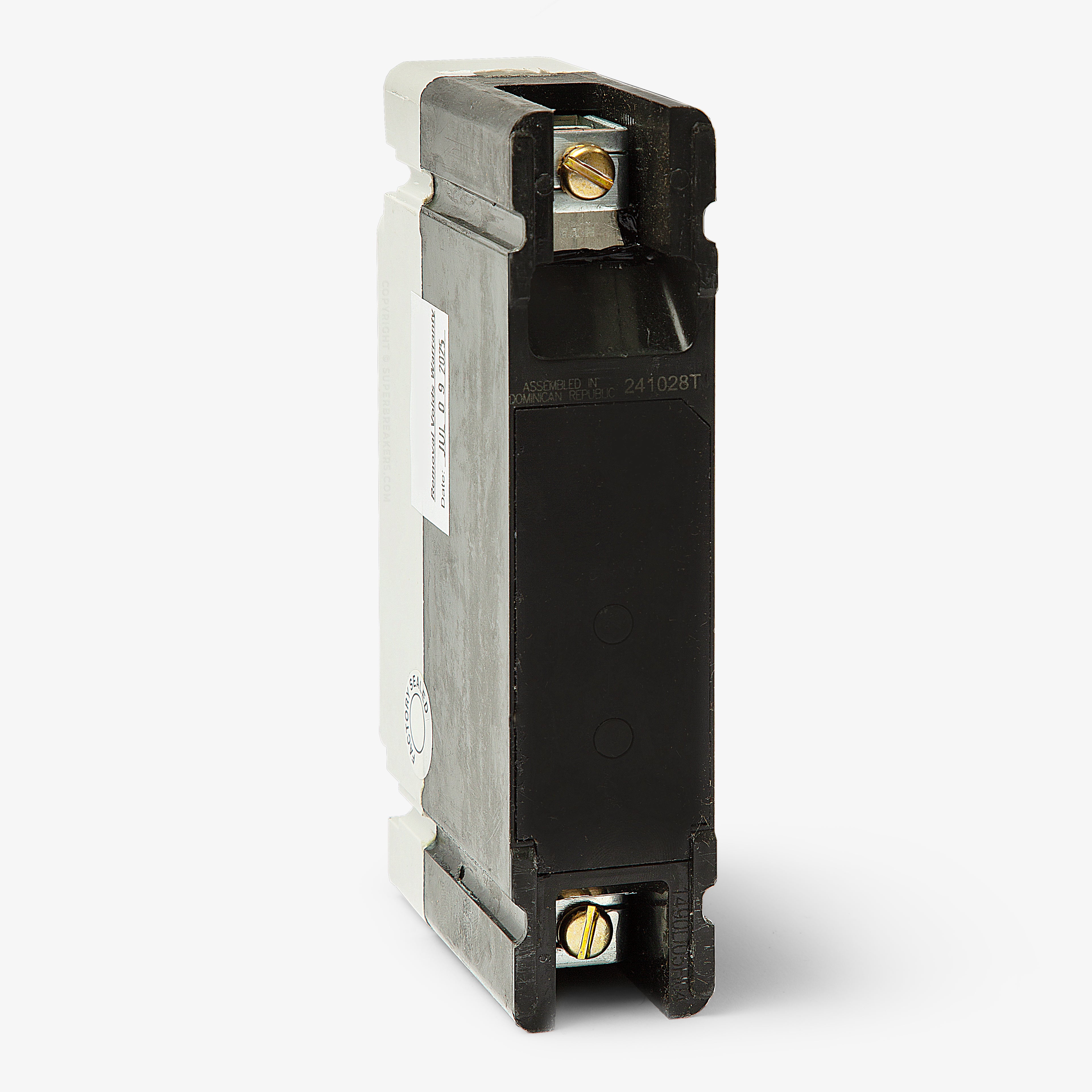

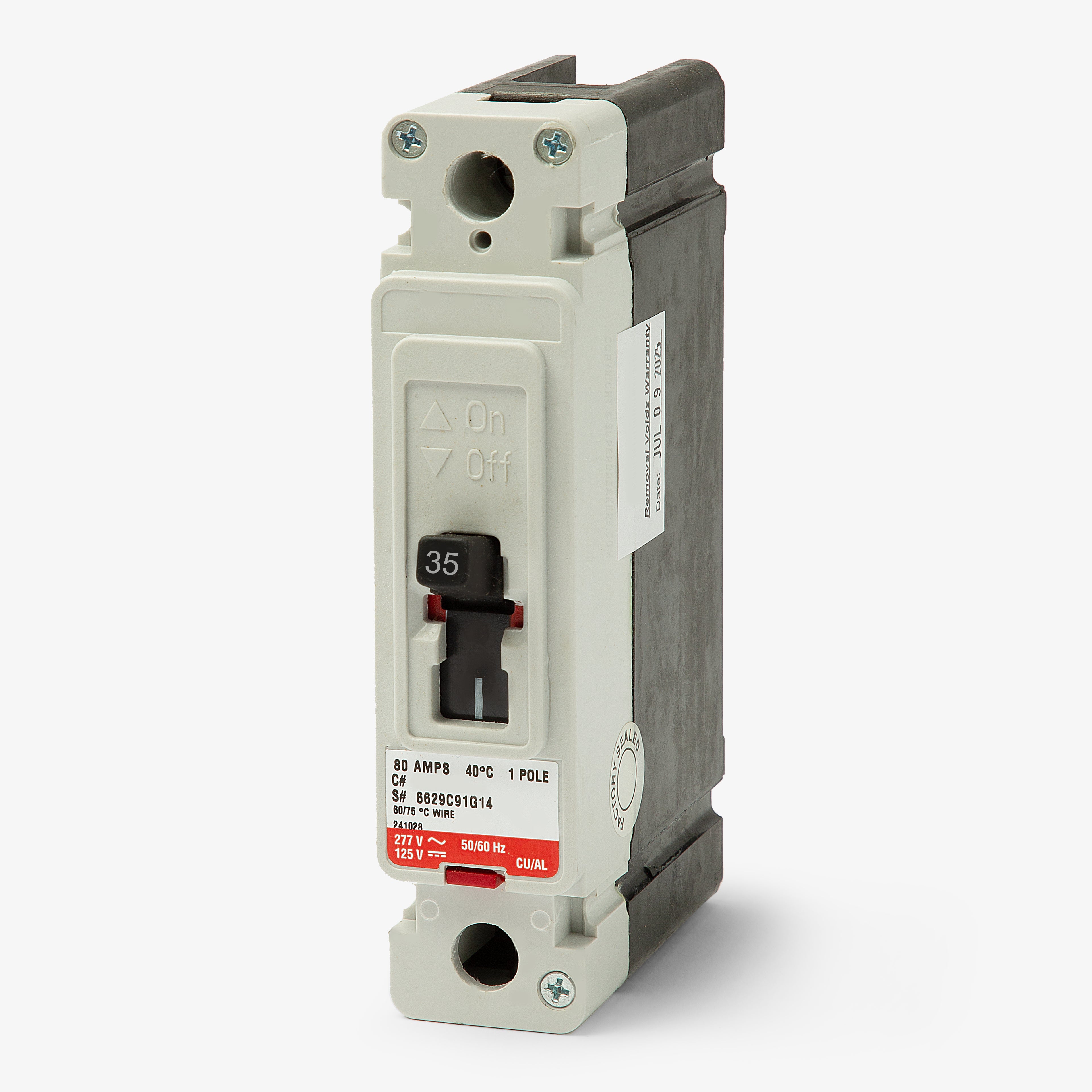

Eaton / Cutler-Hammer HFD1035 Molded Case Circuit Breaker
- 35A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
HFD1035
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
HFD1035
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer HFD1035 - 35A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
25A 1 Pole Molded Case Circuit Breaker
20A 1 Pole Molded Case Circuit Breaker
80A 1 Pole Molded Case Circuit Breaker
Description
Delivering 35 amps of robust overcurrent protection, the HFD1035 operates within demanding 277VAC commercial electrical systems. This single-pole Series C device utilizes proven thermal-magnetic trip technology for reliable performance. Fasten the unit securely into Eaton Series C panelboards and switchboards using its standard bolt-on mounting configuration. Facilities planning future upgrades can transition from this model to the newer Power Defense PDG2 platform using a retrofit kit.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | HFD |
| Amperage | 35A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 125VDC, 347VAC |
| Phase | 1 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 277VAC, 10kA @ 125VDC, 35kA @ 347VAC |
| Frame Type | HFD |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Series C Panelboards, Switchboards |
| Wire Gauge | 14 AWG - 1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Handle Lock, Motor Operator |
|---|---|
| Accessories | Load Side Lugs (Included) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB-1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, HID Rated, High Interrupting Capacity, Reverse Feed |
Product FAQs
6 answersWhich panelboards are compatible with the HFD1035?
This F-frame breaker is designed for use in Eaton and Cutler-Hammer Series C panelboards, as well as compatible commercial switchboards and motor control centers.
Can I use the HFD1035 to replace an older Westinghouse HFD breaker?
Yes. Eaton acquired the Westinghouse distribution equipment line. A modern Eaton or Cutler-Hammer HFD1035 is a direct, drop-in replacement for a legacy Westinghouse breaker with the exact same catalog number.
What is the difference between Eaton FD and HFD circuit breakers?
The H designates a high-interrupting capacity version of the standard FD frame. The HFD1035 provides a 65kAIC rating at 277VAC, whereas a standard FD1035 is rated for 35kAIC at the same voltage.
Does this breaker include both line and load terminals?

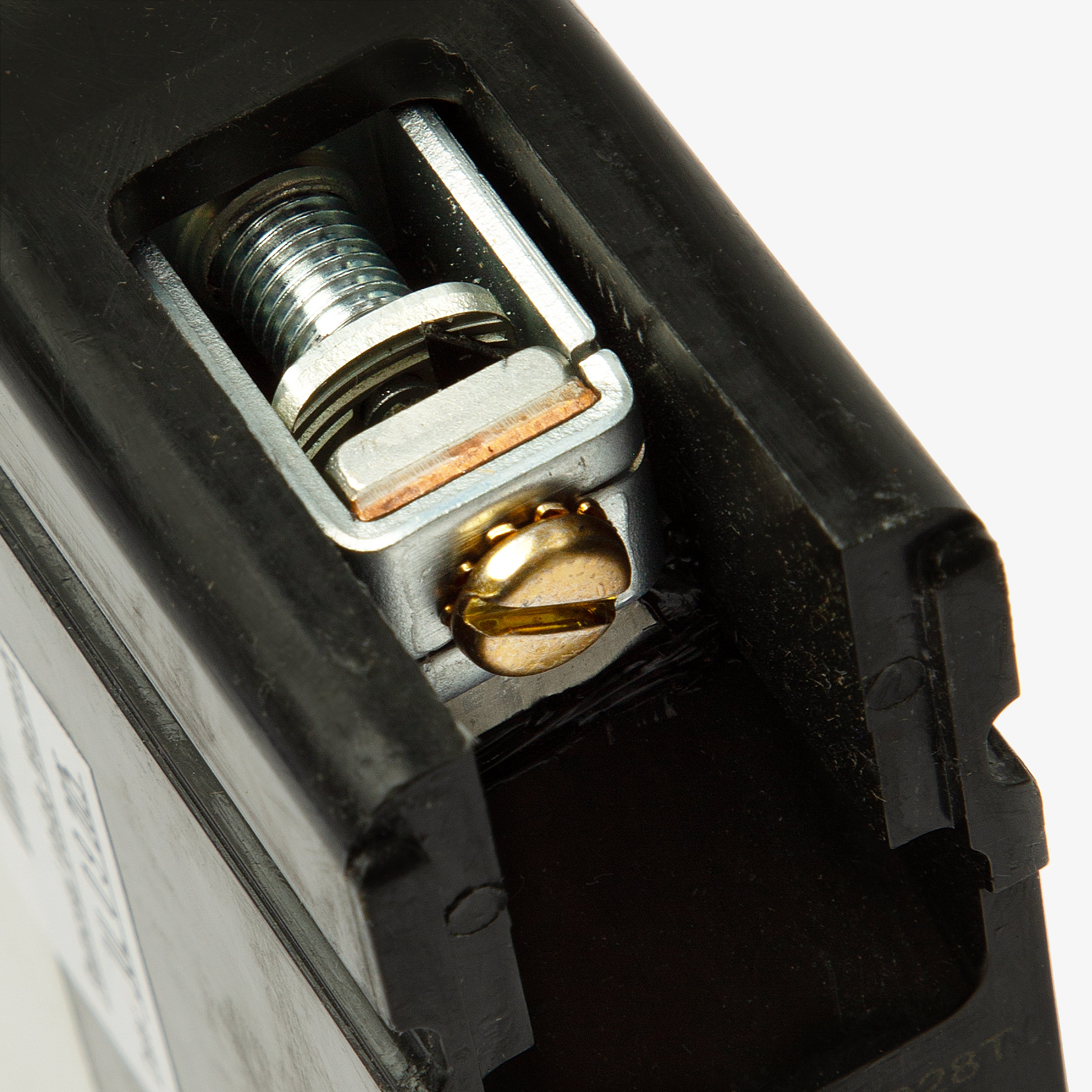

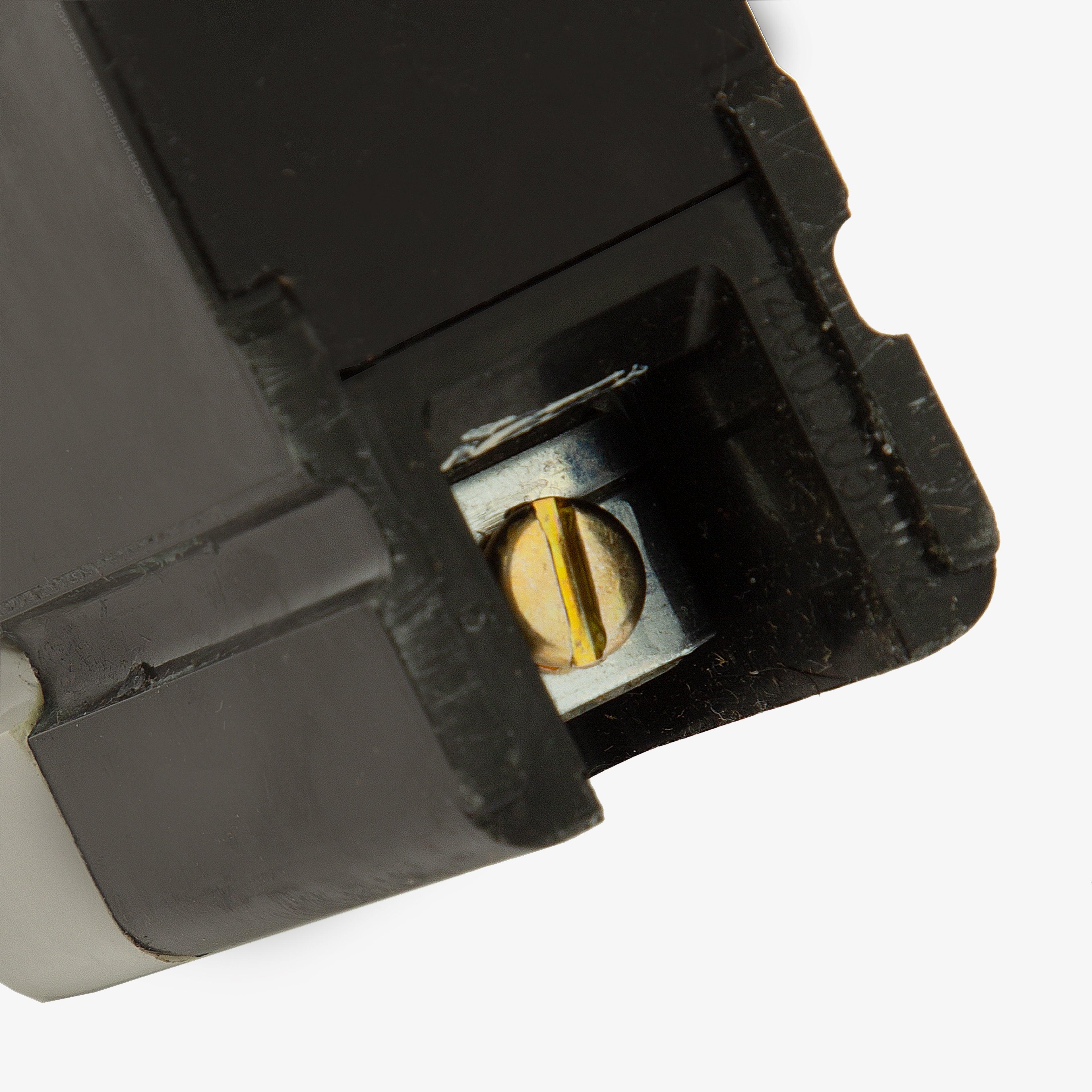

As a bolt-on breaker, the line side connects directly to the panelboard bus via a bolt-on tab. It includes a standard mechanical lug on the load side to accept 14 AWG to 1/0 AWG wire.
Will this breaker fit in a standard residential load center?
No. The HFD1035 is an industrial F-frame breaker designed for commercial panelboards. It is not compatible with standard residential plug-on or bolt-on load centers such as the Eaton BR or CH series.
Is the HFD1035 suitable for direct current applications?
Yes, this thermal-magnetic breaker is rated for use in DC circuits up to 125VDC, providing a 10kA interrupting capacity for those specific applications.
