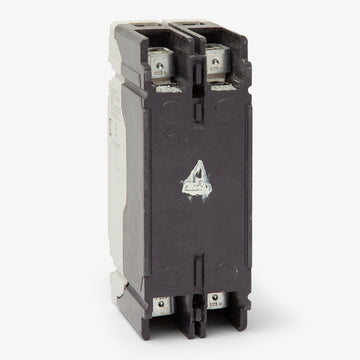

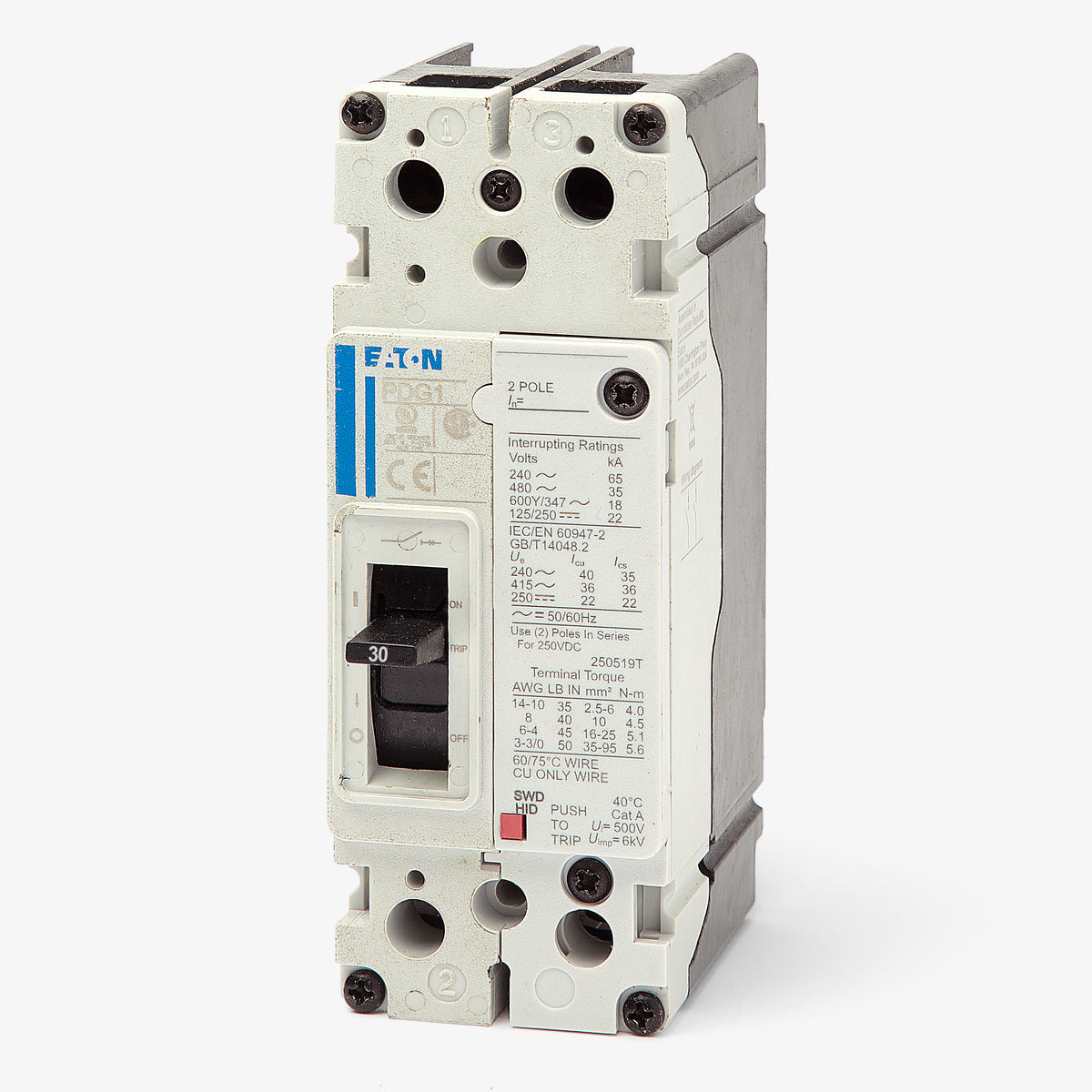

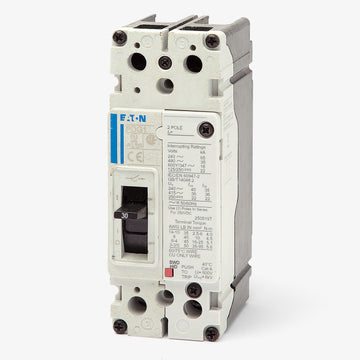

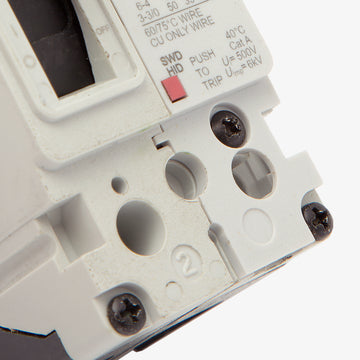

Eaton / Cutler-Hammer PDG12G0030TFFJ Molded Case Circuit Breaker
- 30A
- 2 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG12G0030TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG12G0030TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG12G0030TFFJ - 30A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG22M0030TFFJ
30A 2 Pole Molded Case Circuit Breaker
Description
Built for heavy-duty commercial use, the Eaton PDG12G0030TFFJ 2-pole, 30A molded case circuit breaker operates within the Power Defense Frame 1 family. It utilizes fixed thermal and magnetic (LI) trip technology to defend against overloads. This panel-mount breaker integrates into Eaton Power Defense panelboards, switchboards, and enclosures. It is designed to replace the older EGS2030FFG model. The globally rated MCCB delivers a 35kAIC interrupt rating at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 30A |
| Poles | 2 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant |
Product FAQs
5 answersWhat panelboards and enclosures are compatible with the PDG12G0030TFFJ?
This Frame 1 breaker is designed for use with Eaton Power Defense panelboards, switchboards, and compatible enclosures.

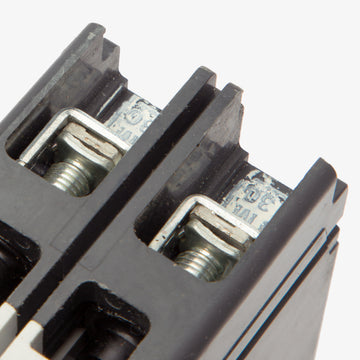

What wire sizes are accepted by the standard box lugs on this breaker?
The factory-installed line and load box lugs accept wire gauges ranging from 14 AWG to 3/0 AWG.
Is the PDG12G0030TFFJ suitable for DC voltage applications?
Yes, in addition to AC systems, this breaker is rated for use in DC applications up to 250VDC, where it provides a 22kAIC interrupting rating.
What do the characters in the PDG12G0030TFFJ catalog number represent?
The part number breaks down as Power Defense Global Frame 1 (PDG1), 2-pole (2), 35kAIC at 480VAC (G), 30 amps (0030), fixed thermal-magnetic trip unit (TFF), and standard line and load terminals (J).
Can the trip curve be adjusted on the PDG12G0030TFFJ?
No, this breaker is equipped with a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions are factory set and cannot be modified in the field.
