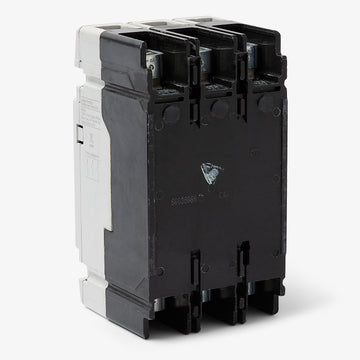

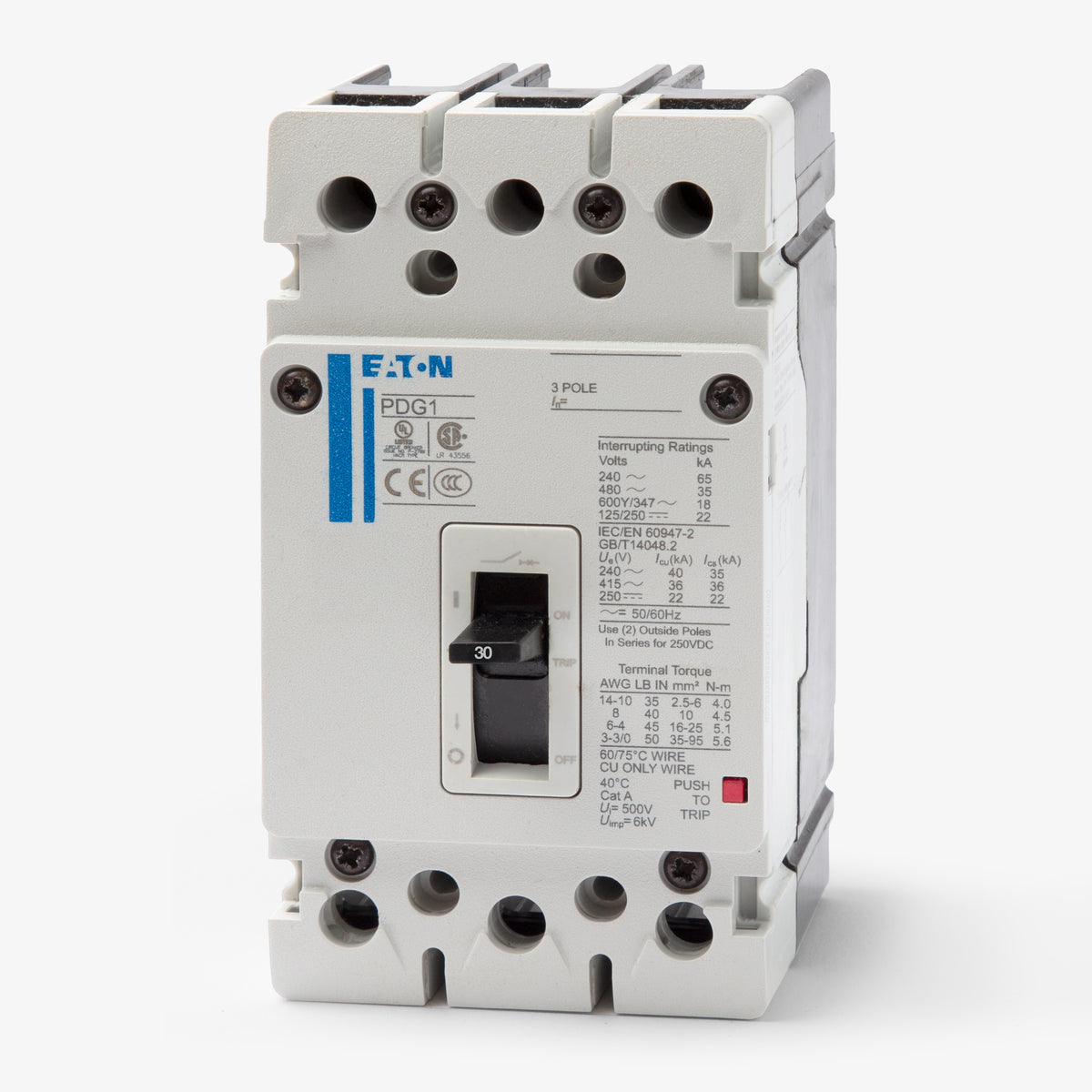

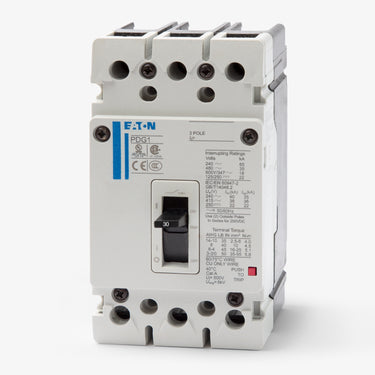

Eaton / Cutler-Hammer PDG13G0030TFFJ Molded Case Circuit Breaker
- 30A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13G0030TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13G0030TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13G0030TFFJ - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0025TFFJ
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0040TFFJ
40A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton PDG13G0030TFFJ is a 3-pole, 30A molded case circuit breaker from the globally rated Power Defense series. It installs into compatible Eaton panelboards, enclosures, and switchboards, serving as a direct replacement for the legacy EGS3030FFG. Rated at 35 kAIC at 480VAC, this Frame 1 MCCB features fixed thermal and fixed magnetic (LI) trip functions, providing dependable current-limiting protection for demanding electrical systems.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | PDG13G0030TFFJ |
| Series | PDG1 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 22kA @ 250VDC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Rotary Handle |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs
6 answersWhat frame size is the PDG13G0030TFFJ circuit breaker?
This breaker belongs to the Eaton Power Defense Frame 1 (PDG1) series. It is globally rated and designed with a compact footprint for use in panelboards, switchboards, and industrial enclosures.
Can the PDG13G0030TFFJ be mounted on a DIN rail?
Yes, while it is a standard panel-mount molded case circuit breaker, this Power Defense Frame 1 model supports DIN rail mounting, making it highly adaptable for industrial control panels and automation enclosures.
How is the 250VDC rating achieved on the PDG13G0030TFFJ?
For direct current applications up to 250VDC, Eaton thermal-magnetic breakers require wiring two of the poles in series to safely interrupt the DC arc. Always consult the manufacturer wiring diagrams for proper DC installation.
What type of wire connections does this breaker use?

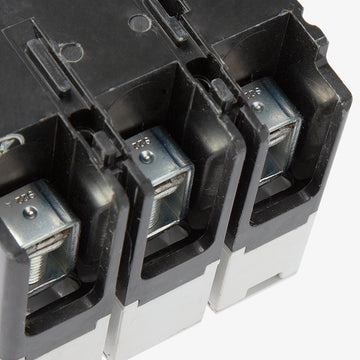

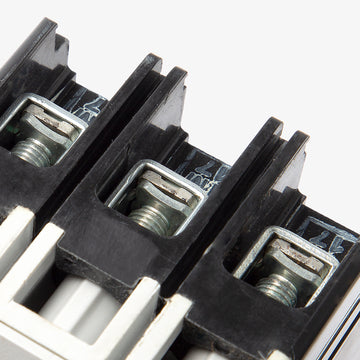

The PDG13G0030TFFJ is equipped with standard line and load box lugs. These factory-installed terminals accept conductor sizes ranging from 14 AWG to 3/0 AWG.
Can I adjust the trip curve on the PDG13G0030TFFJ?
No, this specific model uses a fixed thermal and fixed magnetic (TFF) trip unit for standard long-time and instantaneous (LI) protection. If your application requires adjustable settings, you will need a Power Defense breaker equipped with an electronic Power Xpert Release (PXR) trip unit.
What does the "G" in the PDG13G0030TFFJ part number indicate?
In the Eaton Power Defense catalog system, the "G" designates the breaker interrupting capacity tier. For this Frame 1 model, it indicates a rating of 35kAIC at 480VAC.
