Eaton / Cutler-Hammer PDG13M0030TFFJ Molded Case Circuit Breaker
- 30A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13M0030TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13M0030TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

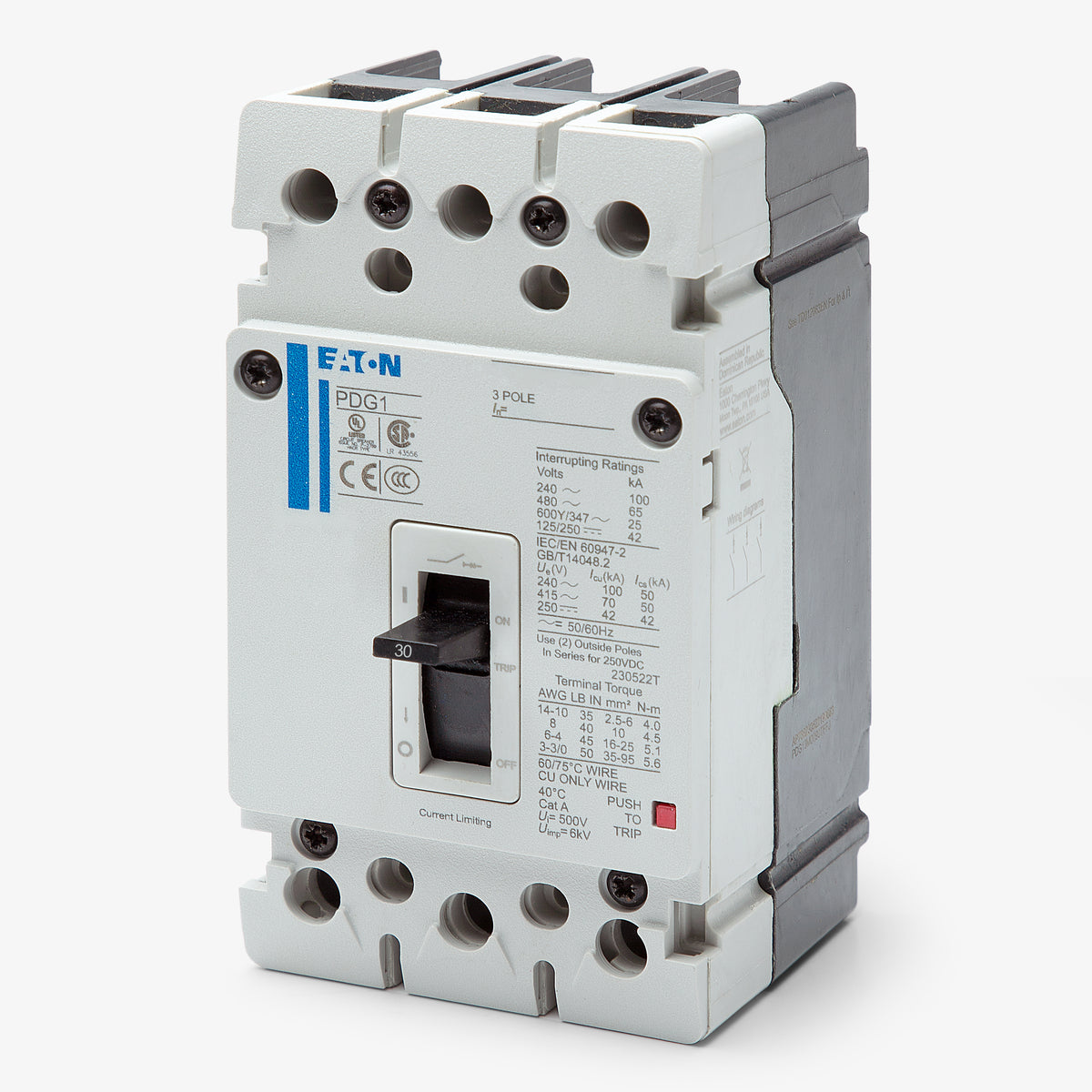

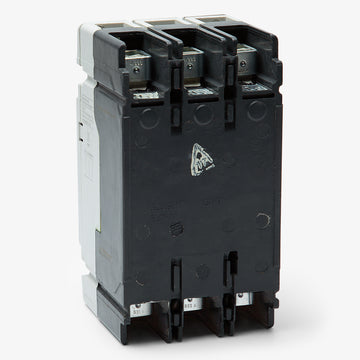

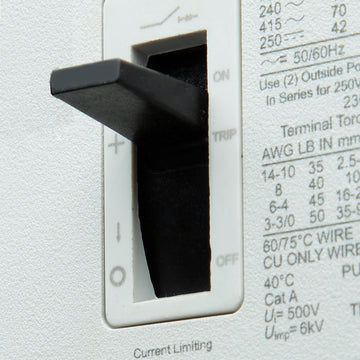

Eaton / Cutler-Hammer PDG13M0030TFFJ - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0045TFFJ
45A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the Eaton PDG13M0030TFFJ is a 3-pole, 30A molded case circuit breaker from the globally rated Power Defense family. It features fixed thermal and magnetic trip units for reliable LI protection. This Frame 1 MCCB mounts into Eaton Pow-R-Line panelboards and switchboards. It serves as a seamless drop-in replacement for the legacy EGH3030FFG, simplifying facility upgrades. Rated at 65kAIC at 480VAC, it includes standard line and load lugs.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600Y/347VAC, 42kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|

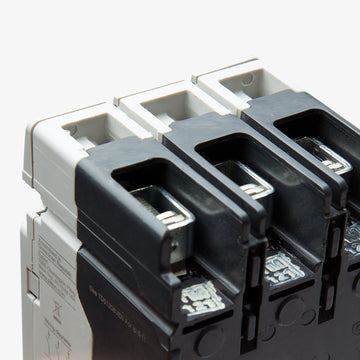

| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards, Power Defense Enclosures |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Undervoltage Release, Padlock Attachment, DIN Rail Adapter, Multi-Wire Lug Kit, Rotary Handle |
|---|---|
| Accessories | Standard Line and Load Terminals (PDG1X3T125) |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | HACR Rated, Current Limiting, Reverse Feed, RoHS Compliant, Globally Rated |
Product FAQs
5 answersCan the PDG13M0030TFFJ be mounted on a DIN rail?
Yes, this Power Defense Frame 1 breaker supports both standard panel mounting and DIN rail installation for use in motor control centers.
What types of panels and enclosures are compatible with the PDG13M0030TFFJ?
This breaker is designed for use in Eaton Pow-R-Line panelboards, Power Defense enclosures, and motor control centers.
Is this breaker suitable for DC circuits?
Yes, it is rated for up to 250VDC with an interrupting capacity of 42kA.
Are the thermal and magnetic trip settings adjustable on this model?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip functions cannot be adjusted in the field.
Can the PDG13M0030TFFJ be used in reverse feed applications?
Yes, this Power Defense Frame 1 thermal magnetic breaker is suitable for reverse feed applications.
