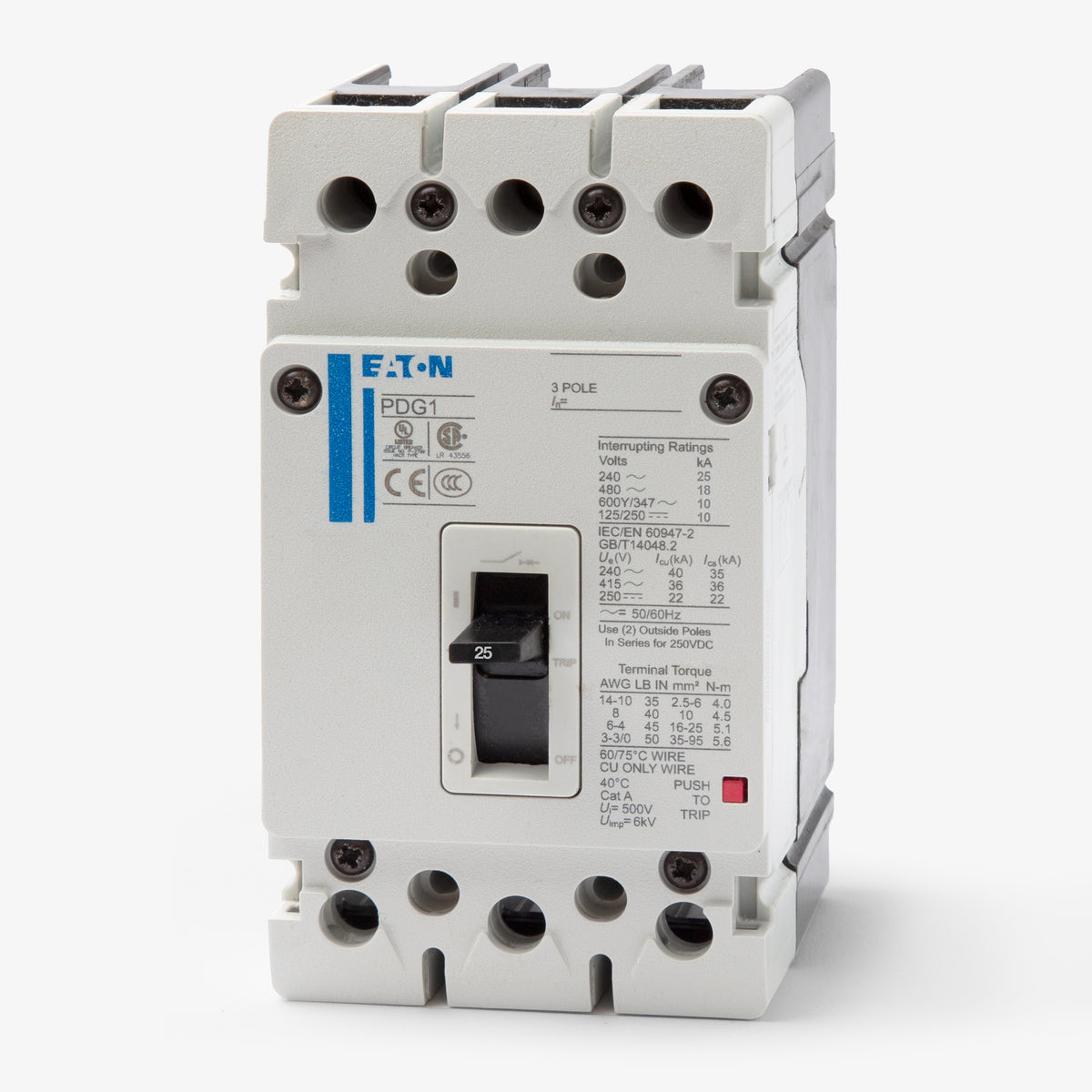

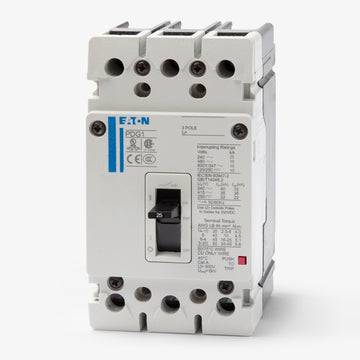

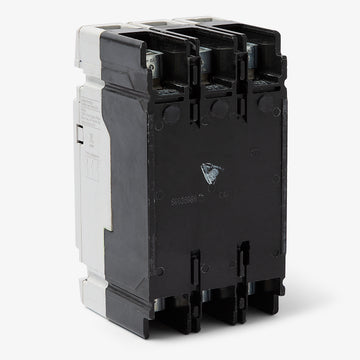

Eaton / Cutler-Hammer PDG13C0025TFFJ Molded Case Circuit Breaker
- 25A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0025TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0025TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0025TFFJ - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0025TFFJ
25A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13C0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13F0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Description
Delivering consistent power distribution, the Eaton PDG13C0025TFFJ is a high-performance MCCB from the Power Defense series. Designed for demanding environments, this 3-pole, 25A device operates in a standardized Frame 1 size. Mounting securely into Eaton Power Defense panelboards and enclosures, it features standard box lug terminals. The globally rated design ensures broad compatibility. Equipped with a fixed thermal-magnetic trip, it provides an 18 kAIC rating at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, HACR Rated, RoHS Compliant, Globally Rated |
Product FAQs
7 answersWhat equipment is compatible with the PDG13C0025TFFJ circuit breaker?
This Frame 1 breaker is designed for installation in Eaton Power Defense panelboards, switchboards, and industrial enclosures.
What does the TFF in the PDG13C0025TFFJ catalog number signify?
It indicates the breaker is equipped with a thermal-magnetic trip unit featuring fixed thermal and fixed magnetic settings for long-time and instantaneous (LI) protection.
What wire sizes are accepted by the terminals on the PDG13C0025TFFJ?

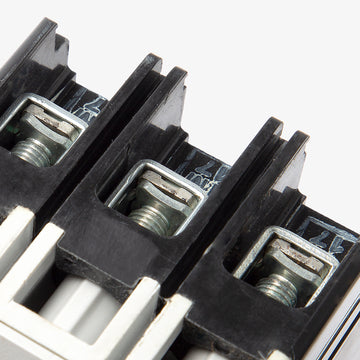

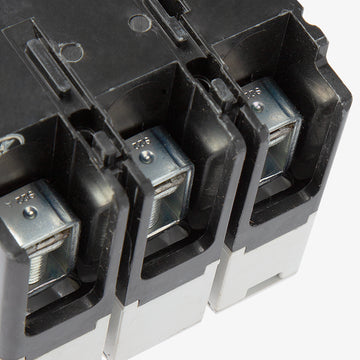

The standard line and load box lugs on this breaker accept wire gauges ranging from 14 AWG up to 3/0 AWG.
What is the UPC for the PDG13C0025TFFJ?
The manufacturer UPC for this Eaton Power Defense breaker is 786679251904.
Is the PDG13C0025TFFJ suitable for international applications?
Yes, the PDG prefix designates this as a Power Defense Globally rated breaker, built to meet global compliance standards for power distribution.
How does the PDG13C0025TFFJ mount into a panel?
It utilizes a standard bolt-on panel mount configuration, securing directly to the chassis of compatible Eaton Power Defense distribution equipment.
Can the PDG13C0025TFFJ be used in DC electrical systems?
Yes, this breaker is rated for DC applications up to 250VDC, where it provides a 10kA interrupting capacity.
