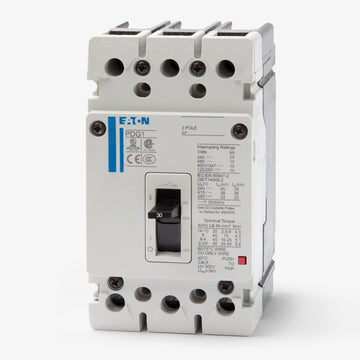

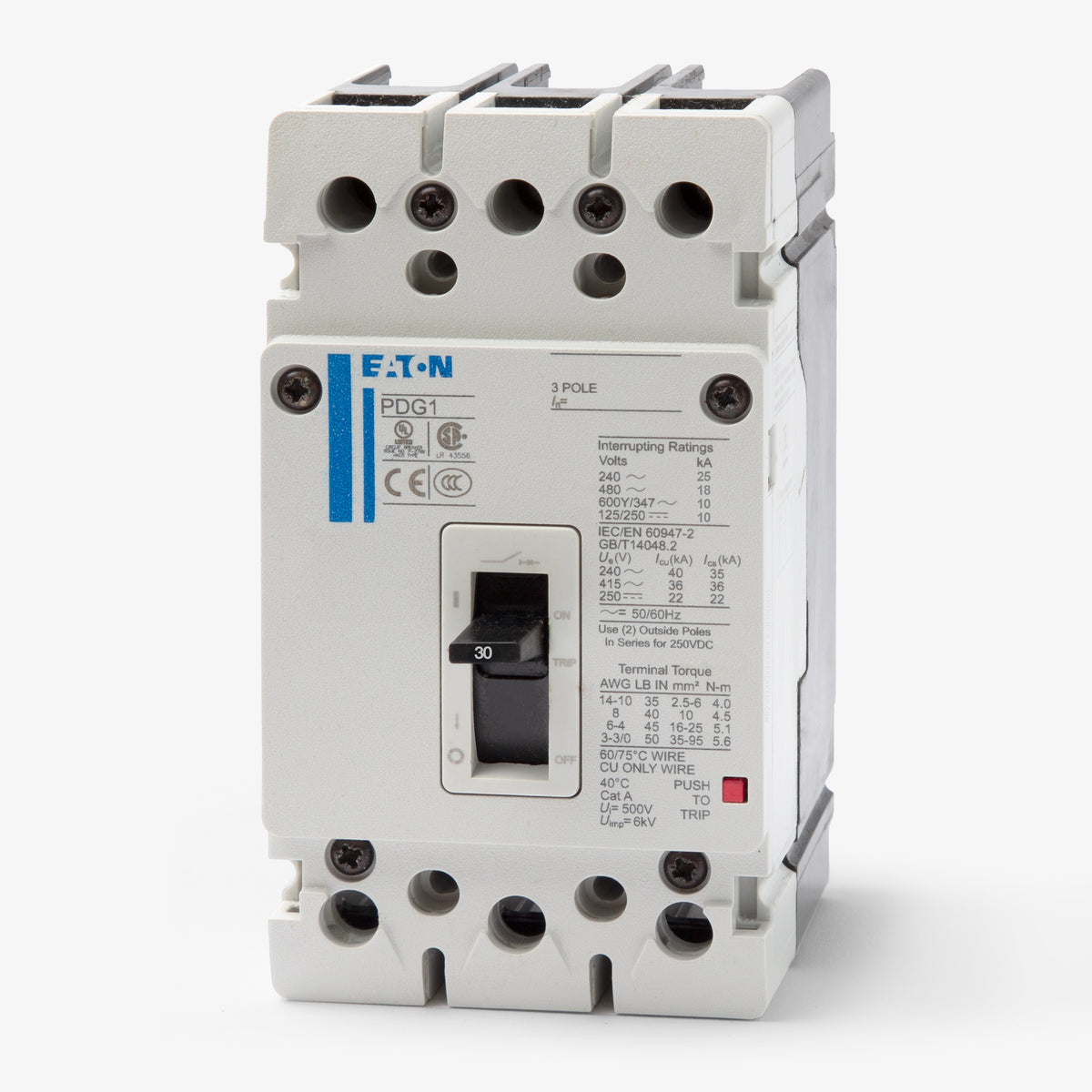

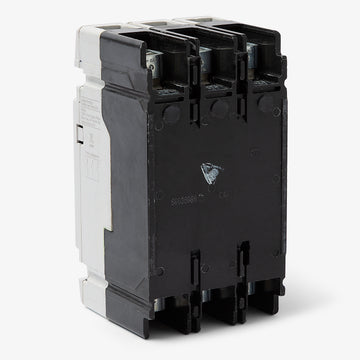

Eaton / Cutler-Hammer PDG13C0030TFFJ Molded Case Circuit Breaker
- 30A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13C0030TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13C0030TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13C0030TFFJ - 30A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13G0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13C0025TFFJ
25A 3 Pole Molded Case Circuit Breaker
Description
Built for demanding industrial applications, the Eaton PDG13C0030TFFJ brings modern Power Defense technology to your facility. This globally rated 3-pole, 30A Frame 1 device offers enhanced reliability for commercial power distribution networks. Designed for panel-mount installations, it fits seamlessly into Eaton Power Defense and Pow-R-Line panelboards. It serves as an exact replacement for legacy EGB3030FFG breakers. Featuring a fixed thermal-magnetic trip, it delivers 18 kAIC at 480VAC.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 30A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 600Y/347VAC, 10kA @ 250VDC |
| Frame Type | PDG |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14 AWG - 3/0 AWG (Al/Cu) |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Alarm Switch, Shunt Trip, Undervoltage Release, DIN Rail Adapter, Padlock Attachment |
|---|---|
| Accessories | Standard Line and Load Terminals |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS Compliant |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Current Limiting, Globally Rated, RoHS Compliant, HACR Rated |
Product FAQs
6 answersWhat does the "C" in the PDG13C0030TFFJ catalog number indicate?
In the Eaton Power Defense nomenclature, the "C" designates the interrupting rating. For this Frame 1 breaker, it indicates an 18kAIC rating at 480VAC.
What do the "TFF" letters signify in the PDG13C0030TFFJ part number?
The "TFF" indicates the trip unit configuration. "T" stands for Thermal-Magnetic, while the two "F"s specify that both the thermal (long-time) and magnetic (instantaneous) trip functions are fixed.
What does the "J" suffix mean at the end of the PDG13C0030TFFJ catalog number?

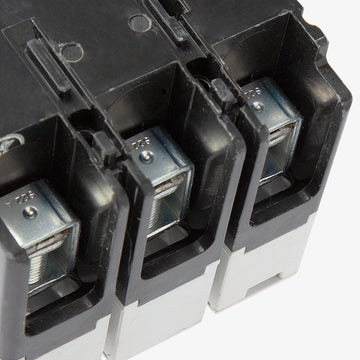

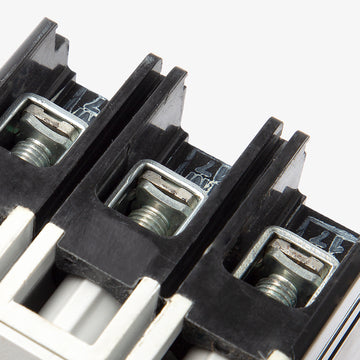

The "J" suffix indicates that the breaker is supplied with standard line and load box lugs (Eaton part number PDG1X3T125) installed from the factory. These lugs accept 14 AWG to 3/0 AWG aluminum or copper conductors.
Are the trip settings adjustable on the PDG13C0030TFFJ?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous trip points are factory set and cannot be adjusted in the field.
Can the PDG13C0030TFFJ be mounted on a DIN rail?
While the breaker is primarily designed for standard panel mounting, it can be adapted for DIN rail installation using the Eaton PDG1XDIN34P adapter accessory designed for 3-pole and 4-pole Frame 1 breakers.
Does the PDG13C0030TFFJ provide ground fault protection?
No, this is a standard thermal-magnetic circuit breaker designed for overload and short-circuit protection only. It does not include integrated equipment ground fault protection.
