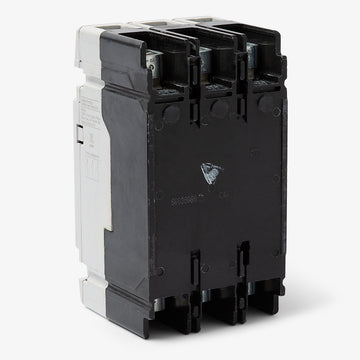

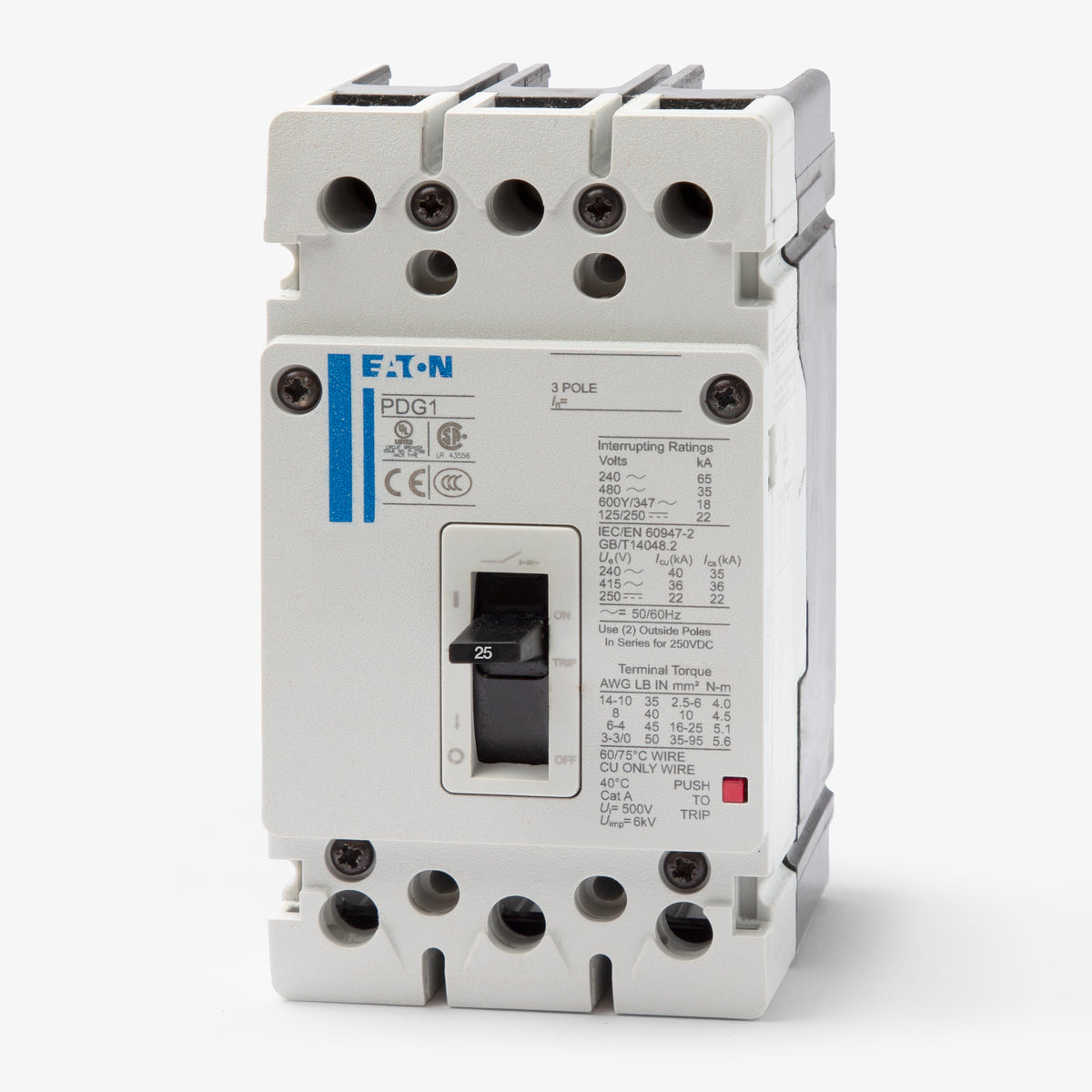

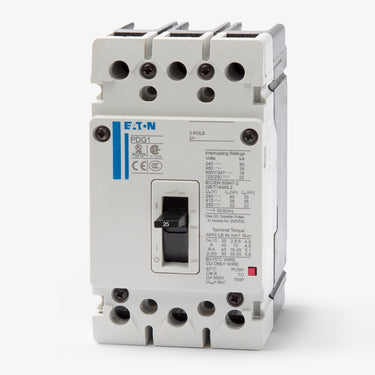

Eaton / Cutler-Hammer PDG13G0025TFFJ Molded Case Circuit Breaker
- 25A
- 3 Pole
- Panel Mount
Eaton / Cutler-Hammer
PDG13G0025TFFJ
Molded Case Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
PDG13G0025TFFJ
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer PDG13G0025TFFJ - 25A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerPDG13M0030TFFJ
30A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13M0020TFFJ
20A 3 Pole Molded Case Circuit Breaker
Eaton / Cutler-HammerPDG13G0015TFFJ
15A 3 Pole Molded Case Circuit Breaker
Description
Delivering 35 kAIC interrupt capacity at 480VAC, the Eaton PDG13G0025TFFJ is a 3-pole, 25A molded case circuit breaker from the Power Defense family. It utilizes a fixed thermal-magnetic trip unit to ensure precise LI protection for commercial and marine applications. This globally rated, RoHS-compliant MCCB mounts into Eaton enclosures, panelboards, and switchboards. The compact Frame 1 design includes standard box lugs and supports a wide range of field-installable accessories.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Series | PDG1 |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Panel Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 18kA @ 600Y/347VAC, 22kA @ 250VDC |
| Frame Type | Complete Breaker |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Power Defense Panelboards, Enclosures, Switchboards |
| Wire Gauge | 14 AWG - 3/0 AWG |
| Max Wire | 3/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, DIN Rail Adapter, Terminal Shields |
|---|---|
| Accessories | Line and Load Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS |
| Approval | CCC, CE, CSA, IEC, RoHS, UL |
| Temp Rating | -20C to 70C |
| Construction Features | Globally Rated, Current Limiting, RoHS Compliant |
Product FAQs
6 answersDoes the Power Defense PDG13G0025TFFJ replace older Eaton or Cutler-Hammer breakers?
Yes, the Eaton Power Defense series is the modern replacement for legacy Series G (EG-Frame) and Series C (F-Frame) molded case circuit breakers.
What does the G in the PDG13G0025TFFJ catalog number indicate?
In the Eaton Power Defense catalog number, the G following the pole count designates the interrupting rating. For this Frame 1 breaker, it indicates a 35kAIC rating at 480VAC.
What type of terminals are included on the PDG13G0025TFFJ?

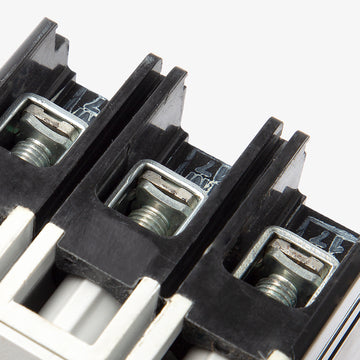

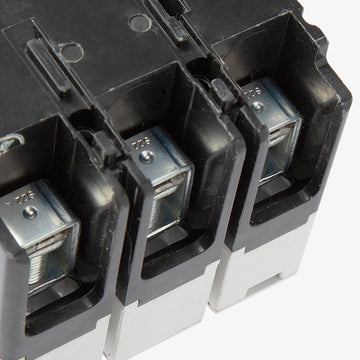

The J suffix in the catalog number indicates that this breaker comes standard with line and load box lugs. These terminals accept wire sizes from 14 AWG to 3/0 AWG.
Is the trip unit on the PDG13G0025TFFJ adjustable?
No, this breaker features a fixed thermal and fixed magnetic (TFF) trip unit. It does not have adjustable trip settings.
Can the Eaton PDG13G0025TFFJ be reverse fed?
Yes, standard Eaton Power Defense Frame 1 molded case circuit breakers can be reverse fed for use on either the line or load side of a circuit.
What equipment is this 25A breaker designed to be installed in?
The PDG13G0025TFFJ is designed for use within Eaton Power Defense panelboards, switchboards, and enclosed circuit breaker assemblies.
