Eaton / Cutler-Hammer PDG23M0060B2NL - 60A 3 Pole Molded Case Circuit Breaker

Re-Certified

$495.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description

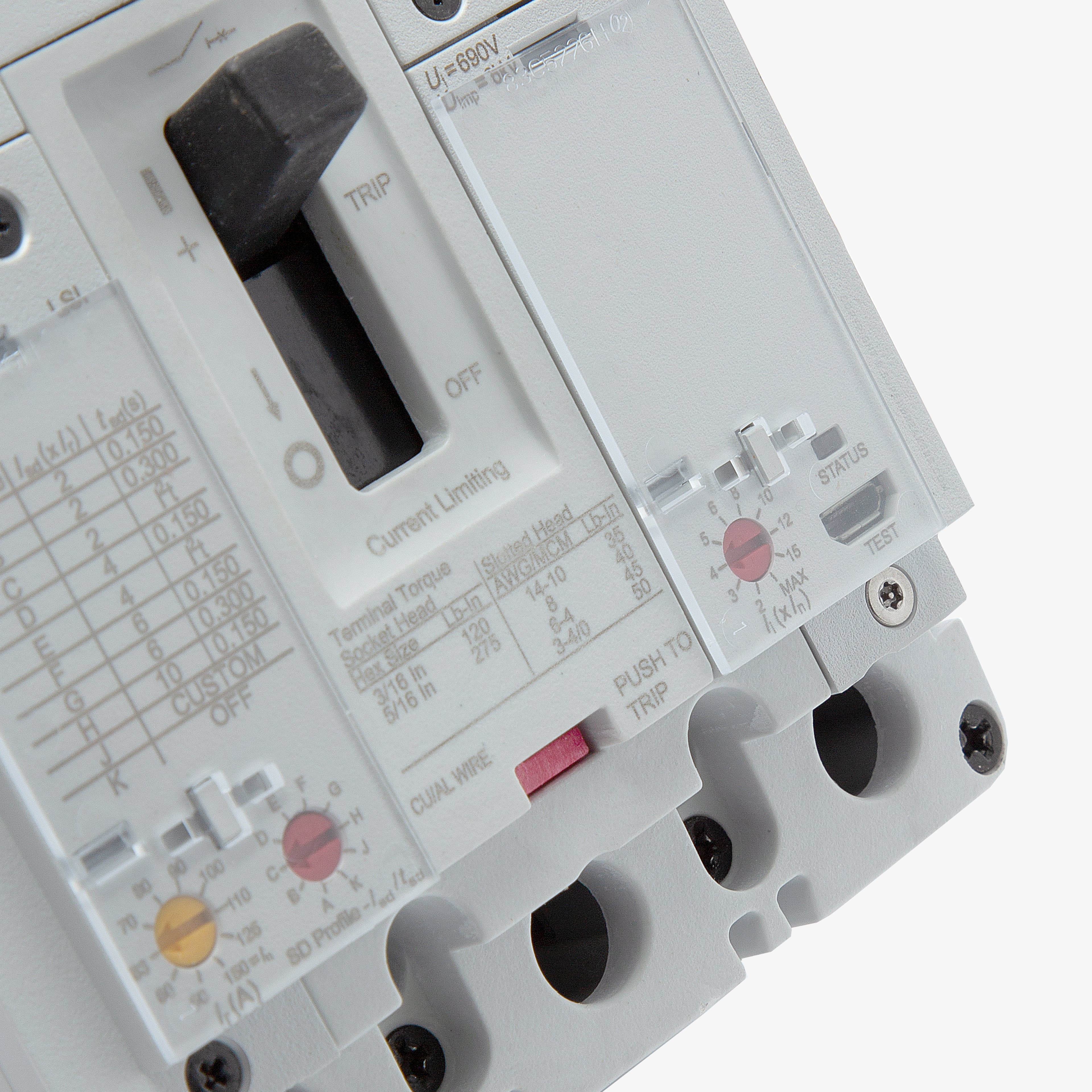

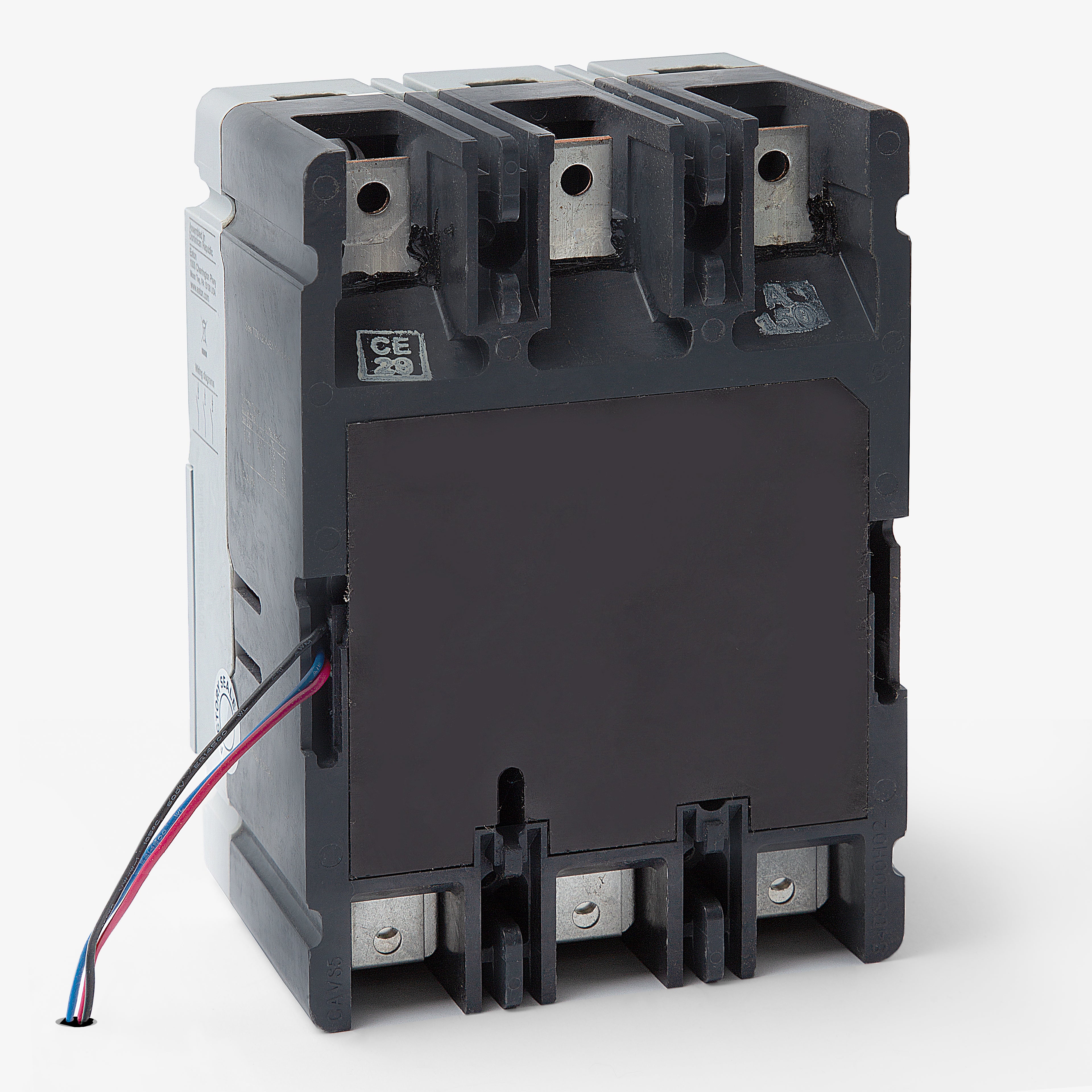

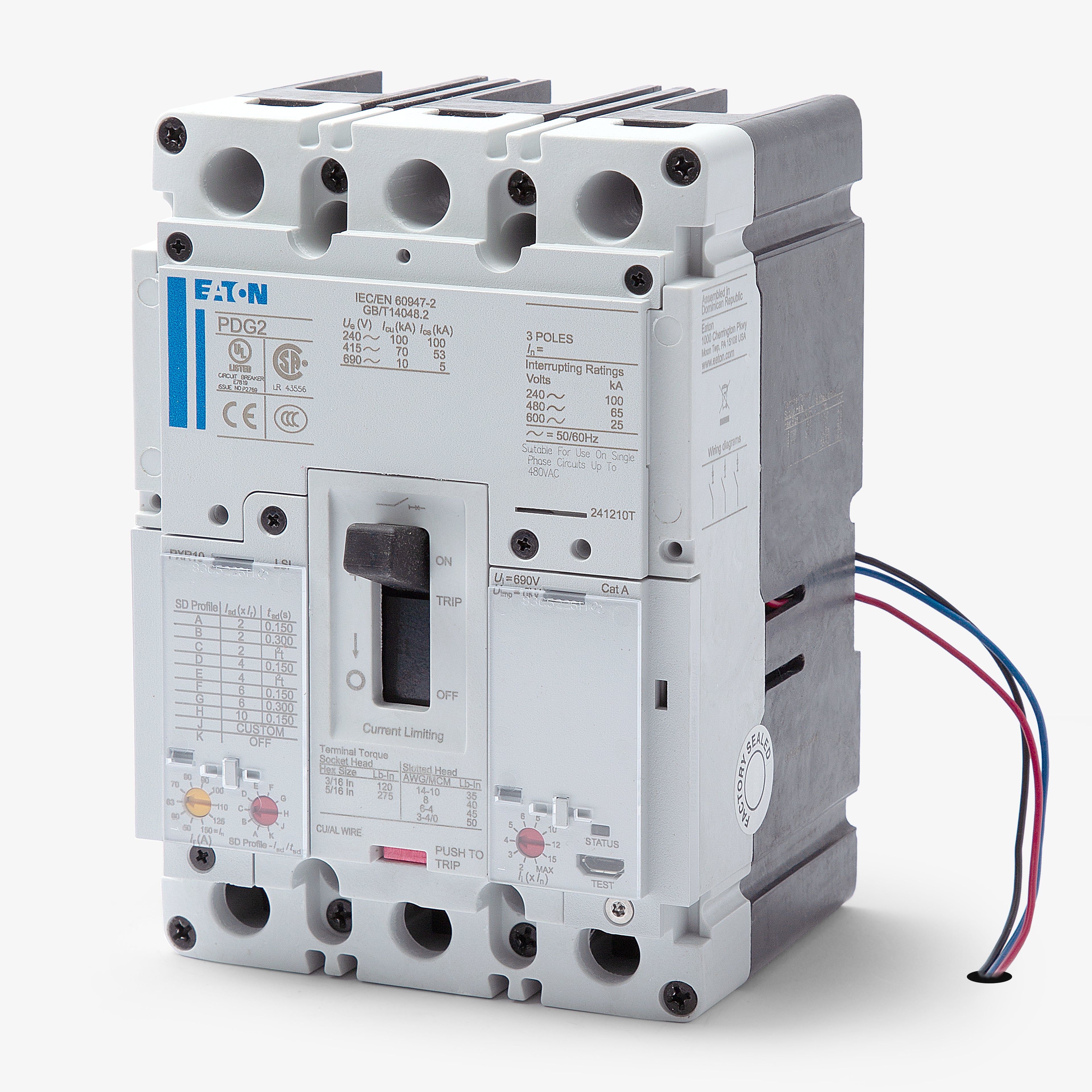

Part of the globally rated Power Defense family, this 60-amp molded case circuit breaker delivers advanced LSI protection for commercial facilities. The integrated PXR10 electronic trip unit allows precise adjustments for long-time, short-time, and instantaneous settings. Designed for panel mount configurations, it fits into Eaton switchboards and enclosures. This unit includes standard load terminals and serves as a modern substitute for discontinued HFDE3060 models.

Specifications

Brand Eaton / Cutler-Hammer
Series PDG2
Amperage 60A
Amperage Range 24-60A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC
Mounting Style Panel Mount

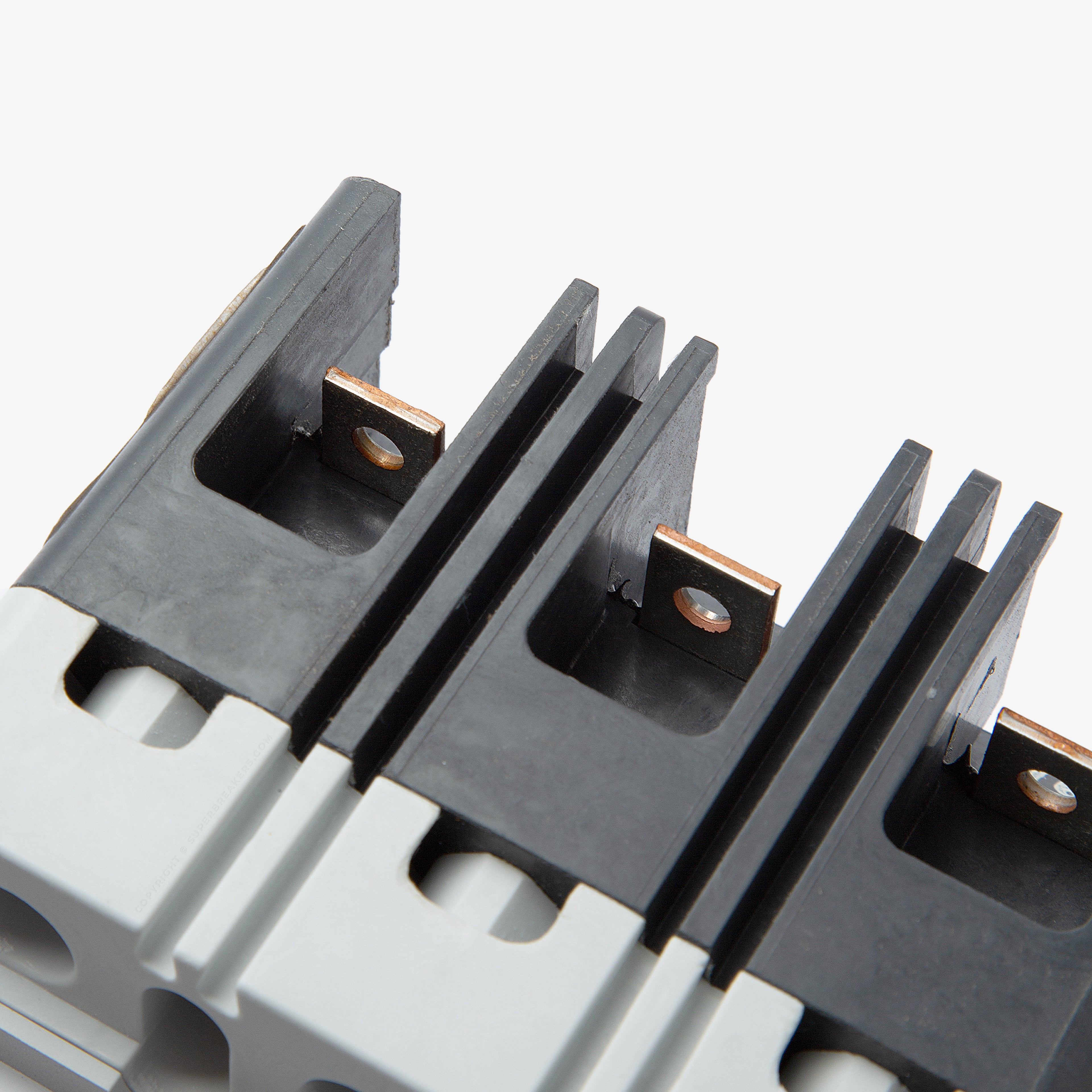

Terminal Type Lugs
For Use With Eaton Power Defense Panelboards, Switchboards, Enclosures
Trip Technology Electronic Trip
Trip Function Code LSI
Trip Function Long-Time, Short-Time, Instantaneous
Trip Adjustability Adjustable
Wire Gauge 14-1/0 AWG (Al/Cu)
Max Wire 1/0 AWG
Min Wire 14 AWG
Available Options Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release
Accessories Standard Load Terminals
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489, RoHS
Approval CCC, CE, CSA, IEC, RoHS, UL
Temp Rating -20C to 70C
Construction Features Current Limiting, Global Rated, RoHS Compliant, PXR10, Breaker Health, Load Alarms
