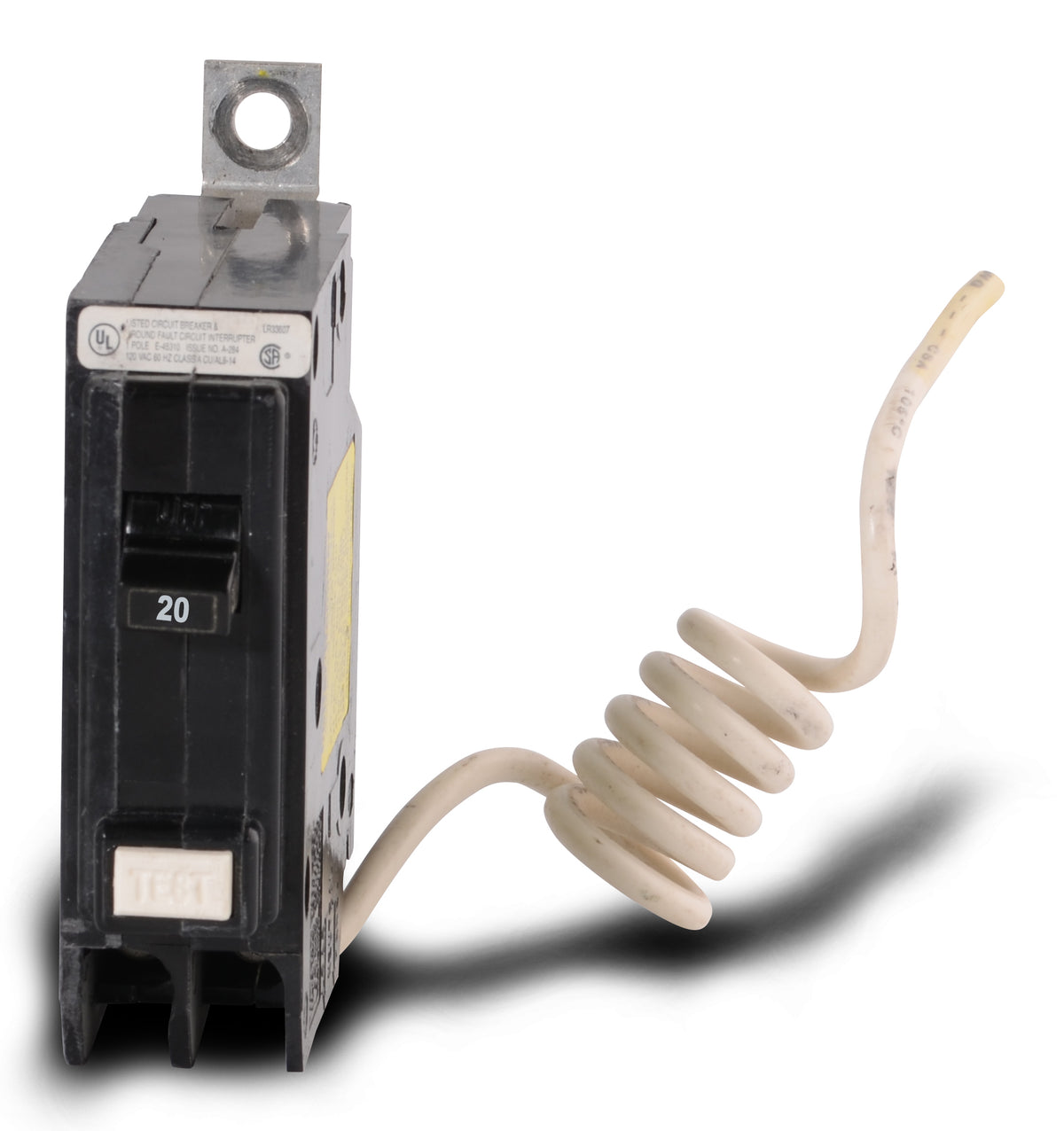

Eaton / Cutler-Hammer QBHGF1020 GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHGF1020
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHGF1020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHGF1020 - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHGF1015
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQCGFT1020
20A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBH1020GF
20A GFCI Miniature Circuit Breaker
Description
Built for commercial and industrial environments, the Eaton QBHGF1020 is a 20A single-pole ground-fault circuit breaker. It provides essential personnel protection by utilizing a 5mA trip sensitivity to quickly interrupt circuits during ground faults. This Quicklag series breaker features a bolt-on mounting style, allowing it to securely install into Eaton Pow-R-Line panelboards. With a 22kAIC rating, it is SWD rated and transitions to the QBHGFT1020 series for future panel upgrades.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHGF1020 |
| Series | QBHGF |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch, Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, High Interrupting Capacity |
Product FAQs
6 answersWhat panelboards are compatible with the QBHGF1020?
This breaker is designed for use in Eaton Pow-R-Line panelboards that accept bolt-on BAB or Quicklag style circuit breakers.
What is the difference between the QBGF1020 and the QBHGF1020?
The 'H' in QBHGF indicates a higher interrupting rating. The QBHGF1020 is rated for 22kAIC at 120V, whereas the standard QBGF1020 is rated for 10kAIC.
What level of ground fault protection does the QBHGF1020 provide?
It is a Class A Ground Fault Circuit Interrupter (GFCI), meaning it features a 5mA trip sensitivity designed specifically for personnel protection against electrical shock.
Does this breaker require a neutral connection to function?
Yes, it features a pigtail neutral wire that must be securely connected to the panelboard's neutral bar for the ground fault detection circuitry to operate correctly.
Can the QBHGF1020 be backfed for use as a main breaker?
No. Eaton specifies that their circuit breakers with ground fault capabilities are not suitable for backfeed or reverse feed applications.
How do I verify the ground fault protection is working after installation?
Once installed and energized, press the built-in test button on the face of the breaker. The breaker should trip immediately, confirming the GFCI circuitry is functioning properly.
