Eaton / Cutler-Hammer QBHGF1015 GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHGF1015
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHGF1015
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

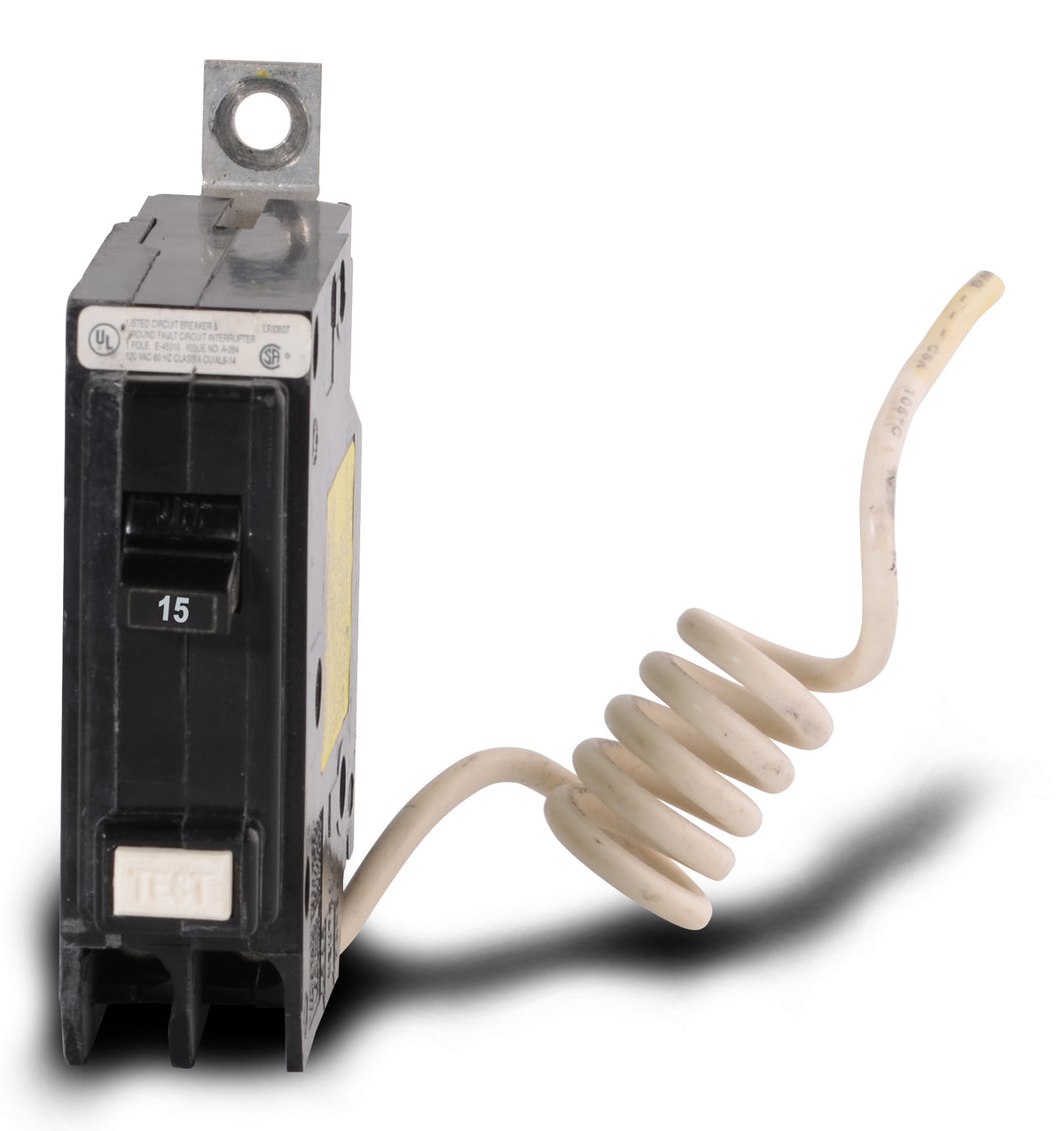

Eaton / Cutler-Hammer QBHGF1015 - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHGFT1015
15A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBGFT1015
15A GFCI Miniature Circuit Breaker
Description
Part of the Quicklag family, the Eaton QBHGF1015 provides 15A ground-fault protection on 120V circuits for commercial and industrial safety. This single-pole breaker utilizes a 5mA trip sensitivity to detect dangerous leakage currents in wet or damp locations. The bolt-on configuration ensures a secure connection when installed into Eaton Pow-R-Line panelboards. Featuring a 22kAIC rating, this thermal-magnetic breaker is SWD rated and transitions to the QBHGFT1015 series for future upgrades.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHGF1015 |
| Series | QBHGF |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120VAC |
| Frame Type | BAB |
|---|---|
| Terminal Type | Box Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment |
| Accessories | Load Side Lugs Included |
| Standards | HACR, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip |
Product FAQs
6 answersWhich Eaton panelboards accept the QBHGF1015 breaker?
This bolt-on Quicklag breaker installs in Eaton Cutler-Hammer Pow-R-Line panelboards, including the PRL1a, PRL2a, PRL3a, and PRL4 series designed for BAB frame breakers.
What level of ground fault protection does this breaker provide?
The QBHGF1015 provides Class A personnel protection with a 5mA trip sensitivity. It is designed to detect dangerous leakage currents and interrupt the circuit to prevent electrical shock in wet or damp environments.
How is the neutral connection handled during installation?
This breaker features a pigtail neutral. The coiled white wire must be routed and secured directly to the panelboard neutral bus bar for the ground fault circuit interrupter to function correctly.
What is the difference between the QBHGF1015 and the QBHGFT1015?
The QBHGFT1015 is the newer, direct replacement for the QBHGF1015. The T designates a self-test feature that automatically verifies the GFCI functionality periodically to comply with updated UL 943 safety standards. Both share the same panel compatibility and 22kAIC rating.
Is the QBHGF1015 suitable for switching lighting circuits?
Yes, this 15-amp breaker is SWD (Switching Duty) rated. It can be safely used as a switch to control 120V fluorescent lighting circuits without damaging the internal contacts.
Is the QBHGF1015 rated for HVAC applications?
Yes, this breaker is HACR rated, meaning it is approved for use with compatible heating, air conditioning, and refrigeration equipment.
