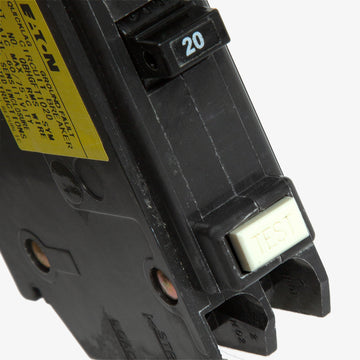

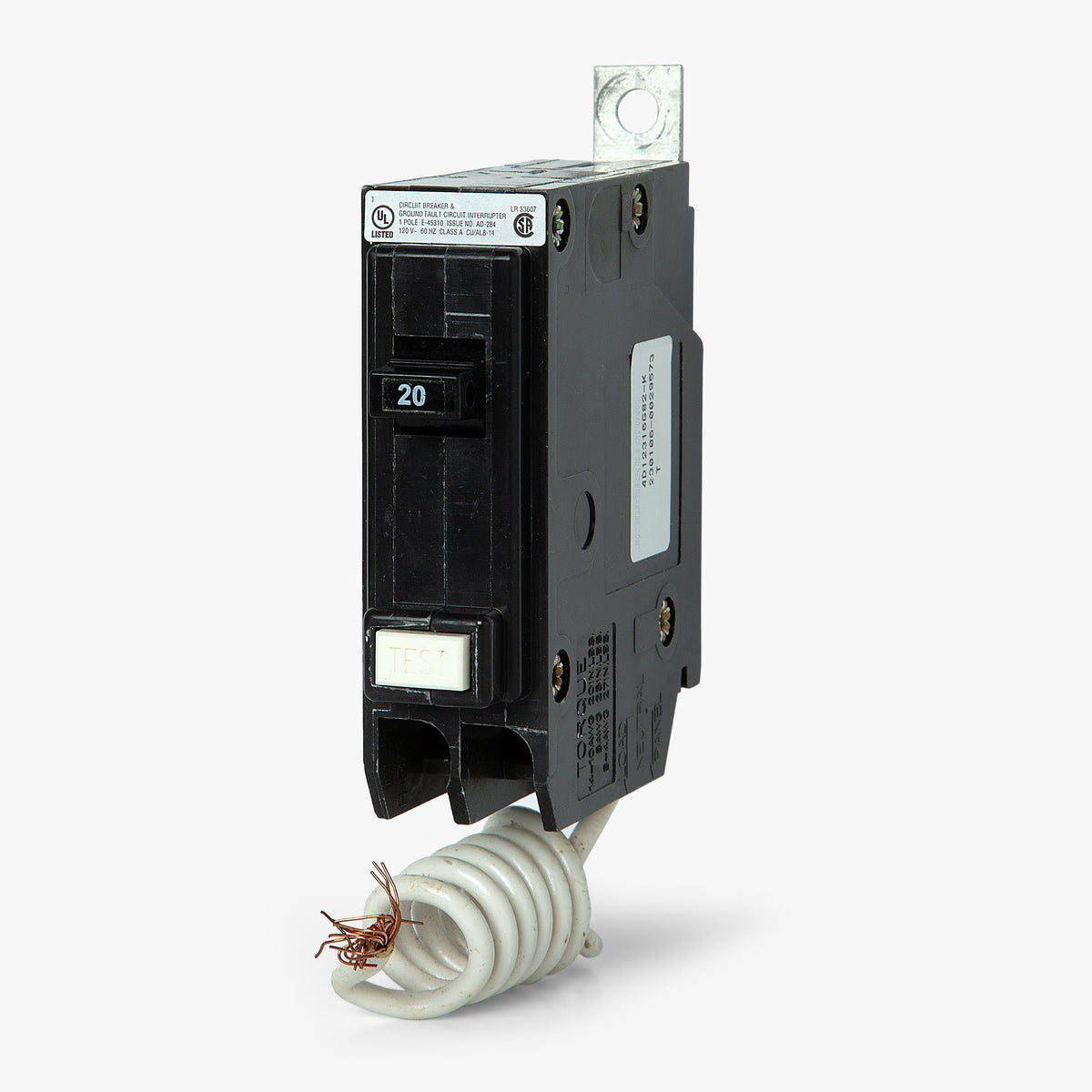

Eaton / Cutler-Hammer QBHGFT1020 GFCI Miniature Circuit Breaker
- 20A
- 1 Pole
- Bolt-On
Eaton / Cutler-Hammer
QBHGFT1020
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
QBHGFT1020
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer QBHGFT1020 - 20A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
Eaton / Cutler-HammerQBHGFT1015
15A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT1030
30A GFCI Miniature Circuit Breaker
Eaton / Cutler-HammerQBHGFT2020
20A GFCI Miniature Circuit Breaker
Description
Rated for 20 amps, this commercial-grade ground fault interrupter includes a pigtail neutral and advanced self-test diagnostics to confirm operational readiness. It fastens into Eaton Pow-R-Line panelboards using a dependable bolt-on connection. The thermal-magnetic trip mechanism delivers a 22kAIC rating at 120/240V, making it ideal for demanding industrial environments requiring strict NEC code compliance. Note that this model is frequently cross-referenced with the QBH1020GF.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | QBHGFT1020 |
| Series | QBHGFT |
| Amperage | 20A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 22kA @ 120/240VAC |
| Frame Type | QBHGFT |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line Panelboards |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Shunt Trip, Auxiliary Switch, Bell Alarm, Padlock Attachment |
| Accessories | Pigtail Neutral |
| Standards | CSA C22.2, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, SWD Rated, Non-Interchangeable Trip, Self-Test |
Product FAQs
6 answersWhat panelboards are compatible with the QBHGFT1020 breaker?
This bolt-on breaker is designed exclusively for use in Eaton Pow-R-Line commercial panelboards. It is not compatible with standard residential plug-on load centers like the BR or CH series.
What level of ground fault protection does the QBHGFT1020 provide?
This breaker provides Class A 5mA ground fault protection. It is designed for personnel safety in damp or wet locations to help prevent electrical shock.
Is there a newer replacement or alternate catalog number for the QBHGFT1020?
Yes, the QBHGFT1020 is frequently cross-referenced with and replaced by the newer Eaton QBH1020GF model, which offers the exact same 20A, 1-pole, 22kAIC specifications and 5mA ground fault protection.
How is the neutral connection wired on this GFCI breaker?
The QBHGFT1020 features a pigtail neutral wire that must be connected directly to the panelboard neutral bar to ensure the ground fault sensing circuitry functions correctly.
What is the difference between the QBGF1020 and the QBHGFT1020?
The primary difference is the interrupting rating. The standard QBGF1020 is rated for 10kAIC, whereas the QBHGFT1020 (indicated by the H in the prefix) is a high-interrupting model rated for 22kAIC at 120/240VAC.
Does this breaker require a specific mounting method?
Yes, the QBHGFT1020 utilizes a bolt-on mounting configuration. It must be securely bolted to the busbar of a compatible Pow-R-Line panelboard, rather than snapping or plugging into place.
