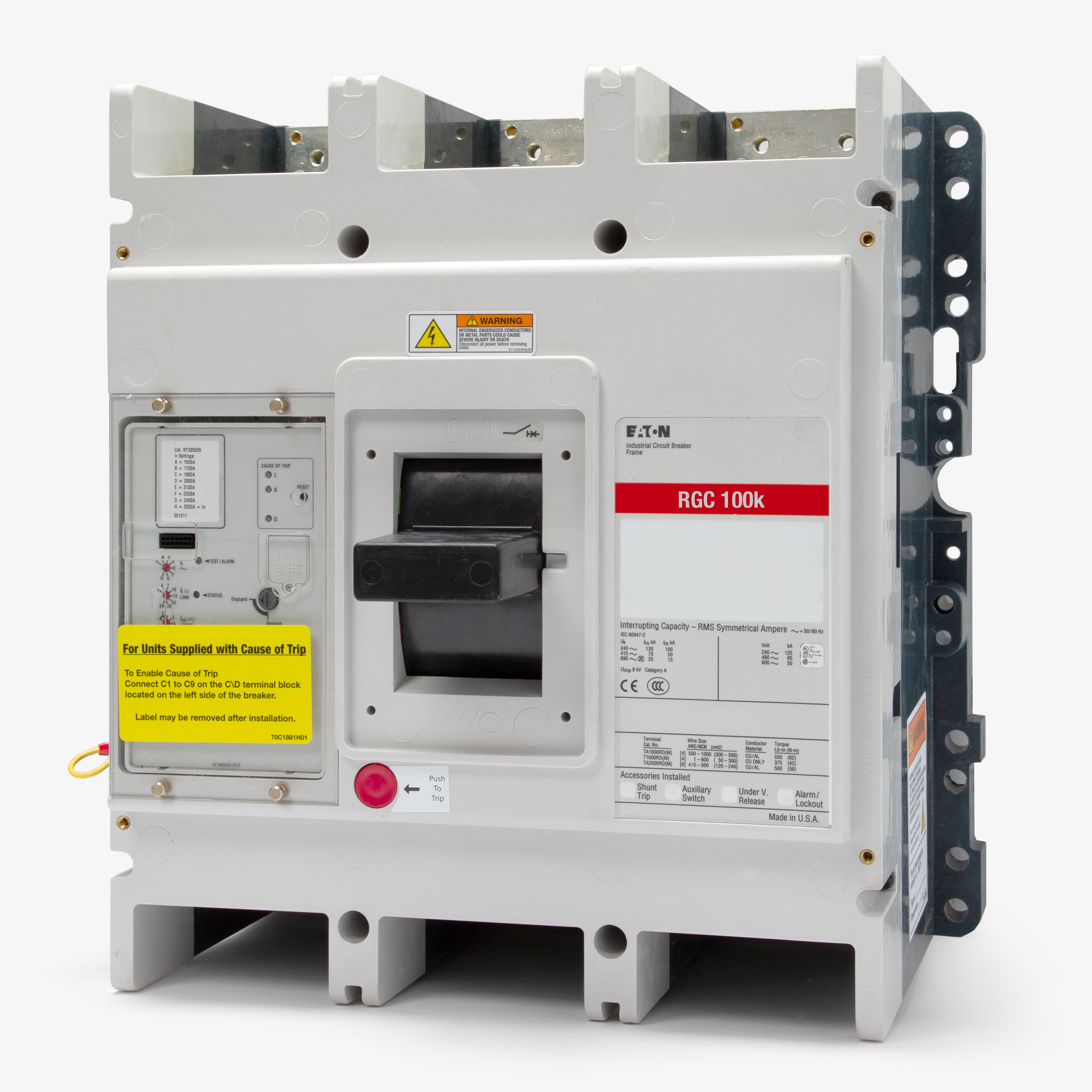

Eaton / Cutler-Hammer RGC320038E - 2000A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGC320038E
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99
Free Shipping Over $99

Eaton / Cutler-Hammer RGC320038E - 2000A 3 Pole Molded Case Circuit Breaker

Brand Eaton / Cutler-Hammer
SKU RGC320038E
Select Item Condition
Earn 43355 SuperPoints

Quantity
Planning a Big Order?
Bulk pricing available—let us know your needs for a quote.
Get a quote
Shop with Confidence
Enjoy a free 60-day warranty, extendable to 1 year at checkout.
Learn more

Eaton / Cutler-Hammer RGC320038E - 2000A 3 Pole Molded Case Circuit Breaker

New

$43355.00 In stock

Quantity

DescriptionSpecificationsSuperClubWarranties
Description
Built for maximum safety, the Eaton RGC320038E is a 2000A, 3-pole Series G molded case circuit breaker. It provides robust power distribution for industrial facilities, featuring an 80% continuous rating and reverse feed capability. Designed for seamless integration, this unit mount MCCB fits into Eaton Series G panelboards and switchboards. It utilizes imperial tapped pads and offers a 100 kAIC rating at 480VAC. The electronic trip unit delivers adjustable LSI protection and ARMS technology.

Specifications

Brand Eaton / Cutler-Hammer
Series RGC
Amperage 2000A
Amperage Range 1000-2000A
Voltage 240VAC, 480VAC, 600VAC
Poles 3
Phase 3
AIC Rating 200kA @ 240VAC, 100kA @ 480VAC, 65kA @ 600VAC
Mounting Style Unit Mount

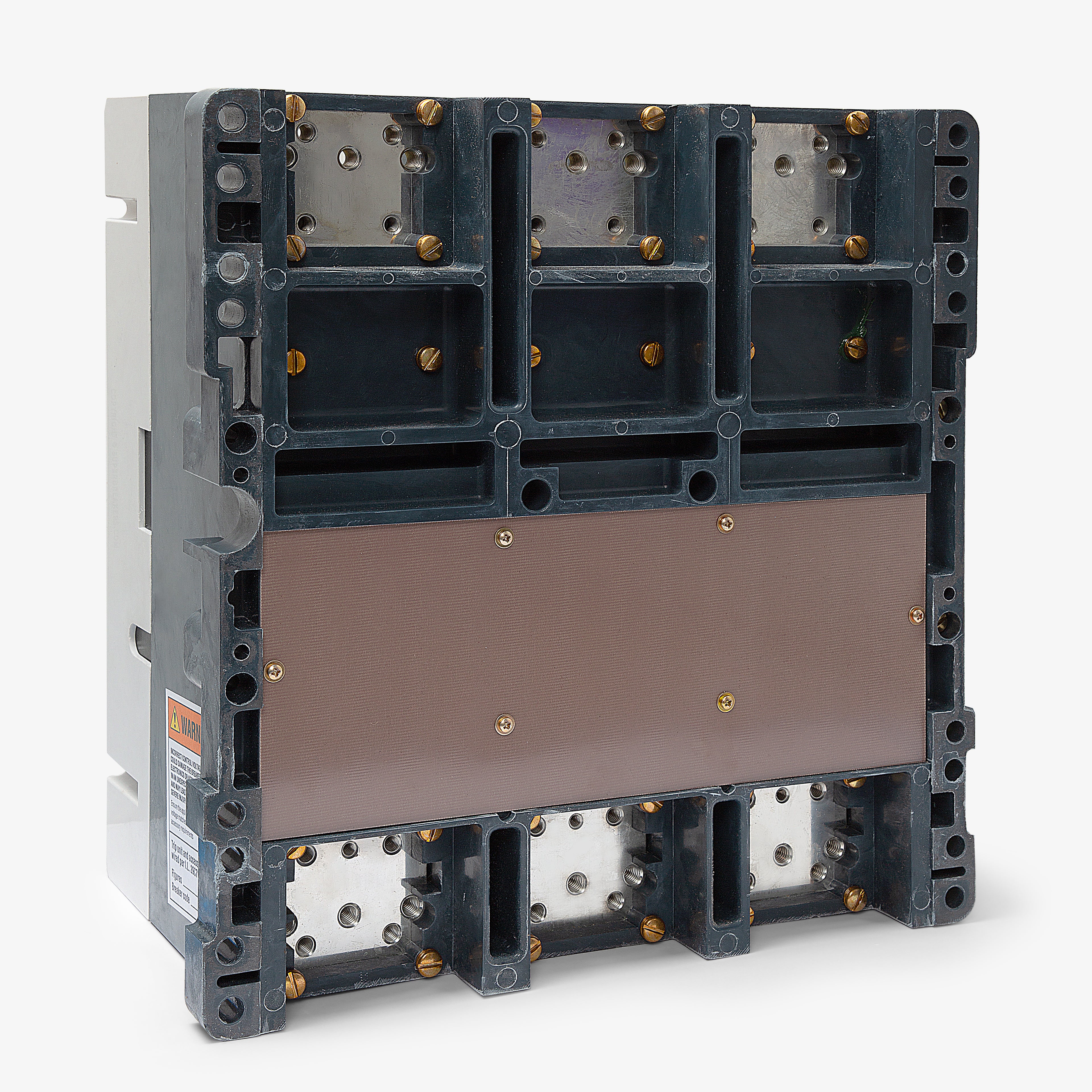

Terminal Type Stud/Tapped Pad
For Use With Eaton Series G Panelboards, Switchboards, Motor Control Centers
Trip Technology Electronic Trip
Trip Function Code LSI
Trip Function Long-Time, Short-Time, Instantaneous
Trip Adjustability Adjustable
Available Options Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment, Motor Operator

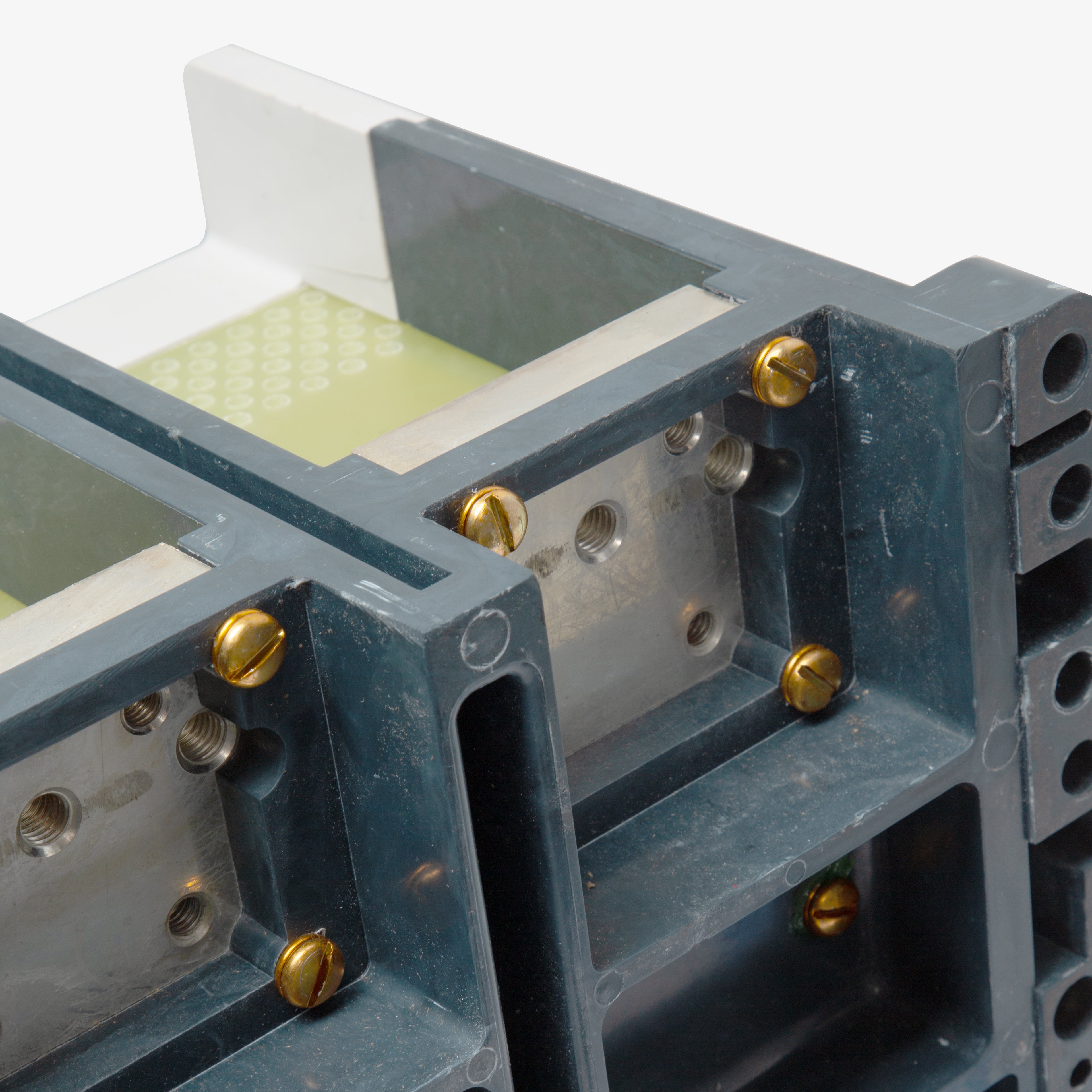

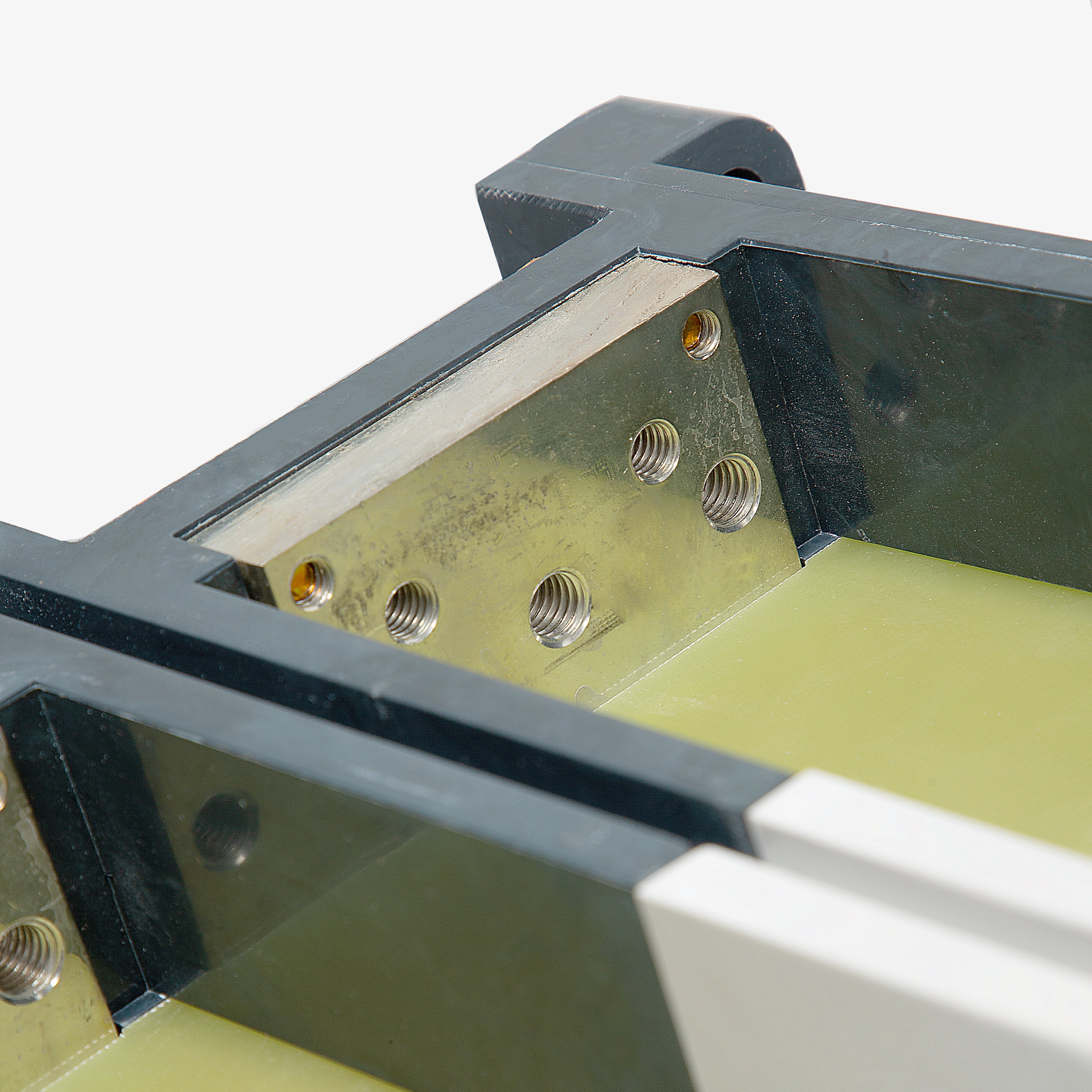

Accessories Imperial Tapped Pads
Standards CSA C22.2 No. 5, IEC 60947-2, UL 489
Approval CCC, CE, CSA, IEC, UL
Temp Rating 40C
Construction Features HACR Rated, Current Limiting, Reverse Feed, 80% Rated, Zone Selective Interlocking (ZSI), Arcflash Reduction Maintenance System (ARMS), Trip-Free Mechanism, Visual Trip Indicator
