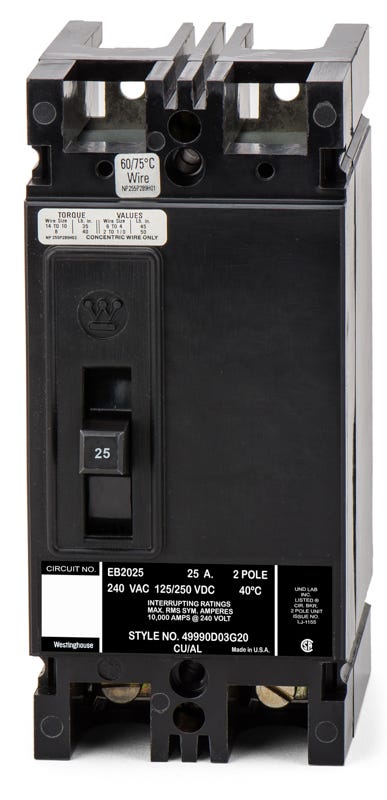

Eaton / Westinghouse EB2025 Molded Case Circuit Breaker
- 25A
- 2 Pole
- Bolt-On
Eaton / Westinghouse
EB2025
Molded Case Circuit Breaker
Brand
Eaton / Westinghouse
SKU
EB2025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Westinghouse EB2025 - 25A 2 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
20A 2 Pole Molded Case Circuit Breaker
40A 2 Pole Molded Case Circuit Breaker
100A 2 Pole Molded Case Circuit Breaker
Description
Serving as a vital maintenance component, the EB2025 delivers fixed thermal and magnetic protection for industrial environments. It helps avoid complete panel upgrades when a single circuit fails. Installation is straightforward for Eaton Pow-R-Line C and vintage Westinghouse panelboards. This configuration acts as the historical predecessor to the current EHD2025 cross-reference. With a standard 10kAIC rating at 240VAC, it features common trip functionality for reliable safety.Specifications
| Brand | Eaton / Westinghouse |
|---|---|
| Part Number | EB2025-R |
| Series | EB |
| Amperage | 25A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 125/250VDC |
| Phase | 1 |
| AIC Rating | 10kA @ 240VAC, 5kA @ 125/250VDC |
| Frame Type | EB |
|---|---|
| Terminal Type | Lugs |
| For Use With | Eaton Pow-R-Line C Panelboards, Westinghouse Panelboards |
| Wire Gauge | 14-1/0 AWG (Cu/Al) |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, NEMA AB-1, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Common Trip, Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the EB2025 circuit breaker?
The EB2025 is designed for use in Eaton Pow-R-Line C panelboards and legacy Westinghouse panelboards that accept bolt-on E-frame breakers.
What wire sizes and materials are approved for the EB2025 lugs?
The standard lugs on this breaker accept both copper and aluminum conductors ranging from 14 AWG to 1/0 AWG.
Can the EB2025 be used in direct current applications?
Yes, in addition to its standard AC ratings, this breaker is rated for 125/250VDC systems with a 5kA interrupting capacity.
What type of protection does the LI trip function provide?
The LI designation means the breaker features a thermal magnetic trip unit providing Long-Time thermal protection against overloads and Instantaneous magnetic protection against short circuits.
Is the EB2025 interchangeable with Cutler-Hammer or Westinghouse branded versions?
Yes, Eaton acquired the Cutler-Hammer and Westinghouse distribution equipment lines. An EB2025 breaker branded as Eaton, Cutler-Hammer, or Westinghouse shares the exact same physical and electrical specifications.
