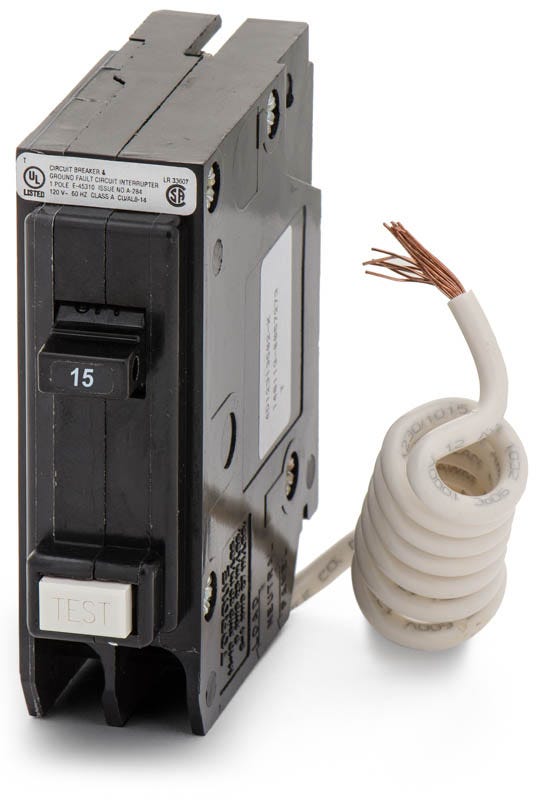

Eaton / Cutler-Hammer GFCB115CS GFCI Miniature Circuit Breaker
- 15A
- 1 Pole
- Plug-On
Eaton / Cutler-Hammer
GFCB115CS
GFCI Miniature Circuit Breaker
Brand
Eaton / Cutler-Hammer
SKU
GFCB115CS
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Eaton / Cutler-Hammer GFCB115CS - 15A GFCI Miniature Circuit Breaker
New
Quantity
Similar Items
20A GFCI Miniature Circuit Breaker
30A GFCI Miniature Circuit Breaker
15A GFCI Miniature Circuit Breaker
Description
Compatible with Eaton BR, Bryant, Challenger, and Westinghouse load centers, this 15-amp single-pole unit delivers Class A ground fault protection. It utilizes a standard pigtail neutral connection to satisfy NEC requirements for wet or damp locations. This specific model comes in convenient clamshell packaging and serves as a reliable replacement option before the transition to the GFTCB115 self-test series. With a 10kAIC rating at 120V, it provides essential thermal-magnetic protection.Specifications
| Brand | Eaton / Cutler-Hammer |
|---|---|
| Part Number | GFCB115CS |
| Series | GFCB |
| Amperage | 15A |
| Poles | 1 |
| Mounting Style | Plug-On |
| Voltage | 120VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | Eaton BR Load Centers, Bryant Load Centers, Challenger Load Centers, Westinghouse Load Centers |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch, Bell Alarm |
| Accessories | Clamshell Packaging |
| Standards | CSA C22.2 No. 144, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated |
Product FAQs
6 answersWhat is the difference between the GFCB115CS and the GFCB115?
Both catalog numbers represent the exact same 15-amp Type BR GFCI breaker. The CS suffix indicates the product is shipped in retail clamshell packaging, while the standard GFCB115 comes in bulk packaging.
Which load centers are approved for use with the GFCB115CS?
This 1-inch Type BR breaker is UL listed for Eaton BR load centers. It is also backward compatible with legacy Bryant, Challenger, and Westinghouse panels that accept Type BR plug-on breakers.
Can I install this pigtail-style GFCI breaker in an Eaton Plug-On Neutral (PON) load center?
Yes. Eaton pigtail breakers are fully compatible with both legacy and newer Plug-On Neutral (PON) panels. When installing in a PON panel, you must still connect the white pigtail wire to the neutral bar to power the ground fault sensing circuitry.
How is the neutral connection handled on the GFCB115CS?
This is a pigtail neutral breaker. The coiled white pigtail wire must be connected directly to the panel neutral bar for the ground fault circuitry to operate. The load neutral wire lands on the designated lug on the breaker itself.
Can I splice or extend the white pigtail wire if it does not reach the neutral bar?
No. Eaton guidelines state that the factory pigtail is the maximum allowable length and cannot be spliced. The breaker must be installed in a panel space where the factory pigtail can reach the neutral assembly.
What level of ground fault protection does this breaker provide?
The GFCB115CS provides Class A ground fault protection, tripping at a 5 mA threshold. This meets NEC requirements for personnel protection in areas prone to moisture, such as kitchens, bathrooms, and outdoor circuits.
