Eaton EGS3080FFG 3 Pole Circuit Breaker

New

$891.16 In stock

Quantity

Description

Eaton EGS3080FFG 3 Pole Circuit Breaker

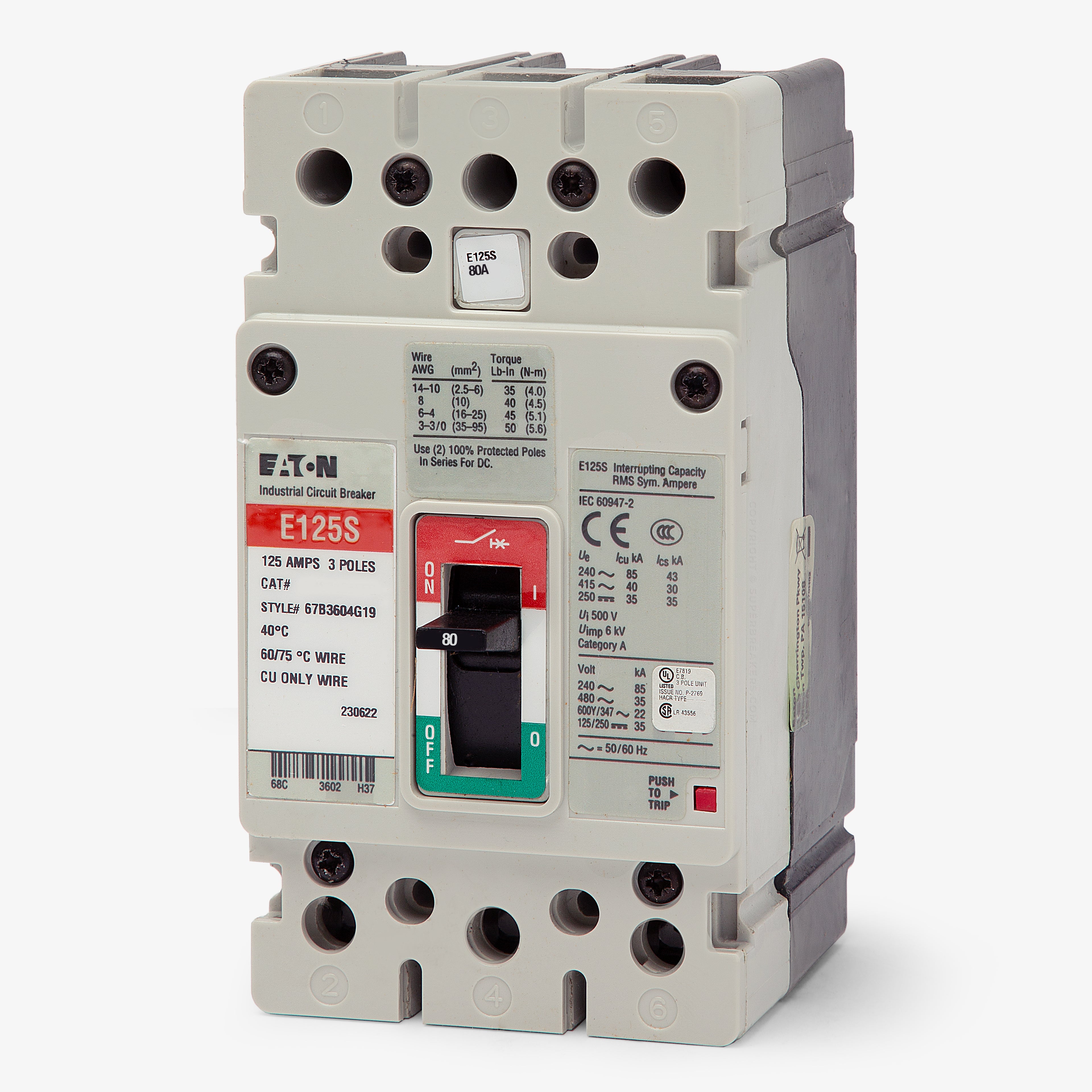

The Eaton EGS3080FFG is a 3 Pole thermal magnetic molded case circuit breaker with a current rating of 80 Amps and a voltage rating of 600Y/347VAC. It has an interrupting rating of 85kAIC at 240VAC, 35kAIC at 480VAC, 22kAIC at 600Y/347VAC. The EGS3080FFG has a feed-thru connection type and includes long time and instantaneous trip functions.

Specifications

Brand Eaton
Series G
Amperage 80
Voltage 600
Poles 3
Phase 3
Mounting Type Panel
Approval CSA, UL, IEC, CE
Interrupting Rating 22 kAIC at 600Y/347 Vac, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac
Frame Type EG
Connection Type Feed-Thru
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Line and load
Length (in) 2.89
Width (in) 3
Height (in) 5.5
Circuit Breaker Type EG
Mpn EGS3080FFG
Upc 782114877203
Gtin 782114877203
