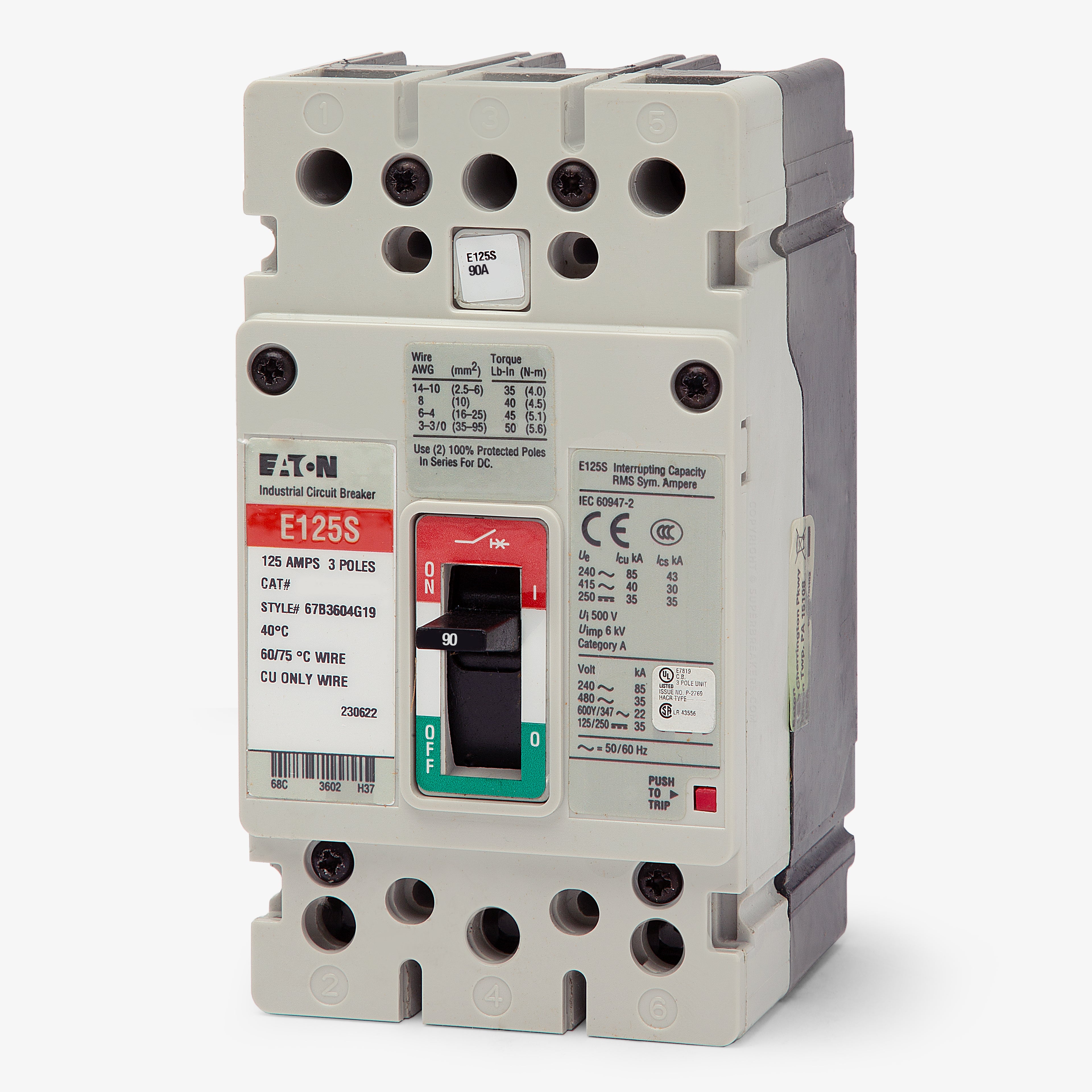

Eaton EGS3090FFG 3 Pole Circuit Breaker

Brand Eaton
SKU EGS3090FFG
(1 Reviews)

Eaton EGS3090FFG 3 Pole Circuit Breaker

Brand Eaton
SKU EGS3090FFG
(1 Reviews)
Select Item Condition

Quantity
Buy Now. Pay Later with Shop Pay.
Earn 828 SuperPoints
Add to Favorites Added to Favorites
Hassle-free returns
Fast and reliable shipping
Free shipping over $99

Eaton EGS3090FFG 3 Pole Circuit Breaker

New

$828.15 In stock

Quantity

Description

Eaton EGS3090FFG 3 Pole Circuit Breaker

Eaton Cutler Hammer 3 Pole circuit breaker features a thermal magnetic molded case for extra protection. The circuit breaker has a current rating of 90 amps with a voltage rating of 600Y/347 Vac. It has an interrupt rating of 35 kAIC at 480 Vac, 85 kAIC at 240 Vac, 22 kAIC at 600Y/347 Vac.

Specifications:


Manufacturer: Eaton / Cutler Hammer
Cat. No: EGS3090FFG
Alternate Part No: EGS3090FFG
Product Type: Circuit Breaker
Trip Unit Type: Fixed Thermal Magnetic
Frame Type: EG
Series: G
Type: Complete breaker
Number Of Pole: 3 Pole
Phase: 3
Voltage Rating: 600Y/347 Vac
Amperage Rating: 90 A
Interrupt Rating: 35 kAIC at 480 Vac, 85 kAIC at 240 Vac, 22 kAIC at 600Y/347 Vac
Terminal Connection: Line and Load
Connection: Feed-Thru
Application: Elec Assemblies, Panels and EOEM - Electrical Assemblies and EOEMs - Other
Functions: LI - Long-Time and Instantaneous
Size: 5.5 Inch H x 3 Inch W x 2.99 Inch D
Mounting: DIN Rail
Approval: CSA, IEC, UL, CE
Brand: Eaton[R]
Authentic Eaton / Cutler Hammer Product

Specifications

Brand Eaton
Series G
Amperage 90
Voltage 600
Poles 3
Phase 3
Mounting Type Din Rail
Approval CSA, IEC, UL, CE
Interrupting Rating 35 kAIC at 480 Vac, 85 kAIC at 240 Vac, 22 kAIC at 600Y/347 Vac
Frame Type EG
Connection Type Feed-Thru
Protection Thermal Magnetic
Functions LI - Long-Time and Instantaneous
Terminal Connection Line and load
Length (in) 2.99
Width (in) 3
Height (in) 5.5
Circuit Breaker Type EG
Mpn EGS3090FFG
Upc 782114877210
Gtin 782114877210
