Eaton EHD1090 1 Pole Circuit Breaker

New

$256.21 In stock

Quantity

Description

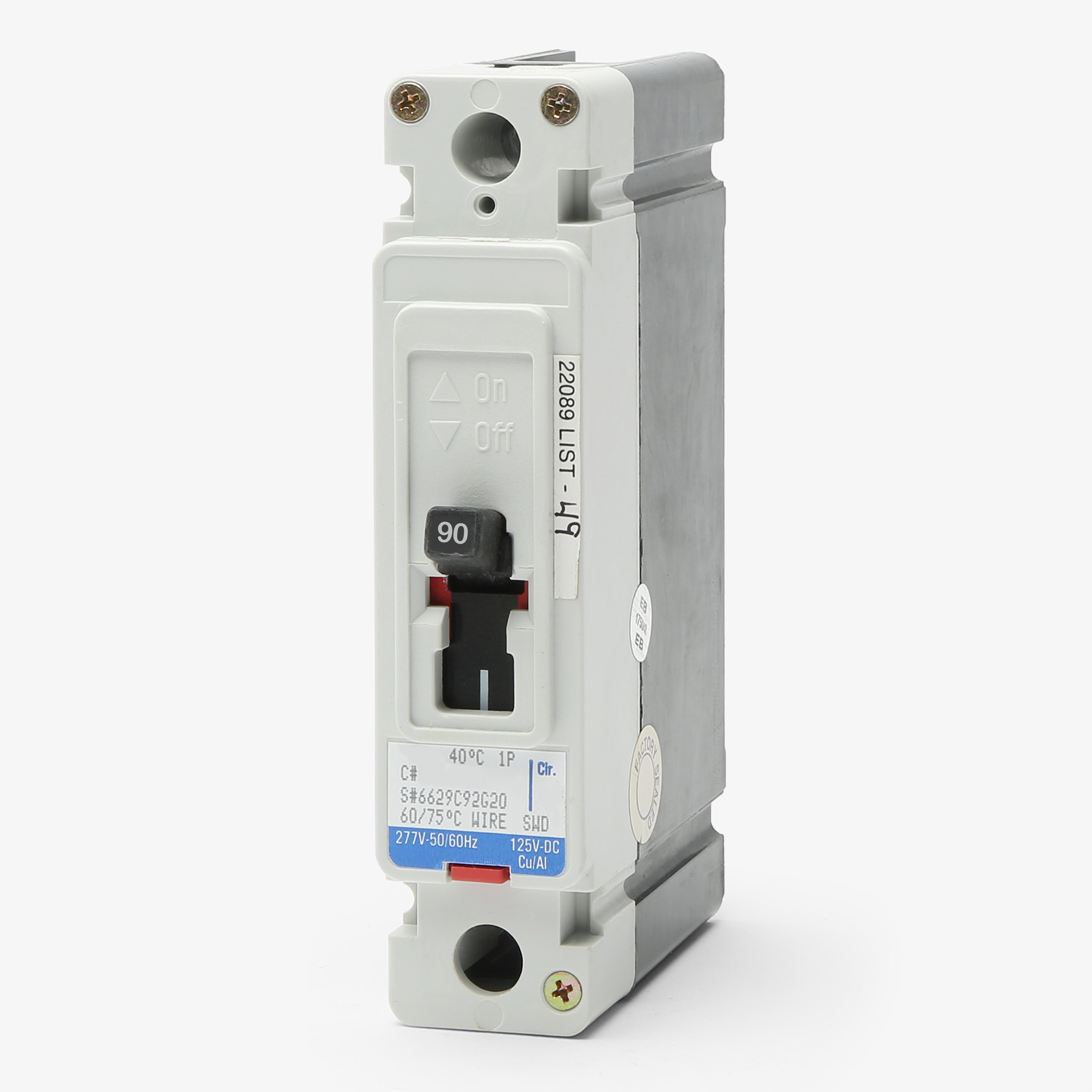

Eaton EHD1090 1 Pole Circuit Breaker

The Eaton EHD1090 is a 1 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 277/480VAC, 125VDC. It has an interrupting rating of 18kAIC at 240VAC, 14kAIC at 480VAC. The EHD1090 has a bolt-on connection type and includes long time and instantaneous trip functions.

Specifications

Brand Eaton
Series C
Amperage 90
Voltage 277/480VAC, 125VDC
Poles 1
Phase 1
Mounting Type Panel
Approval UL
Interrupting Rating 18kAIC at 240VAC, 14kAIC at 480VAC
Frame Type EHD
Connection Type Bolt-On
Protection Thermal Magnetic
Functions Long Time and Instantaneous Trip
Terminal Connection Load Side Lug
Temperature Rating 40 °C
Circuit Breaker Type EHD
