Federal Pacific NE233070 Molded Case Circuit Breaker
- 70A
- 3 Pole
- Bolt-On
Federal Pacific
NE233070
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NE233070
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

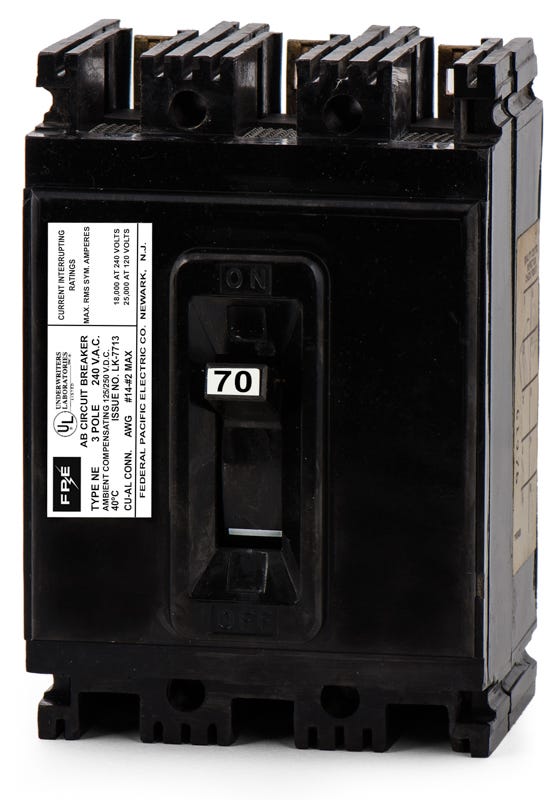

Federal Pacific NE233070 - 70A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
90A 3 Pole Molded Case Circuit Breaker
50A 3 Pole Molded Case Circuit Breaker
45A 3 Pole Molded Case Circuit Breaker
Description
Serving as a reliable component for commercial and industrial power systems, the 70A NE233070 provides essential long-time and instantaneous protection. This three-pole N-frame unit is built to handle 240VAC and 250VDC circuits with an 18kA interrupting capacity. Designed specifically for vintage Federal Pacific NE panelboards, it mounts securely via bolt-on connections.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NE233070-R |
| Series | NE |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 18kA @ 240VAC, 5kA @ 250VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | Federal Pacific NE Panelboards |
| Wire Gauge | 14-1/0 AWG |
| Max Wire | 1/0 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2, UL 489 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip, HACR Rated, Reverse Feed |
Product FAQs
5 answersWhich panelboards accept the Federal Pacific NE233070 circuit breaker?
This bolt-on molded case circuit breaker is engineered exclusively for use in legacy Federal Pacific NE commercial panelboards. It will not fit in standard residential load centers.
Does the NE233070 share the same safety concerns as Federal Pacific Stab-Lok breakers?
No. The NE233070 is a commercial N-frame bolt-on molded case circuit breaker. The well-known safety hazards and high failure rates associated with Federal Pacific are specific to their residential Stab-Lok plug-on breaker lines, not their commercial NE series.
What is the acceptable wire size range for the NE233070 terminals?
The standard lugs on this breaker accept wire gauges from 14 AWG up to 1/0 AWG. Always verify the conductor material and apply the correct torque specifications when terminating the connections.
Can the NE233070 be used in direct current applications?
Yes, in addition to its 240V AC rating, this thermal-magnetic breaker is rated for 250V DC systems, providing a 5kAIC interrupting capacity for DC circuits.
Is the NE233070 considered an obsolete or legacy component?
Yes, Federal Pacific Electric is no longer in business, making original NE series breakers legacy components. They are typically sourced to maintain or repair existing commercial electrical infrastructure without requiring a complete panelboard retrofit.
