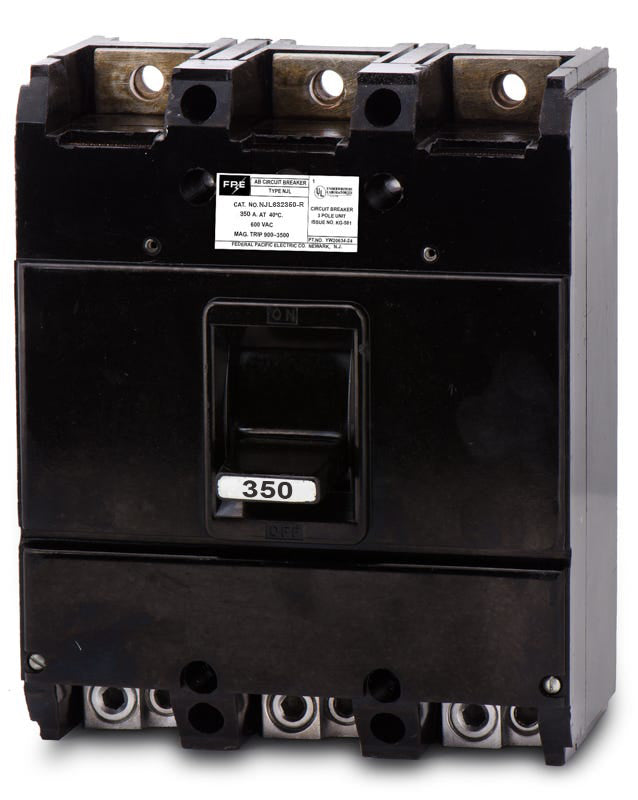

Federal Pacific NJL632350 Molded Case Circuit Breaker
- 350A
- 3 Pole
- Bolt-On
Federal Pacific
NJL632350
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NJL632350
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NJL632350 - 350A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
400A 3 Pole Molded Case Circuit Breaker
300A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Part of the N-Frame family, the Federal Pacific NJL632350 is a 3-pole, 600VAC MCCB. It delivers 350A of current handling with reliable LI functions. This bolt-on breaker fits legacy Federal Pacific switchboards and panelboards. Serving as a direct cross-reference for the NJL631350, it allows contractors to restore older systems quickly. The device offers adjustable magnetic settings via an interchangeable trip unit. It achieves 30 kAIC at 480VAC and features standard load side lugs.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL632350 |
| Series | NJL |
| Amperage | 350A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | NJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Switchboards, Panelboards |
| Wire Gauge | 2/0 AWG - 250 kcmil (x2) or 2/0 AWG - 500 kcmil (x1) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch, Alarm Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | UL 489, NEMA AB 1 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Interchangeable Trip Unit |
Product FAQs
5 answersWhich panelboards and switchboards are compatible with the NJL632350?
This breaker is designed to bolt directly into legacy Federal Pacific switchboards and panelboards configured for N-frame molded case circuit breakers.
What are the acceptable wire sizes for the lugs on the NJL632350?
The terminal lugs accommodate either a single conductor ranging from 2/0 AWG to 500 kcmil, or dual conductors ranging from 2/0 AWG to 250 kcmil per phase.
How does the adjustable magnetic trip function operate on this breaker?
The thermal-magnetic trip unit features a fixed thermal element for long-time overload protection and an adjustable magnetic element. This allows electricians to dial in the instantaneous short-circuit pickup level to coordinate with downstream devices.
Is the Federal Pacific NJL632350 still actively manufactured?
No, Federal Pacific is an obsolete brand. Exact replacements are sourced from legacy inventory to maintain existing electrical infrastructure without requiring a full panelboard retrofit.
How is the NJL632350 secured within the panelboard?
It utilizes a bolt-on connection type, meaning the line-side terminals must be mechanically bolted directly to the panelboard busbars. Proper torque must be applied to ensure a secure, low-resistance connection.
