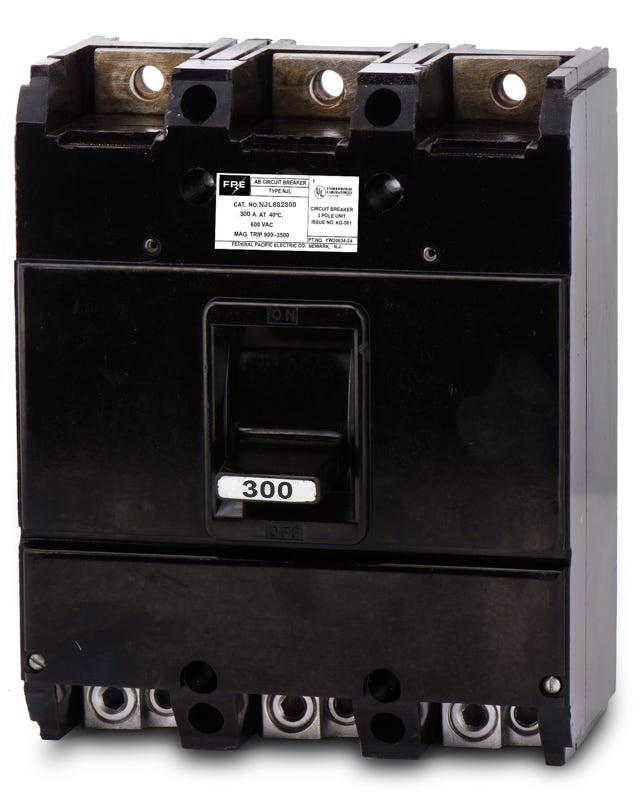

Federal Pacific NJL632300 Molded Case Circuit Breaker
- 300A
- 3 Pole
- Bolt-On
Federal Pacific
NJL632300
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NJL632300
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NJL632300 - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
Quantity
Federal Pacific NJL632300 - 300A 3 Pole Molded Case Circuit Breaker
New
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL632300 |
| Series | NJL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | NJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NJL Panelboards |
| Wire Gauge | 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Sold out
Quantity
Federal Pacific NJL632300 - 300A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL632300 |
| Series | NJL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | NJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NJL Panelboards |
| Wire Gauge | 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Similar Items
250A 3 Pole Molded Case Circuit Breaker
400A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
Description
Part of the legacy N-Frame series, the Federal Pacific NJL632300 is a 3-pole, 300A molded case circuit breaker. It delivers dependable thermal-magnetic protection for commercial and industrial power distribution networks. This bolt-on breaker is engineered for exact compatibility with Federal Pacific NJL panelboards, ensuring a safe fit. It serves as a reliable substitute for NJL631300 and NJL633300 models. It provides a 30kAIC rating at 480VAC and accepts 250 to 500 kcmil wiring.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL632300 |
| Series | NJL |
| Amperage | 300A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | NJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific NJL Panelboards |
| Wire Gauge | 250 kcmil - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
5 answersWhich panelboards are compatible with the NJL632300 circuit breaker?
This bolt-on breaker is designed specifically for use in legacy Federal Pacific NJL series panelboards and switchboards.
What are the acceptable wire sizes for the lugs on the NJL632300?
The standard factory lugs accept aluminum or copper conductors ranging from 250 kcmil to 500 kcmil. Ensure proper torque specifications are followed during installation.
How does the fixed thermal magnetic trip unit operate on this N-Frame breaker?
The LI (Long-Time, Instantaneous) trip unit provides non-adjustable thermal protection against sustained overloads and fixed magnetic protection for immediate short-circuit clearing.
Is the Federal Pacific NJL632300 still in active production?
Federal Pacific is a legacy brand and no longer manufactures new molded case circuit breakers. When replacing an NJL frame, facilities must either source exact legacy replacements or consult an engineer for a modern retrofit kit.
Does the NJL632300 share the same design as Federal Pacific Stab-Lok breakers?
No. The NJL632300 is a heavy-duty industrial molded case circuit breaker with a bolt-on connection. It is completely different from the residential Stab-Lok plug-on design.
