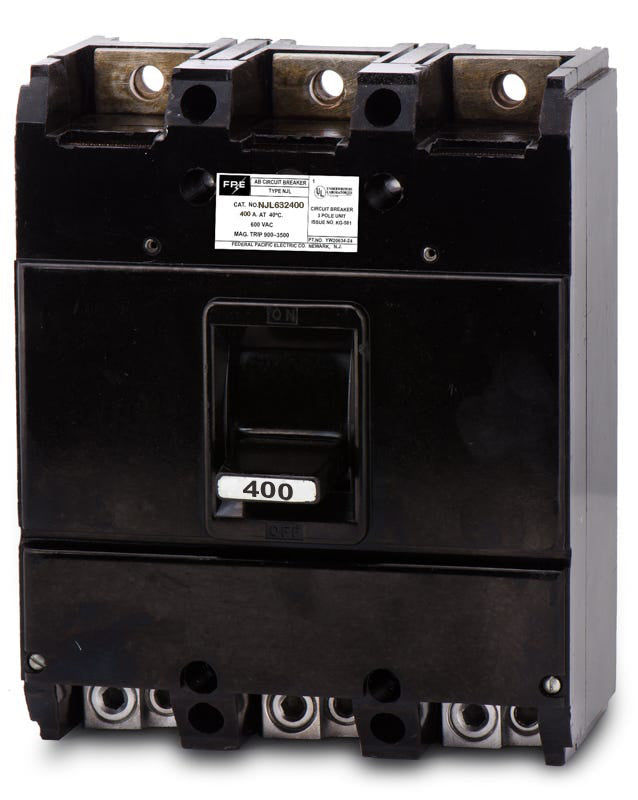

Federal Pacific NJL632400 Molded Case Circuit Breaker
- 400A
- 3 Pole
- Bolt-On
Federal Pacific
NJL632400
Molded Case Circuit Breaker
Brand
Federal Pacific
SKU
NJL632400
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
Federal Pacific NJL632400 - 400A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
300A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
250A 3 Pole Molded Case Circuit Breaker
Description
Maintaining legacy power distribution networks is simple with the Federal Pacific NJL632400. This 400-amp, 3-pole molded case circuit breaker is engineered for commercial applications requiring up to 600VAC. The bolt-on design ensures a secure fit into existing Federal Pacific switchboards and panelboards. By utilizing this exact-match component, facility managers bypass the need for extensive panel modifications. A 30kAIC rating at 480V guarantees reliable interruption during short circuits.Specifications
| Brand | Federal Pacific |
|---|---|
| Part Number | NJL632400 |
| Series | NJL |
| Amperage | 400A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 600VAC |
| Phase | 3 |
| AIC Rating | 42kA @ 240VAC, 30kA @ 480VAC, 22kA @ 600VAC |
| Frame Type | NJL |
|---|---|
| Terminal Type | Lugs |
| For Use With | Federal Pacific Switchboards, Panelboards |
| Wire Gauge | 2/0 AWG - 250 kcmil (x2) or 2/0 AWG - 500 kcmil (x1) (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 2/0 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Adjustable Magnetic |
| Available Options | Shunt Trip, Undervoltage Release, Auxiliary Switch |
|---|---|
| Accessories | Load Side Lugs |
| Standards | NEMA AB 1, UL 489 |
| Approval | UL |
| Temp Rating | 40C |
| Construction Features | Non-Interchangeable Trip |
Product FAQs
4 answersWhat wire sizes are accepted by the standard lugs on the NJL632400?
The terminals accommodate either two 2/0 AWG - 250 kcmil conductors or a single 2/0 AWG - 500 kcmil conductor. The lugs are rated for both aluminum and copper wiring.
What type of enclosures are compatible with the NJL632400 breaker?
This N-frame breaker is designed specifically for bolt-on installation in legacy Federal Pacific panelboards and switchboards.
Can the trip settings on the NJL632400 be adjusted in the field?
The thermal element for long-time protection is fixed, but the magnetic instantaneous trip function is adjustable to coordinate with downstream loads.
Are new Federal Pacific NJL632400 breakers still being manufactured?
Federal Pacific Electric is no longer in business. This breaker is supplied to support and maintain existing legacy FPE switchboards and panelboards.
