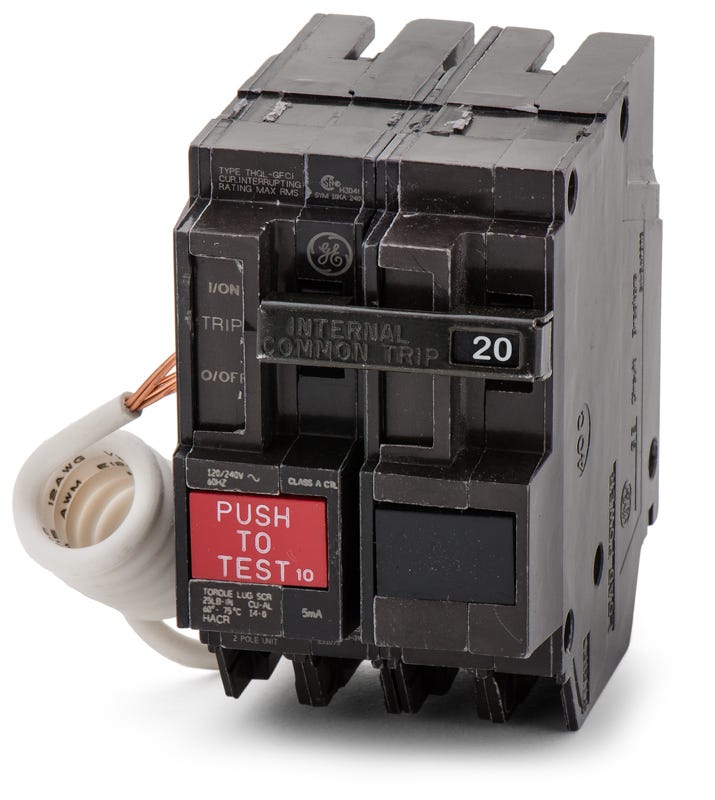

ABB / General Electric THQL2120GF GFCI Miniature Circuit Breaker
- 20A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2120GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2120GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric THQL2120GF - 20A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2120GF |
| Series | THQL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Sold out
Quantity
ABB / General Electric THQL2120GF - 20A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2120GF-R |
| Series | THQL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2120GFT
20A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2125GFT
25A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2130GFT
30A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial use, the THQL2120GF delivers reliable 5mA Class A ground fault protection. This 2-pole, 20A breaker helps meet NEC requirements for wet or damp locations. It installs into GE PowerMark Gold and ABB ReliaHome load centers using a standard plug-on mount. This model is replaced by the THQL2120GFT self-test version. Featuring a pigtail neutral and thermal-magnetic trip technology, this Q-Line breaker ensures robust defense against electrical hazards.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2120GF |
| Series | THQL |
| Amperage | 20A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, ABB ReliaHome Load Centers |
| Wire Gauge | 14-8 AWG (Cu), 12-8 AWG (Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Shunt Trip, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, UL 489, UL 943 |
| Approval | UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
5 answersDoes the THQL2120GF fit older GE residential load centers?
Yes. In addition to current ABB ReliaHome and GE PowerMark Gold panels, this 1-inch Q-Line breaker is backward compatible with legacy GE residential panels that accept standard THQL plug-on breakers.
What is the ground fault trip threshold for this breaker?
This breaker provides Class A personnel protection with a 5mA ground fault trip threshold.
How is the pigtail neutral wired on this 2-pole GFCI?
The coiled white pigtail wire connects directly to the neutral bus bar in the load center. The neutral wire from the branch circuit and both ungrounded (hot) conductors connect directly to the box lugs on the breaker itself.
When is a 20A 2-pole GFCI breaker typically required?
It is used for 240V circuits or 120/240V multi-wire branch circuits (MWBC) in wet or damp locations that mandate personnel protection, such as specific pool equipment, hot tubs, or outdoor receptacles.
What is the difference between the THQL2120GF and the THQL2120GFT?
The THQL2120GFT is the newer, self-testing version of the standard THQL2120GF. Both are 20A, 2-pole, Class A GFCI breakers with identical dimensions and plug-on mounting profiles, making them exact drop-in replacements for each other.
