ABB / General ElectricTHQL2140GF1
Free Shipping Over $99

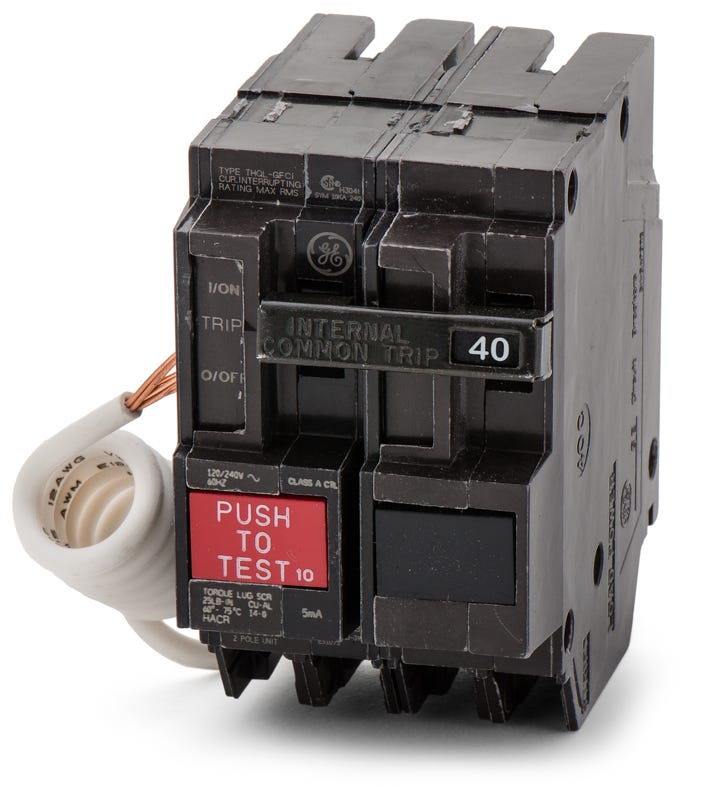

ABB / General Electric THQL2140GF GFCI Miniature Circuit Breaker
- 40A
- 2 Pole
- Plug-On
ABB / General Electric
THQL2140GF
GFCI Miniature Circuit Breaker
Brand
ABB / General Electric
SKU
THQL2140GF
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric THQL2140GF - 40A GFCI Miniature Circuit Breaker
New
Quantity
Sold out
Quantity
ABB / General Electric THQL2140GF - 40A GFCI Miniature Circuit Breaker
Re-Certified
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2140GF-R |
| Series | THQL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Quantity
ABB / General Electric THQL2140GF - 40A GFCI Miniature Circuit Breaker
New
Quantity
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2140GF |
| Series | THQL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Similar Items
ABB / General ElectricTHQL2140GFT2
40A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2145GFT2
45A GFCI Miniature Circuit Breaker
ABB / General ElectricTHQL2150GF
50A GFCI Miniature Circuit Breaker
Description
Built for residential and commercial use, the GE THQL2140GF provides 5mA Class A ground-fault protection. This 40A, two-pole miniature breaker operates at 120/240VAC with a pigtail neutral. It fits seamlessly into GE PowerMark Gold, A-Series panelboards, and ABB ReliaHome load centers. This unit is replaced by the newer THQL2140GFT. Featuring a 10kAIC rating and thermal-magnetic trip technology, it includes quick-make/quick-break mechanisms and is HACR rated for HVAC applications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | THQL2140GF |
| Series | THQL |
| Amperage | 40A |
| Poles | 2 |
| Mounting Style | Plug-On |
| Voltage | 120/240VAC |
| Phase | 1 |
| AIC Rating | 10kA @ 120/240VAC |
| Terminal Type | Box Lugs |
|---|---|
| For Use With | GE PowerMark Gold Load Centers, GE A-Series Panelboards, ABB ReliaHome Load Centers |
| Wire Gauge | 8-3 AWG (Cu), 8-3 AWG (Al) |
| Max Wire | 3 AWG |
| Min Wire | 8 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LIG |
| Trip Function | Long-Time, Instantaneous, Ground Fault |
| Trip Adjustability | Fixed |
| Special Classification | GFCI |
|---|---|
| Available Options | Padlock Attachment, Auxiliary Switch |
| Accessories | Pigtail Neutral |
| Standards | HACR, NEMA AB 1, UL 489, UL 943 |
| Approval | CSA, UL |
| Temp Rating | 60C to 75C |
| Construction Features | HACR Rated, Common Trip, Quick-Make/Quick-Break |
Product FAQs
6 answersWhat panels are compatible with the THQL2140GF breaker?
This breaker is designed for use in GE PowerMark Gold load centers, GE A-Series panelboards, and ABB ReliaHome load centers.
Are ABB and GE THQL circuit breakers interchangeable?
Yes. ABB acquired GE Industrial Solutions, so THQL breakers branded under either ABB or General Electric belong to the same product line and are fully interchangeable.
How much panel space does this 2-pole breaker require?
The THQL series features a standard 1-inch per pole design. As a 2-pole breaker, it requires two adjacent 1-inch spaces, taking up a total of 2 inches of bus space in the panel.
What level of ground fault protection does the THQL2140GF provide?
This breaker provides Class A 5mA ground fault protection, which is designed for personnel safety in wet or damp locations to meet NEC requirements.
How is the neutral connection made on this GFCI breaker?
The THQL2140GF features a pigtail neutral wire that must be connected directly to the neutral bus bar in the panel to enable proper ground fault detection.
What wire sizes are accepted by the box lugs on this 40A breaker?
The terminal lugs accept 8 AWG to 3 AWG copper or aluminum conductors.
