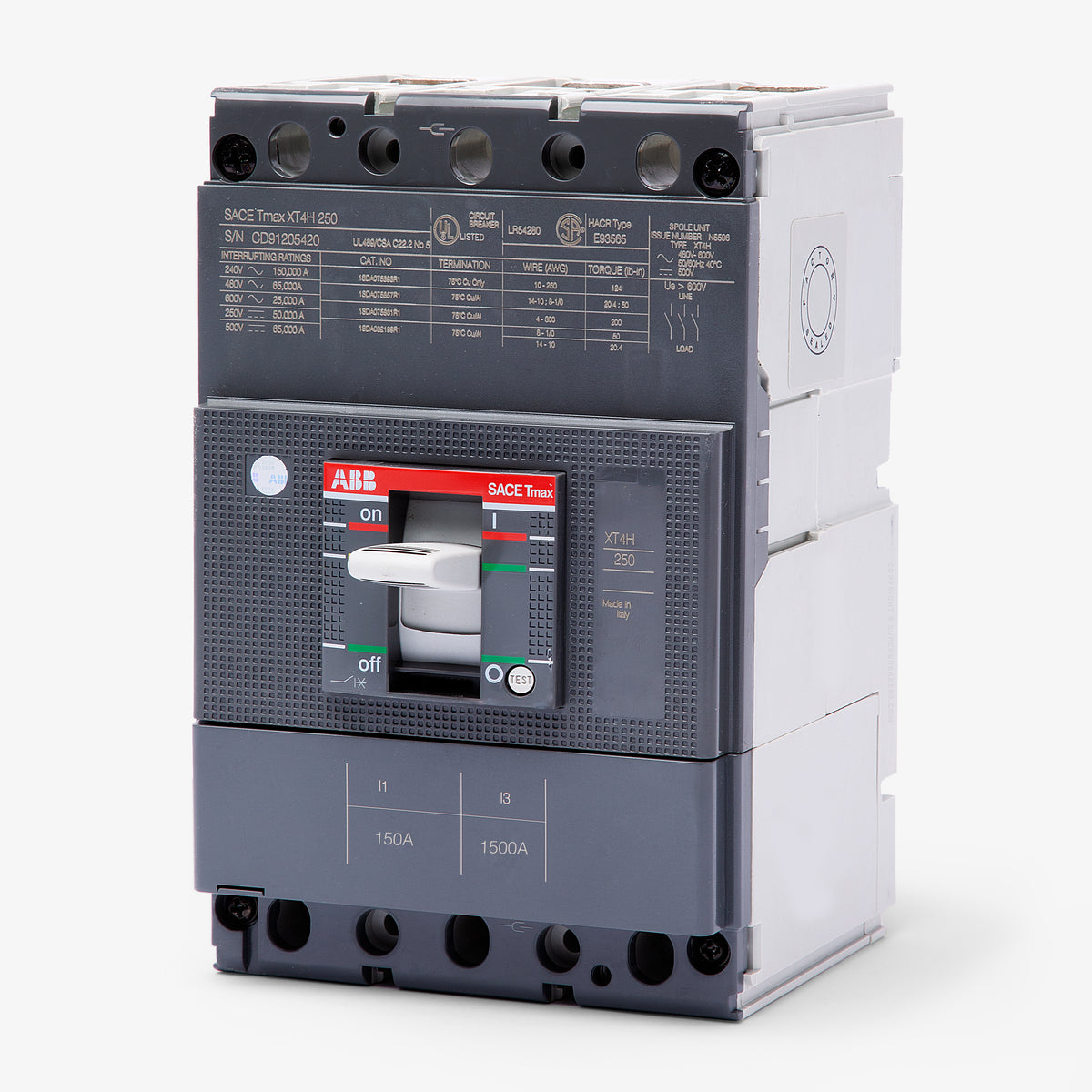

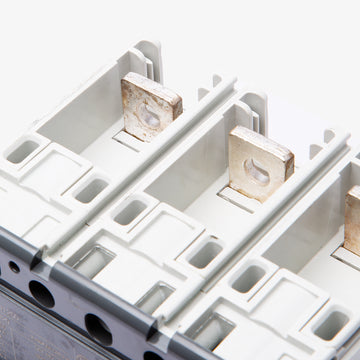

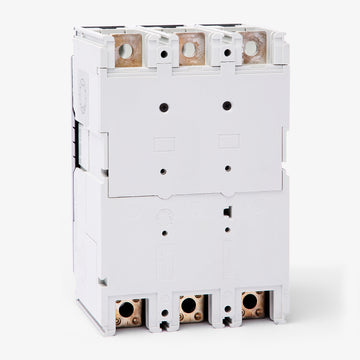

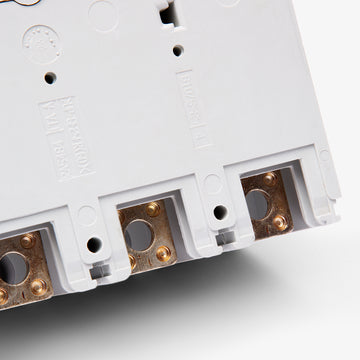

ABB XT4HU3150AFJ000XXX Molded Case Circuit Breaker
- 150A
- 3 Pole
- Unit Mount
ABB
XT4HU3150AFJ000XXX
Molded Case Circuit Breaker
Brand
ABB
SKU
XT4HU3150AFJ000XXX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB XT4HU3150AFJ000XXX - 150A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
125A 3 Pole Molded Case Circuit Breaker
200A 3 Pole Molded Case Circuit Breaker
100A 3 Pole Molded Case Circuit Breaker
Description
Engineered for industrial power distribution, the ABB XT4HU3150AFJ000XXX is a 3-pole, 150A molded case circuit breaker from the SACE Tmax XT family. It utilizes a fixed thermal-magnetic trip unit to deliver consistent overload and short-circuit protection. This unit-mount MCCB installs into ABB SACE Tmax XT panelboards and enclosures. It serves as a seamless replacement for legacy T4H150 breakers. Rated for 150kAIC at 240V, the XT4H frame provides robust current-limiting performance.Specifications
| Brand | ABB |
|---|---|
| Series | XT4 |
| Amperage | 150A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600VAC, 250VDC, 600VDC |
| Phase | 3 |
| AIC Rating | 150kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 50kA @ 250VDC, 65kA @ 600VDC |
| Frame Type | XT4H |
|---|---|
| Terminal Type | Lugs |
| For Use With | ABB SACE Tmax XT Panelboards, Switchboards, Enclosures |
| Wire Gauge | 4 AWG - 300 kcmil |
| Max Wire | 300 kcmil |
| Min Wire | 4 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Padlock Attachment |
|---|---|
| Accessories | Load Side Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CCC, CSA, cULus, IEC, KEMA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed |
Product FAQs
7 answersWhat equipment is the XT4HU3150AFJ000XXX breaker compatible with?
This unit mount breaker is designed for installation in ABB SACE Tmax XT panelboards, switchboards, and compatible standalone enclosures.
What does the H in the XT4H frame designation stand for?
The H indicates a High interrupting capacity frame. This provides robust current limiting performance, delivering up to 65kAIC at 480VAC and 150kAIC at 240VAC.
What wire sizes do the standard lugs on this breaker accept?
The factory lugs are designed to terminate conductors ranging from 4 AWG to 300 kcmil.
How does the TMF trip unit function on this breaker?
The Thermal Magnetic Fixed (TMF) trip unit provides a fixed thermal threshold for overload protection and a fixed magnetic threshold for short circuit protection.
How is this circuit breaker mounted?
It is a bolt-on, unit mount breaker that secures directly to the backpan of a panel or enclosure using standard mounting hardware.
Is this ABB XT4 breaker rated for DC voltage systems?
Yes, it is rated for DC applications, offering an interrupting capacity of 50kA at 250VDC and 65kA at 600VDC.
What is the maximum amperage capacity of the XT4 frame?
The SACE Tmax XT4 frame supports a maximum continuous current of 250A, although this specific configuration is factory set to 150A.
