ABB / General Electric FBH36TE015RV Molded Case Circuit Breaker
- 15A
- 3 Pole
- Bolt-On
ABB / General Electric
FBH36TE015RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE015RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

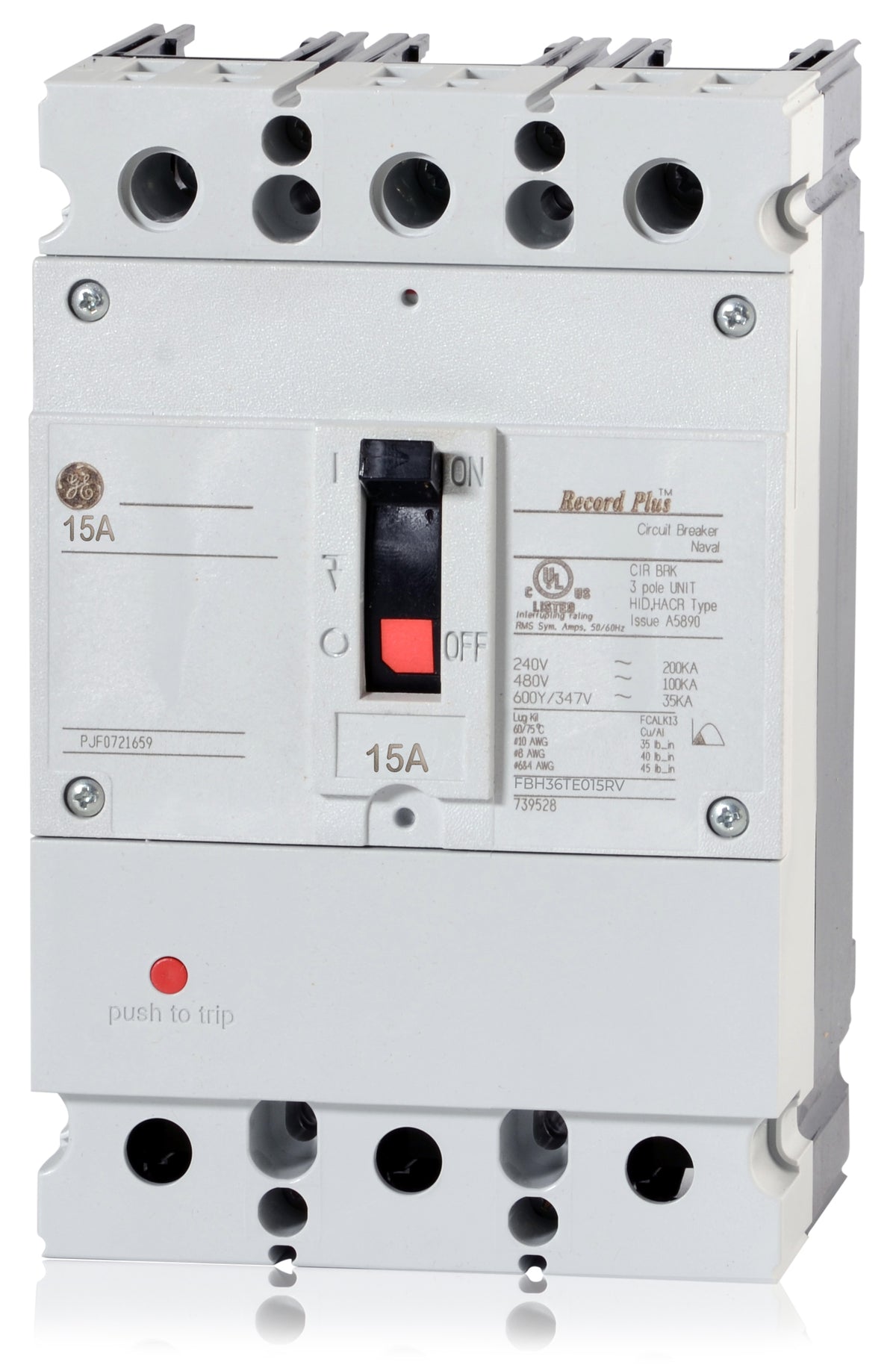

ABB / General Electric FBH36TE015RV - 15A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE030RV
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE050RV
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE060RV
60A 3 Pole Molded Case Circuit Breaker
Description
Part of the Record Plus FBH series, this 15-amp, three-pole molded case circuit breaker provides reliable thermal-magnetic protection for commercial and industrial electrical systems. It installs into GE Type AD panelboards, utilizing a secure bolt-on mounting configuration. Featuring a double-break rotary contact structure, the unit delivers exceptional current-limiting performance with a 100kAIC rating at 480VAC. Includes load side lugs and line side panel connectors for streamlined setup.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE015RV |
| Series | FBH |
| Amperage | 15A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards |
| Wire Gauge | 14-2 AWG (Cu), 12-2 AWG (Al) |
| Max Wire | 2 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Side Lugs Included, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -40C to 75C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Naval Rated, Reverse Feed, Trip-Free Mechanism, Double-Break Rotary Contact Structure |
Product FAQs
4 answersWhich panelboards are compatible with the FBH36TE015RV breaker?
This Record Plus FB-frame breaker is designed specifically for installation in GE Type AD panelboards. It secures directly to the panelboard bus using bolt-on connections.
What wire sizes and materials are supported by the terminal lugs?
The factory-installed lugs accept 14 to 2 AWG copper (Cu) conductors or 12 to 2 AWG aluminum (Al) conductors. Ensure proper torque specifications are applied during termination to prevent overheating.
Why is this breaker branded as both ABB and General Electric?
ABB acquired GE Industrial Solutions in 2018. Record Plus series breakers manufactured after the transition carry the ABB name but retain the exact same physical dimensions, mounting hardware, and electrical specifications as the legacy GE models.
What does the LI trip function indicate on this thermal-magnetic breaker?
The LI code specifies that the breaker provides fixed Long-Time (thermal) overload protection and fixed Instantaneous (magnetic) short-circuit protection. Neither the thermal nor the magnetic trip points are field-adjustable on this specific unit.
