ABB / General Electric FBH36TE020RV Molded Case Circuit Breaker
- 20A
- 3 Pole
- Bolt-On
ABB / General Electric
FBH36TE020RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBH36TE020RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

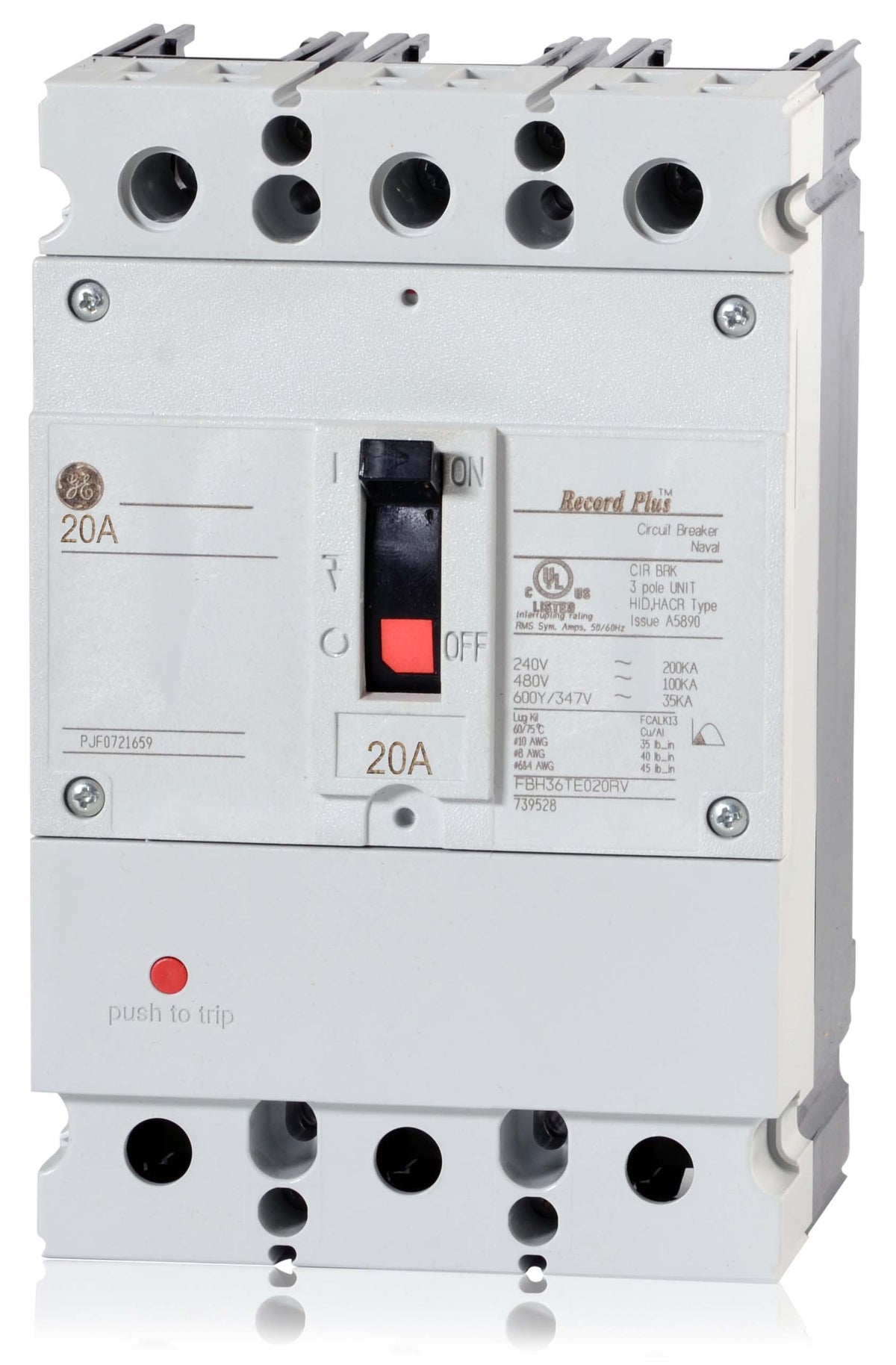

ABB / General Electric FBH36TE020RV - 20A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBH36TE030RV
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE050RV
50A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFBH36TE060RV
60A 3 Pole Molded Case Circuit Breaker
Description
Designed for robust industrial power distribution, this 20-amp, three-pole Record Plus breaker offers advanced current-limiting capabilities. It mounts into GE A-Series AD and AD Plus panelboards using a dependable bolt-on connection. The FBH frame utilizes a double-break rotary contact mechanism to achieve a 100kAIC rating at 480VAC and 85kA at 500VDC. This HACR and Naval rated unit includes necessary line connections and load lugs to facilitate integration into commercial switchgear.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBH36TE020RV |
| Series | FBH |
| Amperage | 20A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 200kA @ 240VAC, 100kA @ 480VAC, 35kA @ 600Y/347VAC, 85kA @ 500VDC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards (Type AD/AD Plus) |
| Wire Gauge | 14-4 AWG |
| Max Wire | 4 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Line Connections for AD Panels, Load Lugs |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL, USCG |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, High Interrupting Capacity, HID Rated |
Product FAQs
6 answersWhat panelboards are compatible with the FBH36TE020RV circuit breaker?
This breaker is designed for installation in GE A-Series panelboards, specifically Type AD and AD Plus models. It secures to the bus using a standard bolt-on connection.
Why might this breaker arrive with either ABB or GE branding?
ABB acquired GE Industrial Solutions in 2018. As a result, Record Plus FB frame breakers like the FBH36TE020RV may feature either ABB or GE labels depending on the production date. The form, fit, and function remain identical regardless of the logo.
Are the trip settings adjustable on the FBH36TE020RV?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) trip functions are factory set and cannot be adjusted in the field.
Can this breaker be used in DC power systems?
Yes, the FBH36TE020RV is rated for DC applications up to 500VDC, where it provides an interrupting capacity of 85kA.
Is the FBH36TE020RV suitable for reverse feed applications?
Yes, this thermal-magnetic molded case circuit breaker is suitable for reverse feed installations.
What wire sizes do the integrated lugs accept?
The factory-installed lugs on this FB frame breaker accept wire gauges ranging from 14 AWG to 4 AWG.
