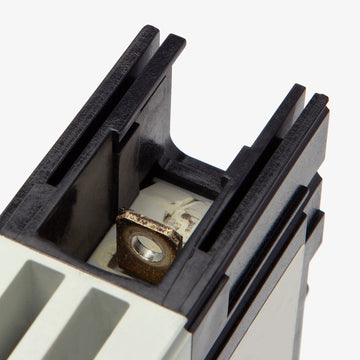

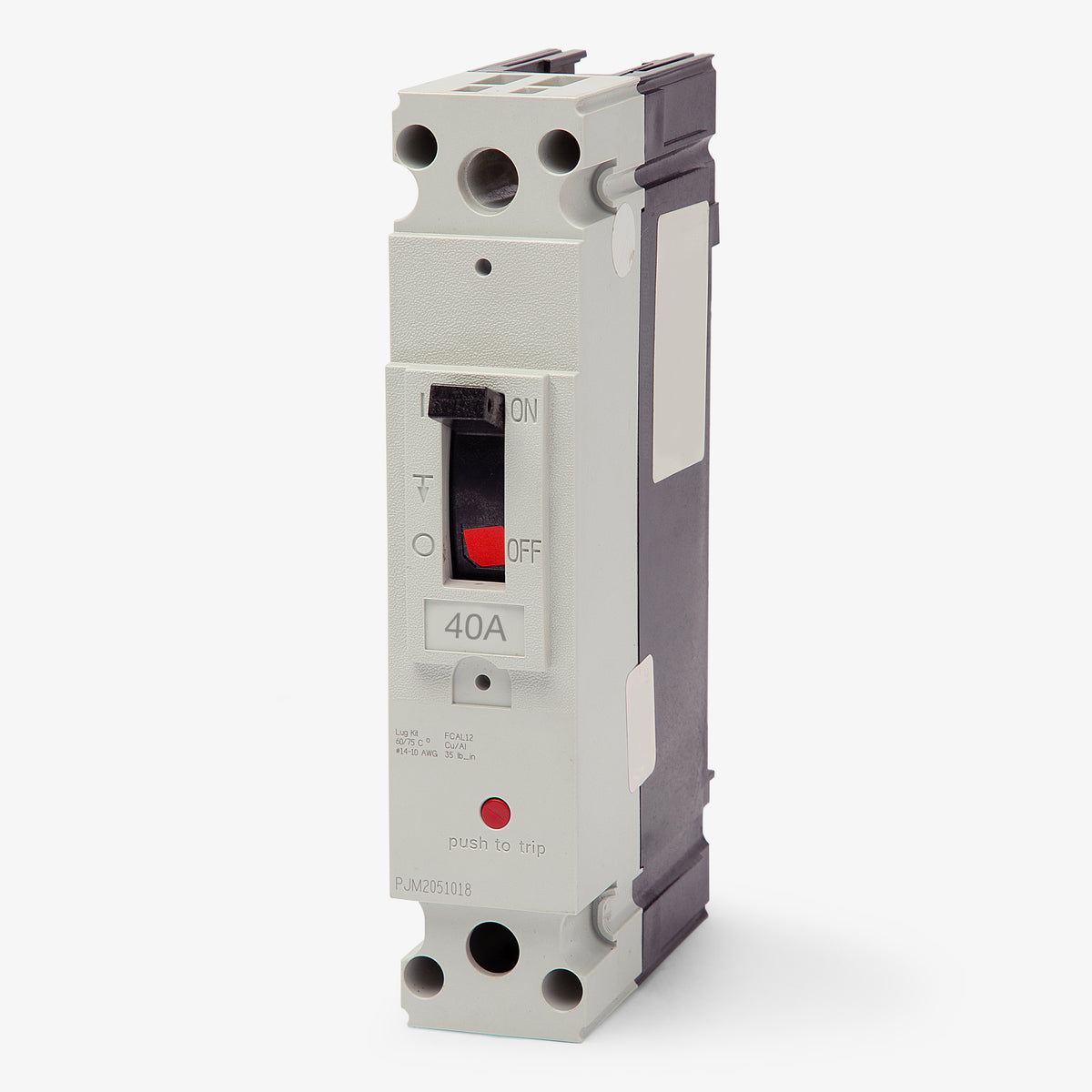

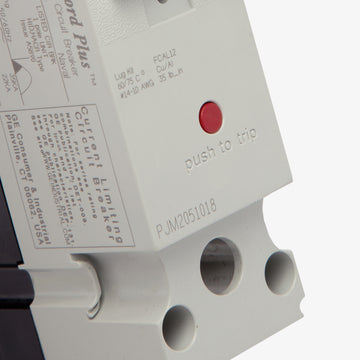

ABB / General Electric FBN16TE040RV Molded Case Circuit Breaker
- 40A
- 1 Pole
- Bolt-On
ABB / General Electric
FBN16TE040RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBN16TE040RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FBN16TE040RV - 40A 1 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBN16TE025RV
25A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN16TE020RV
20A 1 Pole Molded Case Circuit Breaker
ABB / General ElectricFBN16TE015RV
15A 1 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, this 40A Record Plus FBN series breaker provides robust current-limiting performance. It installs into GE Type AD and A-Series panelboards using a secure bolt-on connection and features a double-break rotary contact structure. Serving as a modern substitute for the discontinued TED114040, it maintains a 65kA interrupting capacity at 277VAC. The unit includes fixed thermal-magnetic trip functions and carries a HACR rating for HVAC systems.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBN16TE040RV |
| Series | FBN |
| Amperage | 40A |
| Poles | 1 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 277VAC, 347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 65kA @ 277VAC, 25kA @ 347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Type AD Panelboards, GE A-Series Panelboards |
| Wire Gauge | 10-4 AWG (Cu/Al) |
| Max Wire | 4 AWG |
| Min Wire | 10 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Auxiliary Switch, Bell Alarm, Shunt Trip, Undervoltage Release |
|---|---|
| Accessories | Load Side Lugs, Line Side Panel Connectors |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, HACR, UL |
| Temp Rating | -40C to 80C |
| Construction Features | Current Limiting, HACR Rated, Naval Rated, Double-Break Rotary Contact Structure, Reverse Feed, Trip-Free Mechanism |
Product FAQs
4 answersWhich panelboards are compatible with the FBN16TE040RV circuit breaker?
This bolt-on FB frame breaker is designed for use in GE Type AD panelboards and GE A-Series panelboards. Ensure your specific panel interior accepts Record Plus FB frame breakers before installation.
What are the lug torque specifications for the FBN16TE040RV?
For the factory-installed lugs, torque 10 AWG wire to 35 in-lb, 8 AWG wire to 40 in-lb, and 6 to 4 AWG wire to 45 in-lb. Both copper and aluminum conductors are permitted. Always verify these values against the printed label on the breaker.
What does the LI trip function indicate on this Record Plus breaker?
The LI designation means the breaker includes Long-Time and Instantaneous trip functions. It utilizes a fixed thermal and fixed magnetic trip unit to provide non-adjustable overload and short-circuit protection.
What frame size is the FBN16TE040RV?
This is an FB frame molded case circuit breaker from the ABB / General Electric Record Plus series. The compact FB frame is commonly utilized in commercial and industrial power distribution applications.
