ABB / General Electric FBV26TE015RV Molded Case Circuit Breaker
- 15A
- 2 Pole
- Bolt-On
ABB / General Electric
FBV26TE015RV
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FBV26TE015RV
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

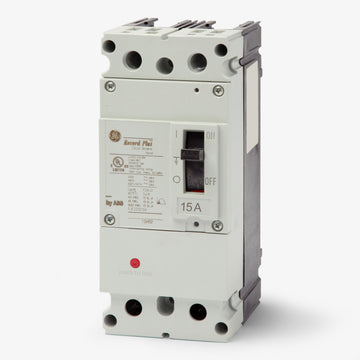

ABB / General Electric FBV26TE015RV - 15A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFBV26TE025RV
25A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE030RV
30A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricFBV26TE035RV
35A 2 Pole Molded Case Circuit Breaker
Description
A reliable solution for commercial facilities, the GE FBV26TE015RV functions as a 15A, two-pole molded case circuit breaker. It operates within the proven Record Plus family. Designed for secure bolt-on installation, this unit fits GE A-Series Type AD panelboards. While the Record Plus line is succeeded by the Tmax XT series, this breaker remains essential for maintaining existing AD panels. It features a high 65kAIC rating at 240V and utilizes a double-break rotary contact structure.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FBV26TE015RV |
| Series | FBV |
| Amperage | 15A |
| Poles | 2 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 480VAC, 600Y/347VAC |
| Phase | 1 |
| AIC Rating | 65kA @ 240VAC, 35kA @ 480VAC, 22kA @ 600Y/347VAC |
| Frame Type | FB |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Type AD Panelboards |
| Wire Gauge | 14-10 AWG (Cu/Al) |
| Max Wire | 10 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm |
|---|---|
| Accessories | Load Lugs, Line Panel Connections |
| Standards | CSA C22.2 No. 5, IEC 60947-2, NEMA AB 1, UL 489 |
| Approval | CE, CSA, UL |
| Temp Rating | -25C to 70C |
| Construction Features | Current Limiting, HACR Rated, Reverse Feed, Naval Rated, Double-Break Rotary Contact Structure |
Product FAQs
8 answersWhat panelboards is the FBV26TE015RV compatible with?
This breaker is designed specifically for GE A-Series Type AD panelboards. The RV suffix in the catalog number indicates it includes the necessary load lugs and line connections for these specific panels.
What does the RV suffix mean in the FBV26TE015RV catalog number?
In the GE Record Plus FB frame series, the RV suffix indicates that the breaker comes factory-equipped with load lugs and line connections designed exclusively for mounting in GE A-Series Type AD panelboards.
What wire sizes and materials are accepted by the terminals on this breaker?
The factory-installed load lugs on this 15A breaker accept 14 AWG to 10 AWG copper or aluminum wire.
Is this breaker suitable for reverse feeding?
Yes, GE Record Plus FB frame breakers like the FBV26TE015RV are suitable for reverse feed applications.
Is the FBV26TE015RV HACR rated for HVAC equipment?
Yes, this breaker is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment that requires this designation.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the FBV26TE015RV features fixed thermal and fixed magnetic trip settings. The Long-Time and Instantaneous trip functions are factory-set and non-user interchangeable.
Why might this breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, Record Plus FB frame breakers may feature either GE or ABB branding, but the physical dimensions, fit, and electrical specifications remain identical.
Does this breaker provide current-limiting protection?
Yes, the GE Record Plus FB frame utilizes a double-break rotary contact structure that provides current-limiting performance to reduce arc flash energy and improve selective coordination within the electrical system.
