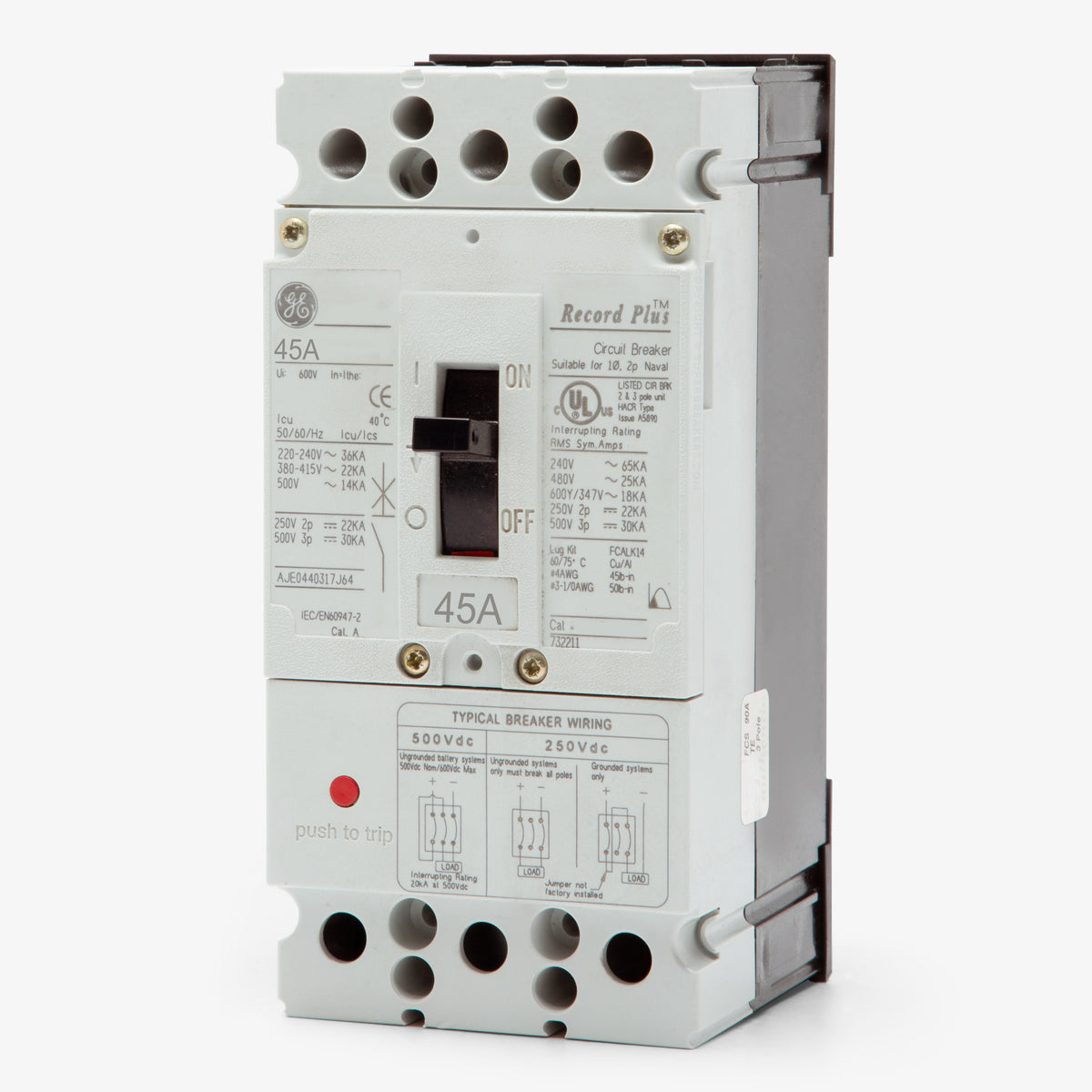

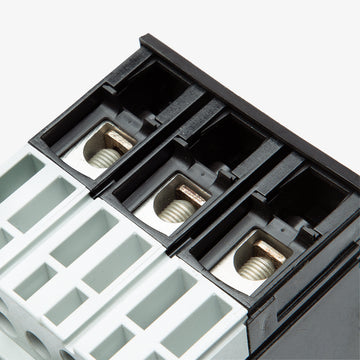

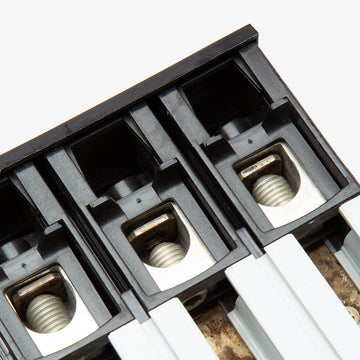

ABB / General Electric FCS36TE045R Molded Case Circuit Breaker
- 45A
- 3 Pole
- Unit Mount
ABB / General Electric
FCS36TE045R
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FCS36TE045R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FCS36TE045R - 45A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFCS36TE030R
30A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE020R
20A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE015R
15A 3 Pole Molded Case Circuit Breaker
Description
Built for commercial applications, the GE FCS36TE045R is a 45A, 3-pole MCCB from the Record Plus FC frame series. It delivers reliable power distribution and circuit protection. Designed for unit mounting, it integrates into GE Record Plus panelboards. For modern replacements, it crosses over to the ABB Tmax XT1 platform (XT1NU3045AFF000XXX). It features a 25kAIC rating at 480VAC and a fixed LI trip unit. This specific configuration is supplied without lugs, requiring separate hardware.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FCS36TE045R |
| Series | FCS |
| Amperage | 45A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Record Plus Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits (FCALK), Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Lugs Not Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, HID, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, HID Rated, Double-Break Rotary Contact Structure |
Product FAQs
6 answersWhat panelboards are compatible with the FCS36TE045R?
This bolt-on circuit breaker is designed specifically for installation in GE Record Plus panelboards and compatible switchboards.
What frame size does the FCS36TE045R belong to?
This breaker is part of the GE Record Plus FC100 frame series, which supports configurations up to 100 amps.
Can the FCS36TE045R be used in direct current (DC) systems?
Yes, it is rated for DC applications up to 500VDC, providing an interrupting capacity of 10kA at that voltage.
Are the thermal and magnetic trip settings adjustable on this breaker?
No, the FCS36TE045R features a fixed thermal-magnetic trip unit. Both the Long-Time (thermal) and Instantaneous (magnetic) protection functions are factory set and cannot be adjusted in the field.
Why might this breaker arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the production batch, Record Plus breakers may carry either GE or ABB branding, but the physical dimensions and technical specifications are identical.
What is the modern ABB equivalent for the FCS36TE045R?
For modern panel upgrades or replacements, this Record Plus breaker crosses over to the ABB Tmax XT1 platform, specifically using catalog number XT1NU3045AFF000XXX.
