ABB / General Electric FCS36TE070R Molded Case Circuit Breaker
- 70A
- 3 Pole
- Unit Mount
ABB / General Electric
FCS36TE070R
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FCS36TE070R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.

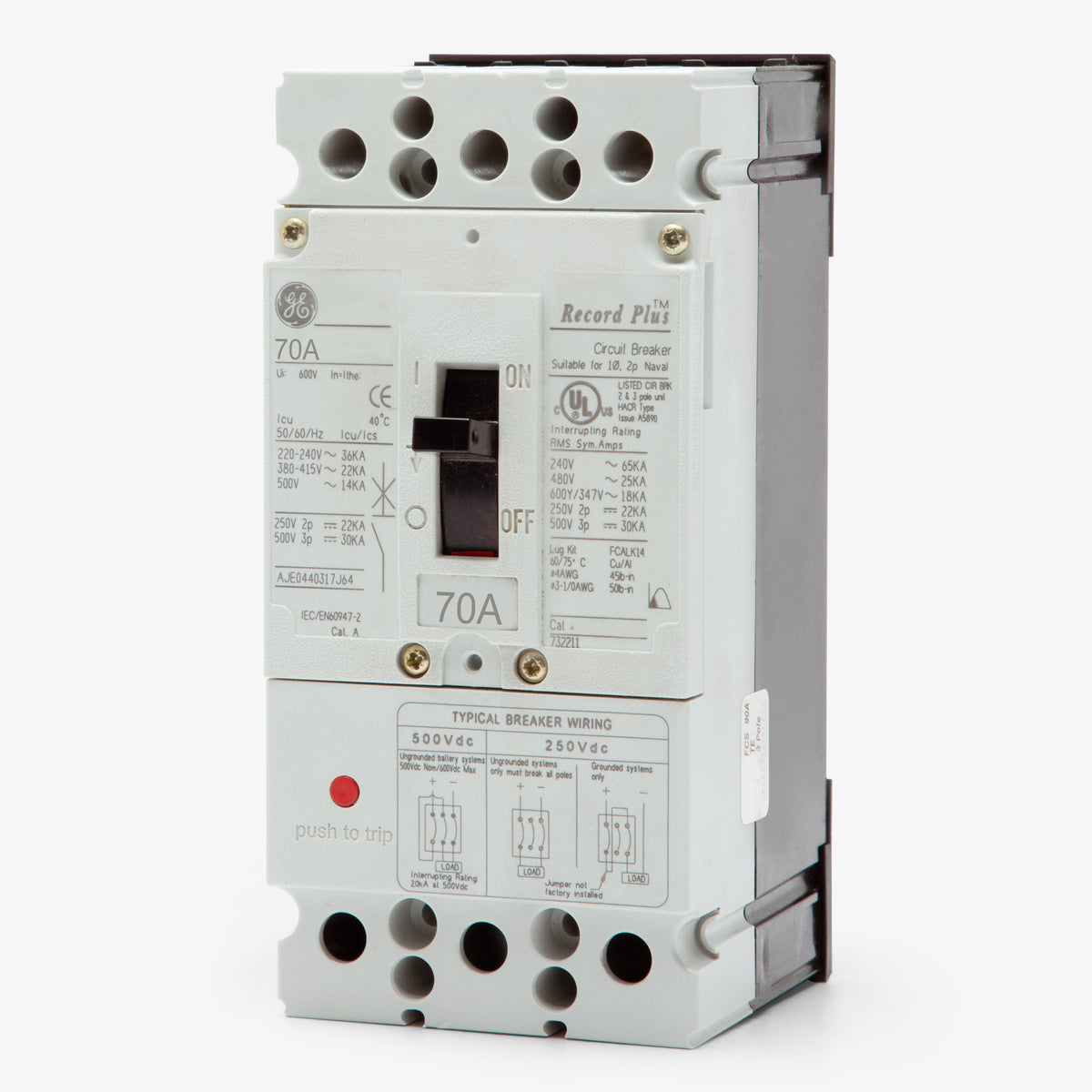

ABB / General Electric FCS36TE070R - 70A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFCS36TE090R
90A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE040R
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE030R
30A 3 Pole Molded Case Circuit Breaker
Description
From the GE Record Plus FCS series, the FCS36TE070R is a 3-pole, 70-amp molded case circuit breaker for commercial and industrial applications. Rated at 65kA at 240VAC, 25kA at 480VAC, and 18kA at 600Y/347VAC, it provides reliable branch circuit protection. The unit mount configuration integrates with Record Plus panelboards and switchboards. Current limiting capability, HACR rating, and double-break rotary contact structure ensure performance and longevity. Replaced by the ABB XT1NU3070AFF000XXX.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FCS36TE070R |
| Series | FCS |
| Amperage | 70A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 500VDC |

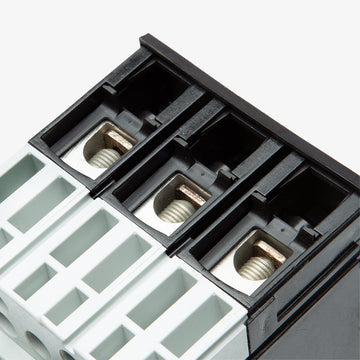

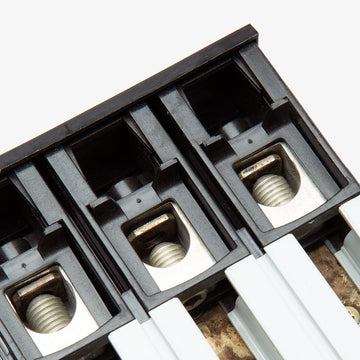

| Terminal Type | Lugs |
|---|---|
| For Use With | GE Record Plus Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits (FCALK), Rotary Handle, Padlock Attachment |
|---|---|
| Accessories | Lugs Not Included, Mounting Hardware |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | Current Limiting, HACR Rated, Double-Break Rotary Contact Structure |
Product FAQs
7 answersDoes the FCS36TE070R come with lugs installed?
The base FCS36TE070R catalog number indicates a breaker with no lugs included. If you need factory-installed lugs, look for catalog number FCS36TE070R1 for both line and load lugs, or FCS36TE070R2 for load lugs only.
What is the direct replacement for the GE FCS36TE070R?
Following ABB acquiring GE Industrial Solutions, the FCS36TE070R is replaced by the ABB Tmax XT1 series, specifically catalog number XT1NU3070AFF000XXX.
Is this 70A Record Plus breaker suitable for HVAC or lighting loads?
Yes, the FCS36TE070R is both HACR rated for heating, air conditioning, and refrigeration equipment, and HID rated for high-intensity discharge lighting applications.
Which panelboards are compatible with the FCS36TE070R?
This unit mount circuit breaker is engineered specifically to fit GE Record Plus panelboards and switchboards.
How does the FCS36TE070R mount into the panel?
It features a bolt-on connection type for secure, unit mount installation within compatible Record Plus distribution equipment.
Does the FCS frame offer current limiting capabilities?
Yes, the FCS36TE070R utilizes an advanced double-break rotary contact structure that provides current-limiting performance to enhance downstream circuit protection.
Are the trip settings adjustable on the FCS36TE070R?
No, this breaker features a thermal magnetic trip unit with fixed long-time and fixed instantaneous (LI) protection functions.
