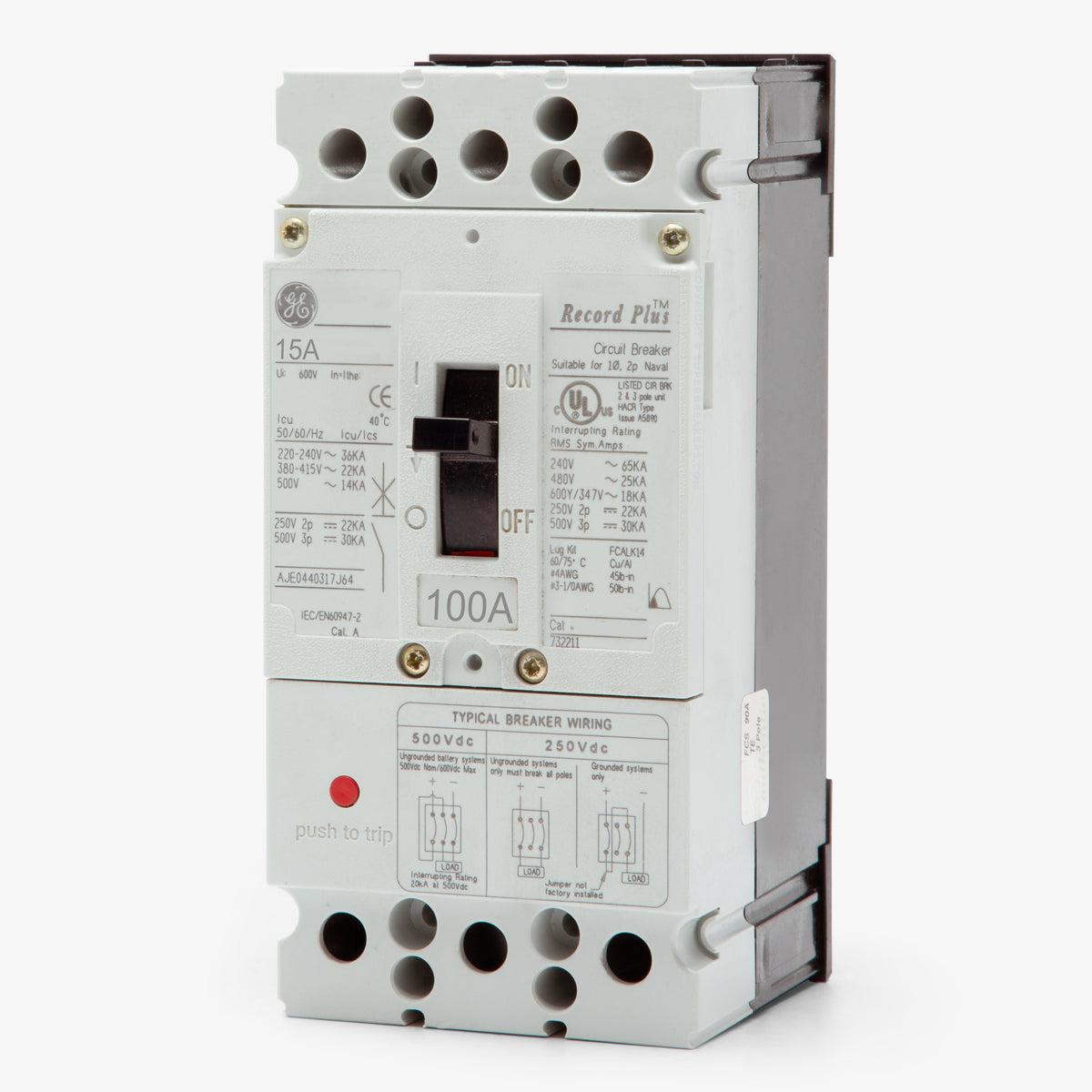

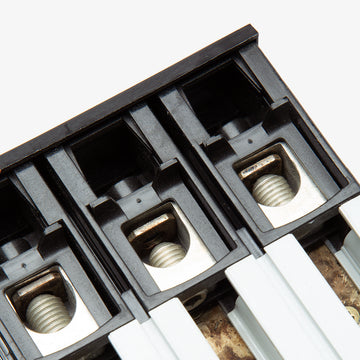

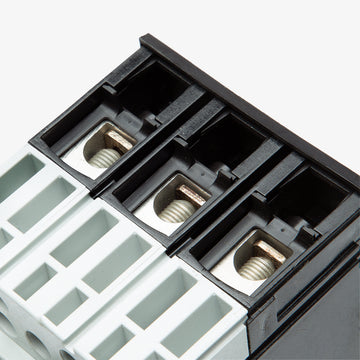

ABB / General Electric FCS36TE100R Molded Case Circuit Breaker
- 100A
- 3 Pole
- Unit Mount
ABB / General Electric
FCS36TE100R
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
FCS36TE100R
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric FCS36TE100R - 100A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricFCS36TE080R
80A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE040R
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricFCS36TE030R
30A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial and industrial applications, the GE FCS36TE100R is a 3-pole, 100A molded case circuit breaker from the Record Plus FCS series. It delivers dependable long-time and instantaneous (LI) protection for demanding electrical systems. This unit-mount breaker is designed for use with GE Record Plus panelboards and switchboards. Rated at 25kAIC at 480VAC, it features a double-break rotary contact structure and is a direct cross-reference for ABB Tmax XT1 upgrades.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | FCS36TE100R |
| Series | FCS |
| Amperage | 100A |
| Poles | 3 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 600Y/347VAC, 500VDC |
| Phase | 3 |
| AIC Rating | 65kA @ 240VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 10kA @ 500VDC |
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Record Plus Panelboards, Switchboards |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Lug Kits, Alarm Switch |
|---|---|
| Accessories | No Lugs Included |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, cULus, HACR, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Double-Break Rotary Contact Structure |
Product FAQs
6 answersWhat equipment is the FCS36TE100R circuit breaker designed for?
This bolt-on molded case circuit breaker is designed for installation in GE Record Plus panelboards and switchboards.
What wire size is accepted by the standard 100A lugs for this breaker?
When fitted with standard 100A GE lug kits, such as the FCALK14, the terminals accept #4 to 1/0 AWG copper or aluminum wire.
What is the difference between the FCS36TE100R, FCS36TE100R1, and FCS36TE100R2?
In the GE Record Plus nomenclature, the suffix indicates the factory lug configuration. The base FCS36TE100R typically comes without lugs. The FCS36TE100R1 includes both line and load lugs, and the FCS36TE100R2 includes load lugs only.
What frame size is the FCS36TE100R built on?
This breaker utilizes the GE Record Plus FC100 frame, which provides a compact 3-inch wide footprint for 3-pole configurations.
Can I adjust the trip settings on the FCS36TE100R?
No, this breaker features a fixed thermal and fixed magnetic trip unit. The long-time and instantaneous (LI) protection settings are factory-calibrated and non-interchangeable.
Can the FCS36TE100R be reverse fed?
Yes, standard GE Record Plus FC100 frame thermal-magnetic circuit breakers are suitable for reverse feed applications.
