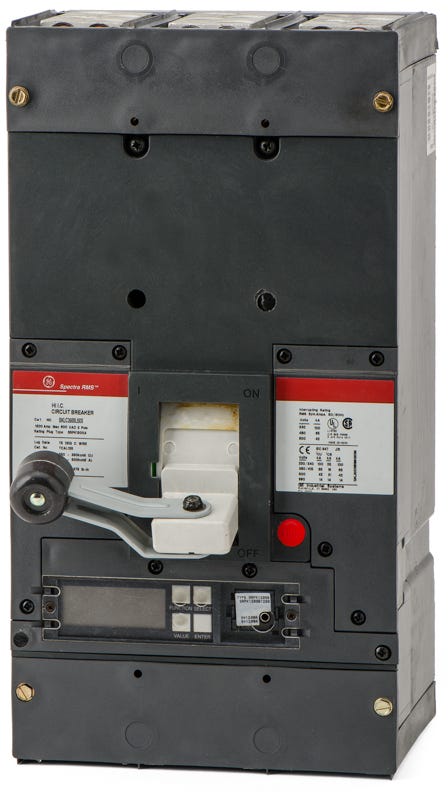

ABB / General Electric SKLC3608L5XX Molded Case Circuit Breaker
- 800A
- 3 Pole
- Bolt-On
ABB / General Electric
SKLC3608L5XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SKLC3608L5XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SKLC3608L5XX - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSKLC3612L7XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLC3612L4XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLA36AT0800
800A 3 Pole Molded Case Circuit Breaker Frame Only
Description
Built for commercial and industrial applications, the GE SKLC3608L5XX is an 800-amp molded case circuit breaker. It features a bolt-on mounting style compatible with GE Spectra Series panelboards, switchboards, and motor control centers. This 3-pole breaker incorporates a microEntelliGuard electronic trip unit with adjustable LSIA functions, delivering 65 kAIC at 480VAC. For future upgrades, it is replaced by the ABB Tmax XT7 when paired with the appropriate retrofit kit.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLC3608L5XX |
| Series | SKLC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Amperage Range | 300-800A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, GE Spectra Series Switchboards, GE Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG - 500 kcmil (Al/Cu) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSIA |
| Trip Function | Long-Time, Short-Time, Instantaneous, Alarm |
| Trip Adjustability | Adjustable |
| Available Options | Lugs, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | No factory-installed accessories |
| Standards | CSA C22.2 No. 5, HACR, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, HACR Rated, Current Limiting, Reverse Feed, True RMS Sensing, Interchangeable Trip Unit |
Product FAQs
6 answersWhat enclosures and equipment are compatible with the SKLC3608L5XX?
This SK frame breaker is designed for direct bolt-on installation in General Electric Spectra Series panelboards, switchboards, and motor control centers.
What protection functions does the microEntelliGuard trip unit provide on this model?
The microEntelliGuard is an advanced electronic trip unit that provides adjustable long-time, short-time, and instantaneous protection. It also features a backlit LCD display, true RMS current sensing, and basic metering capabilities for system monitoring.
How are the trip settings adjusted on the microEntelliGuard unit?
The trip unit features a backlit LCD display and a tactile keypad on the front of the breaker, allowing users to select functions and adjust the long-time, short-time, and instantaneous set points directly.
Can the SKLC3608L5XX be reverse fed?
Yes, GE Spectra RMS circuit breakers are suitable for reverse feed applications. They have no line or load markings, allowing incoming power cables or busbars to be connected to either the upper or lower terminals.
Is this breaker branded as General Electric or ABB?
ABB acquired GE Industrial Solutions in 2018. You may receive this Spectra RMS SK frame breaker with either General Electric or ABB branding, but the physical dimensions, footprint, and SKLC3608L5XX catalog number remain identical.
Does this breaker mount on a standard DIN rail?
No, this is a bolt-on molded case circuit breaker designed for direct bus connection within compatible Spectra Series enclosures. It is not designed for DIN rail mounting.
