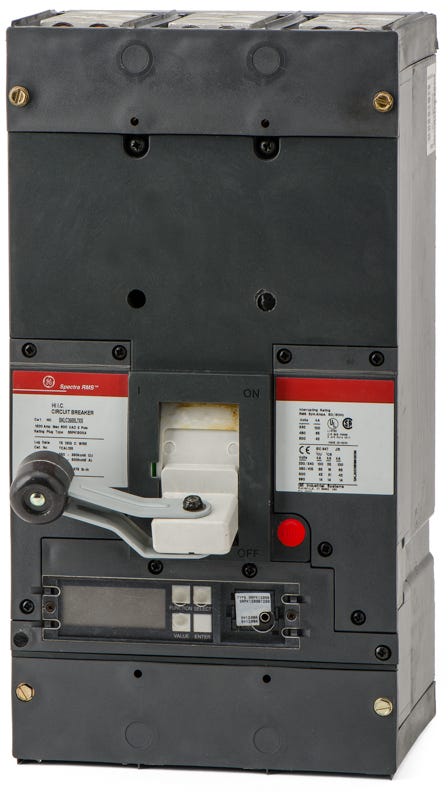

ABB / General Electric SKLC3608L7XX Molded Case Circuit Breaker
- 800A
- 3 Pole
- Bolt-On
ABB / General Electric
SKLC3608L7XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SKLC3608L7XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SKLC3608L7XX - 800A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSKLC3612L5XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLC3612L7XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLA36AT0800
800A 3 Pole Molded Case Circuit Breaker Frame Only
Description
Engineered for commercial and industrial power systems, this 800A three-phase breaker utilizes a microEntelliGuard digital trip unit. It delivers precise long-time, short-time, and instantaneous protection alongside control power capabilities. The bolt-on frame installs into GE Spectra Series panelboards, switchboards, and motor control centers. For modern upgrades, this legacy SK frame footprint transitions to the ABB Tmax XT7 series using a retrofit kit. Rated for 65 kAIC at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLC3608L7XX |
| Series | SKLC |
| Amperage | 800A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Amperage Range | 400-800A |
|---|
| Terminal Type | Lugs |
|---|---|
| For Use With | GE Spectra Series Panelboards, GE Spectra Series Switchboards, GE Motor Control Centers |
| Wire Gauge | (3) 3/0 AWG-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 3/0 AWG |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Bell Alarm, Lug Kits, Rating Plugs, Padlock Attachment |
|---|---|
| Accessories | microEntelliGuard Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Current Limiting, True RMS Sensing, Interchangeable Trip Unit, Control Power |
Product FAQs
6 answersWhich panelboards and switchboards are compatible with the SKLC3608L7XX?
This SK-frame breaker is designed for bolt-on installation in GE Spectra Series Panelboards, GE Spectra Series Switchboards, and GE Motor Control Centers.
What wire sizes do the lugs on this breaker accept?
The included terminals accommodate three 3/0 AWG to 500 kcmil copper (Cu) or aluminum (Al) conductors per phase.
What protection functions does the microEntelliGuard trip unit provide?
The LSI-CP electronic trip unit features adjustable Long-Time, Short-Time, and Instantaneous trip functions, alongside basic metering communication and circuit protection capabilities.
Why is this breaker branded as both ABB and General Electric?
Following ABB's acquisition of GE Industrial Solutions, legacy GE Spectra Series breakers may carry either ABB or GE branding depending on the production date. The physical dimensions, fit, and technical specifications remain identical.
Can the SKLC3608L7XX be used in reverse-feed applications?
Yes, GE Spectra RMS circuit breakers are suitable for reverse-feed installations. Incoming power cables or busbars can be connected to either the upper or lower terminals without affecting performance.
How is the continuous current rating established on this breaker?
The microEntelliGuard trip unit utilizes an interchangeable rating plug to establish or change the maximum continuous current rating of the breaker frame.
