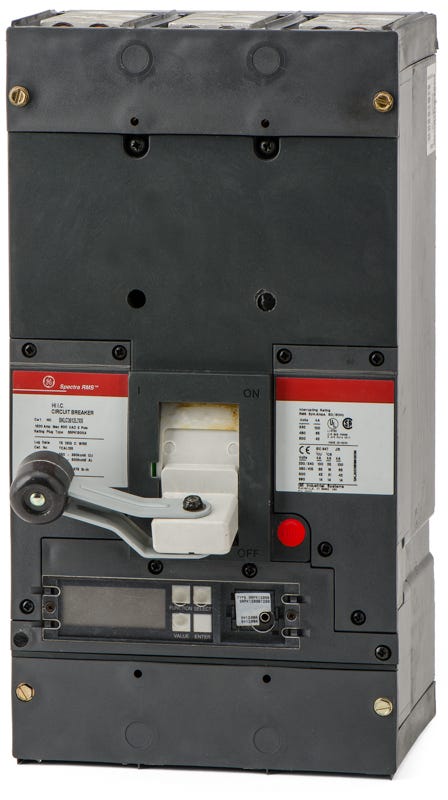

ABB / General Electric SKLC3612L7XX Molded Case Circuit Breaker
- 1200A
- 3 Pole
- Bolt-On
ABB / General Electric
SKLC3612L7XX
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
SKLC3612L7XX
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric SKLC3612L7XX - 1200A 3 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricSKLC3612L4XX
1200A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricSKLB36BB1200
1200A 3 Pole Molded Case Circuit Breaker-Frame Only
ABB / General ElectricSKLB36BC1200
1200A 3 Pole Molded Case Circuit Breaker
Description
A powerful solution for commercial facilities, the GE SKLC3612L7XX delivers 1200A of 3-pole protection within the Spectra RMS family. It is designed to bolt into GE Spectra Series panelboards, with the ABB Tmax XT7 serving as its modern replacement. This unit stands out with its microEntelliGuard electronic trip unit, providing adjustable LSI protection alongside Control Power (LSI-CP) for advanced metering. It delivers a solid 65kAIC interrupting capacity at 480VAC.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | SKLC3612L7XX |
| Series | SKLC |
| Amperage | 1200A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 120VAC, 240VAC, 277VAC, 480VAC, 600VAC, 120/240VAC |
| Phase | 3 |
| AIC Rating | 100kA @ 120VAC, 100kA @ 240VAC, 65kA @ 277VAC, 65kA @ 480VAC, 42kA @ 600VAC, 100kA @ 120/240VAC |
| Amperage Range | 600-1200A |
|---|
| Frame Type | SKLC |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE Spectra Series Panelboards, GE Spectra Series Switchboards, GE Motor Control Centers |
| Wire Gauge | (4) 250-500 kcmil (Cu/Al) |
| Max Wire | 500 kcmil |
| Min Wire | 250 kcmil |
| Trip Technology | Electronic Trip |
|---|---|
| Trip Function Code | LSI |
| Trip Function | Long-Time, Short-Time, Instantaneous |
| Trip Adjustability | Adjustable |
| Available Options | Lugs, Rating Plugs, Shunt Trip, Auxiliary Switch, Bell Alarm, Undervoltage Release, Padlock Attachment |
|---|---|
| Accessories | microEntelliGuard Trip Unit |
| Standards | CSA C22.2 No. 5, IEC 60947-2, UL 489 |
| Approval | CE, CSA, IEC, UL |
| Temp Rating | 40C |
| Construction Features | 100% Rated, HACR Rated, Current Limiting, Reverse Feed, True RMS Sensing, Interchangeable Trip Unit |
Product FAQs
5 answersWhy might my SKLC3612L7XX breaker arrive with ABB branding instead of GE?
ABB acquired GE Industrial Solutions in 2018. As a result, Spectra RMS breakers like the SKLC3612L7XX may feature either ABB or GE branding depending on the manufacturing date. Both versions are identical in form, fit, and function.
Does the SKLC3612L7XX require a rating plug to operate?
Yes, all GE Spectra RMS circuit breakers require a rating plug to establish the continuous ampere rating. For this 1200A SK frame breaker, you will need an SRPK1200A series rating plug, such as the SRPK1200A1200. The rating plug installs directly into the front of the trip unit.
What does the L7XX in the SKLC3612L7XX catalog number indicate?
The L7XX suffix designates that the breaker is equipped with a microEntelliGuard electronic trip unit featuring LSI-CP functions. This provides adjustable Long-Time, Short-Time, and Instantaneous protection, along with Control Power capabilities for advanced metering.
What is the modern replacement for the legacy SKLC3612L7XX breaker?
For new installations or complete panel upgrades, the ABB Tmax XT7 series serves as the modern equivalent to the legacy GE Spectra SK frame. Upgrading an existing Spectra panelboard to the XT7 requires a specific ABB retrofit kit.
Can the SKLC3612L7XX be reverse fed?
Yes, GE Spectra RMS SK1200 line breakers, including the SKLC3612L7XX, are suitable for reverse feed applications per UL File E11592.
