ABB / General Electric TEB132025 Molded Case Circuit Breaker
- 25A
- 3 Pole
- Bolt-On
ABB / General Electric
TEB132025
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TEB132025
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TEB132025 - 25A 3 Pole Molded Case Circuit Breaker
Re-Certified
Quantity
Similar Items
ABB / General ElectricTEB132040
40A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132045
45A 3 Pole Molded Case Circuit Breaker
ABB / General ElectricTEB132025WL
25A 3 Pole Molded Case Circuit Breaker
Description
Engineered for commercial applications, this 25-amp E-frame molded case circuit breaker delivers consistent thermal-magnetic protection. It features fixed long-time and instantaneous trip functions. Designed for GE A-Series panelboards, the bolt-on mounting provides a robust connection. This unit serves as an exact replacement for the legacy TE132025, maintaining identical footprint specifications. Rated for 10kA interrupting capacity at 240VAC, it includes factory-installed lugs.Specifications
| Brand | ABB / General Electric |
|---|---|
| Series | TEB |
| Amperage | 25A |
| Poles | 3 |
| Mounting Style | Bolt-On |
| Voltage | 240VAC, 250VDC |
| Phase | 3 |
| AIC Rating | 10kA @ 240VAC, 10kA @ 250VDC |
| Frame Type | E150 |
|---|---|
| Terminal Type | Lugs |
| For Use With | GE A-Series Panelboards |
| Wire Gauge | 14-8 AWG (Cu/Al) |
| Max Wire | 8 AWG |
| Min Wire | 14 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Lugs |
| Standards | NEMA AB-1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Common Trip, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
8 answersWhat panelboards are compatible with the TEB132025?
This breaker is designed for use in GE A-Series panelboards. It fits standard E-frame spaces in these distribution panels.
What is the difference between the GE TEB132025, TED134025, and THED134025?
These breakers share the same physical E150 frame and mount into the same panelboards, but they differ in interrupting capacity and maximum voltage. The TEB series is the standard tier (10kAIC at 240V), the TED is mid-tier (18kAIC at 480V), and the THED is high-tier (65kAIC at 240V). Always verify your system's available fault current before substituting.
Can the TEB132025 be used in DC circuits?
Yes, this breaker is rated for up to 250VDC with a 10kA interrupting capacity, making it suitable for direct current applications as well as standard AC systems.
Do I need to purchase separate lugs for the TEB132025?

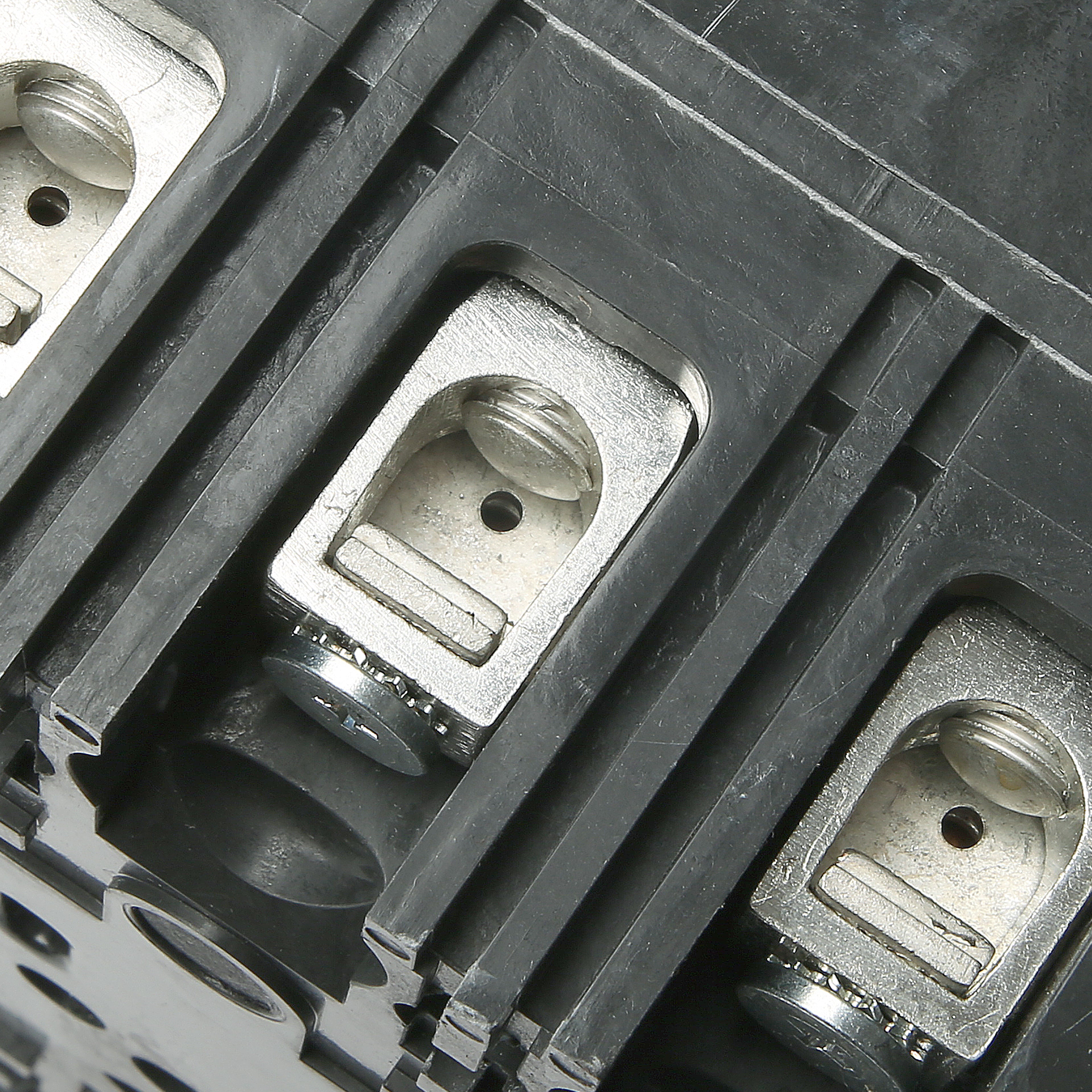

No, this breaker comes with factory-installed lugs that accept 14 AWG to 8 AWG copper or aluminum (Cu/Al) wire.
Are the trip settings on the TEB132025 adjustable?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time (overload) and instantaneous (short-circuit) protection levels are factory-set and cannot be modified in the field.
Can the TEB132025 be mounted on a DIN rail?

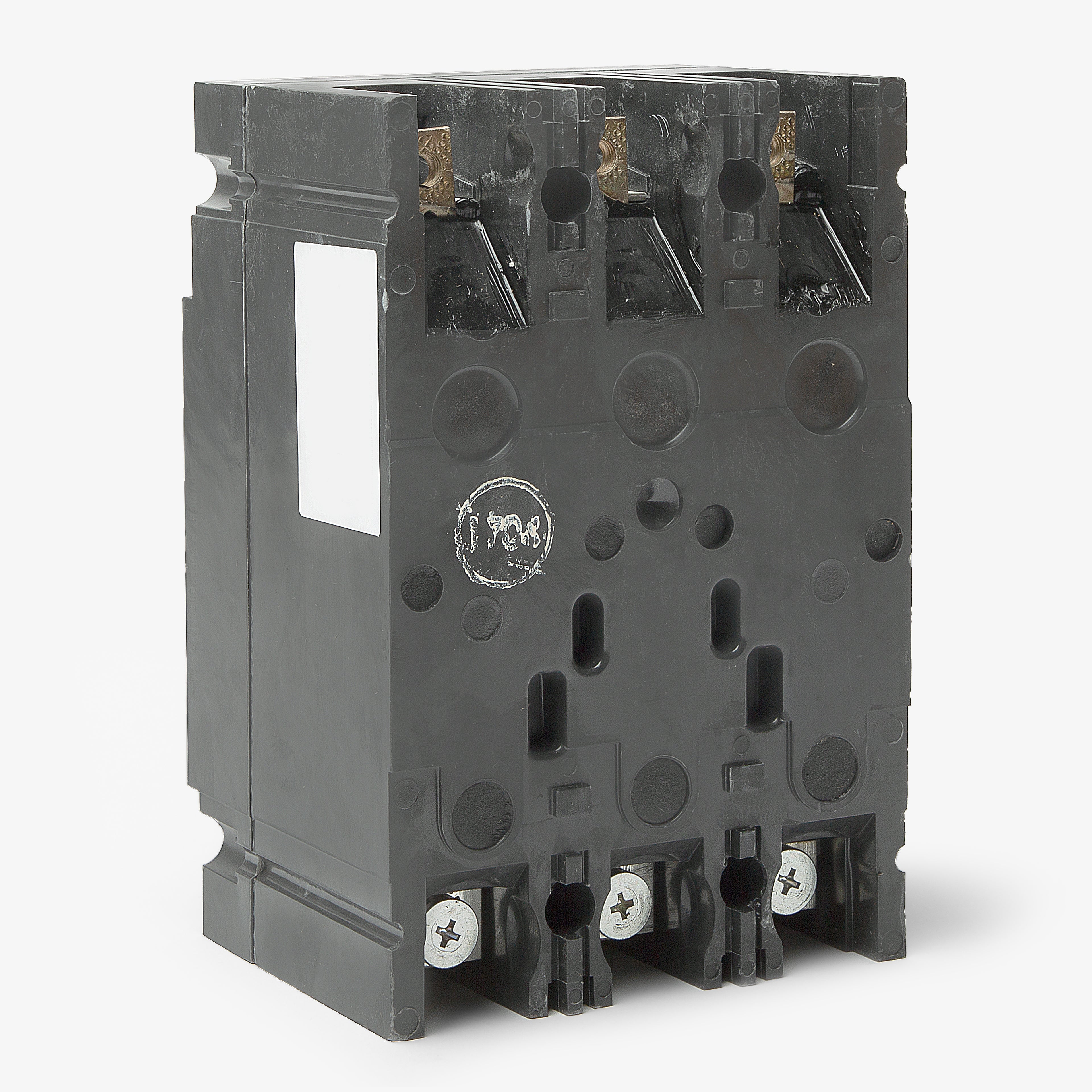

No, this is a bolt-on circuit breaker designed specifically to bolt directly to the busbars of compatible GE panelboards. It is not designed for DIN rail or plug-on load center mounting.
Is the TEB132025 suitable for reverse feed applications?
Yes, GE E150 frame breakers, including the TEB, TED, and THED series, are suitable for reverse feed applications.
Is the TEB132025 HACR rated?
Yes, this 25-amp breaker is UL listed as an HACR type, meaning it is approved for use with heating, air conditioning, and refrigeration equipment.
