ABB / General Electric TED124090WL Molded Case Circuit Breaker
- 90A
- 2 Pole
- Unit Mount
ABB / General Electric
TED124090WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124090WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED124090WL - 90A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items

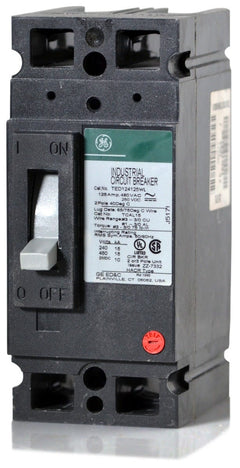

ABB / General ElectricTED124125WL
125A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124030WL
30A 2 Pole Molded Case Circuit Breaker
Description
Belonging to the E150 frame family, the GE TED124090WL is a 2-pole, 90A molded case circuit breaker for industrial applications. It utilizes a unit mount design with factory-installed line and load lugs. This breaker is engineered for individual enclosures, switchboards, and motor control centers. For facilities upgrading infrastructure, it is replaced by the Tmax XT1 series, which requires mounting modifications.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124090WL |
| Series | TED |
| Amperage | 90A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 14-3 AWG (Cu), 12-1/0 AWG (Al) |
| Max Wire | 3 AWG (Cu), 1/0 AWG (Al) |
| Min Wire | 14 AWG (Cu), 12 AWG (Al) |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Padlock Attachment |
|---|---|
| Accessories | Line and Load Lugs |
| Standards | CSA C22.2 No. 5, NEMA AB 1, UL 489 |
| Approval | CSA, HACR, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Reverse Feed, Non-Interchangeable Trip, Common Trip, Quick-Make/Quick-Break, Trip-Free Mechanism |
Product FAQs
6 answersWhat does the WL suffix mean in the TED124090WL catalog number?
The WL suffix indicates that the circuit breaker comes equipped with factory-installed copper/aluminum (Cu/Al) line and load lugs.
Why might the TED124090WL arrive with ABB branding instead of General Electric?
ABB acquired GE Industrial Solutions in 2018. Depending on the manufacturing date, E150 line breakers may feature either ABB or GE branding, but the physical dimensions, fit, and technical specifications remain identical.
Is the TED124090WL suitable for reverse feed applications?
Yes, GE TED series molded case circuit breakers are suitable for reverse feed installations.
Is this circuit breaker HACR rated?
Yes, the TED124090WL is HACR rated, making it suitable for use with heating, air conditioning, and refrigeration equipment branch circuits.
What is the modern replacement for the legacy TED124090WL breaker?
For facilities upgrading their electrical infrastructure, the legacy GE TED series is typically replaced by the ABB Tmax XT1 series. Note that upgrading to the XT1 series will require mounting modifications.
Can the trip settings be adjusted on the TED124090WL?
No, this breaker features a fixed thermal-magnetic trip unit. The long-time and instantaneous (LI) protection settings are factory-set and non-interchangeable.
