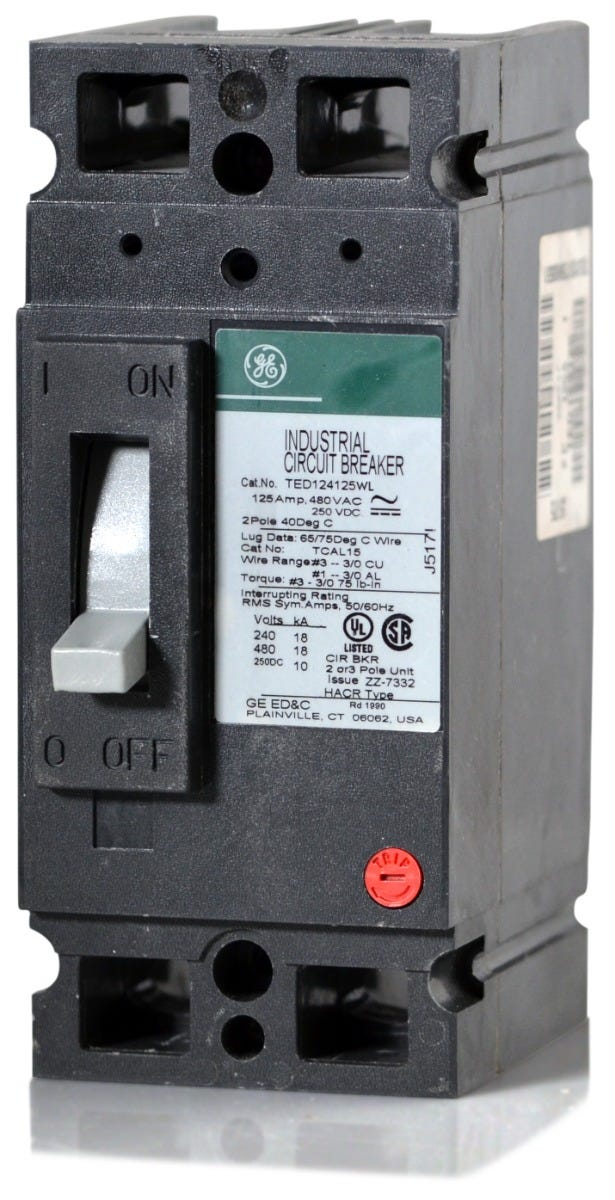

ABB / General Electric TED124125WL Molded Case Circuit Breaker
- 125A
- 2 Pole
- Unit Mount
ABB / General Electric
TED124125WL
Molded Case Circuit Breaker
Brand
ABB / General Electric
SKU
TED124125WL
Quantity
Shop with Confidence
Add an extra year of protection in your cart.
ABB / General Electric TED124125WL - 125A 2 Pole Molded Case Circuit Breaker
New
Quantity
Similar Items
ABB / General ElectricTED124150WL
150A 2 Pole Molded Case Circuit Breaker
ABB / General ElectricTED124030WL
30A 2 Pole Molded Case Circuit Breaker
Description
Engineered for industrial use, the GE TED124125WL is a 125A, 2-pole E150-frame MCCB. It provides fixed thermal-magnetic trip functions (LI) to protect against overloads and short circuits. This unit-mount breaker installs into switchboards and motor control centers. The "WL" suffix denotes factory-installed TCAL15 lugs. It can be upgraded to the Tmax XT1 via retrofit kit. Rated 18kAIC at 480VAC, this HACR-rated breaker features reverse feed capability and a non-interchangeable trip.Specifications
| Brand | ABB / General Electric |
|---|---|
| Part Number | TED124125WL |
| Series | TED |
| Amperage | 125A |
| Poles | 2 |
| Mounting Style | Unit Mount |
| Voltage | 240VAC, 480VAC, 250VDC |
| Phase | 1 |
| AIC Rating | 18kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC |
| Frame Type | TED |
|---|---|
| Terminal Type | Lugs |
| For Use With | Individual Enclosures, Switchboards, Motor Control Centers |
| Wire Gauge | 3 AWG-3/0 AWG (Cu/Al) |
| Max Wire | 3/0 AWG |
| Min Wire | 3 AWG |
| Trip Technology | Thermal Magnetic |
|---|---|
| Trip Function Code | LI |
| Trip Function | Long-Time, Instantaneous |
| Trip Adjustability | Fixed Thermal, Fixed Magnetic |
| Available Options | Shunt Trip, Auxiliary Switch, Undervoltage Release, Alarm Switch, Lug Kits |
|---|---|
| Accessories | Line and Load Lugs (TCAL15) |
| Standards | HACR, UL 489, CSA C22.2 No. 5 |
| Approval | CSA, UL |
| Temp Rating | 40C |
| Construction Features | HACR Rated, Non-Interchangeable Trip, Reverse Feed |
Product FAQs
4 answersWhat does the WL suffix mean in the TED124125WL catalog number?
The WL suffix indicates that the breaker is factory-equipped with copper/aluminum (Cu/Al) line and load lugs.
Can the GE TED124125WL be reverse fed?
Yes, GE TED series thermal magnetic breakers are suitable for reverse feed applications. They do not have restricted line and load orientation requirements.
What is the difference between GE TED and THED circuit breakers?
The primary difference is the interrupting capacity. TED breakers are standard-interrupting (18kAIC at 480VAC), while THED breakers offer a higher interrupting rating (25kAIC at 480VAC). Both share the same physical E150 frame footprint and are physically interchangeable if the available fault current permits.
Is the TED124125WL HACR rated?
Yes, this breaker is UL listed as HACR type, making it suitable for use with heating, air conditioning, and refrigeration equipment.
